In. weedwacker, Trimmer, Electric – Craftsman 172.74544 User Manual
Page 25: Item no. parts no. part description qty
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

12-in.
Weedwacker®
Electric
Trimmer
Model No. 172.74544
The model number wi
be found on the nameplate
of the Trimmer.
Always mention the
model number when
requesting parts and
service for your tool.
120V~60H^
4^
IzQV Winnq scheme

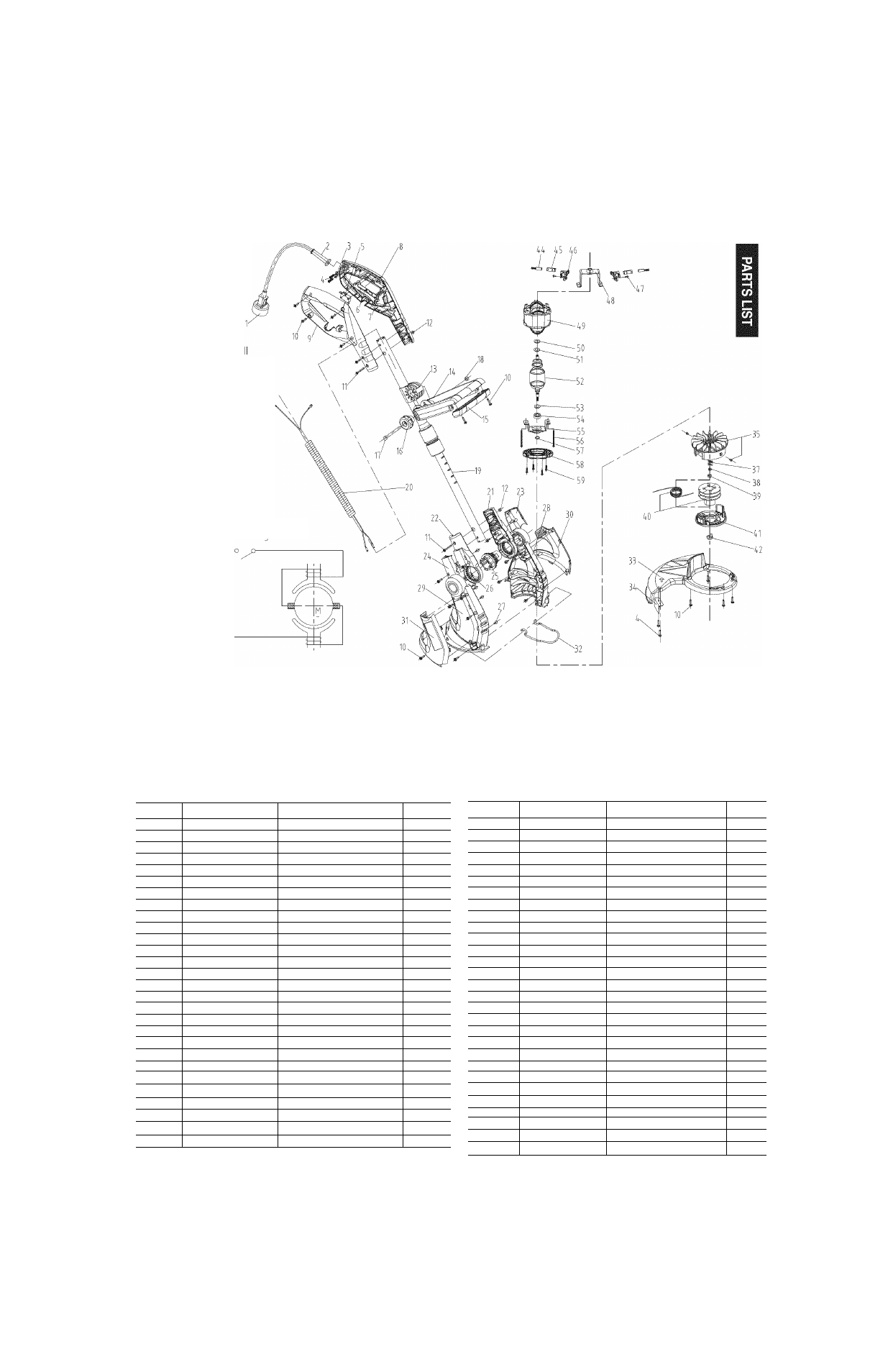

12-in. Weedwacker® Electric Trimmer
The model number win be found on the nameplate
of the Trimmer. Always mention the model number when
Model No. 172.74544
requesting parts and service for your tool.
Item No.
Parts No.
Part Description
Qty.
1
GGT4501U-1
Cable Assembly
1
2
GGT4501 U-2
Insulation Sheath
1
3
GGT4501 U-3
Press Plate
1
4
GGT4501 U-4
Self Tapping Screw(ST3.9x13)
4
5
GGT4501 U-5
Switch
1
6
GGT4501 U-6
Switch Button
1
7
GGT4501 U-7
Spring 0.8X8.8X23
1
8
GGT4501 U-8
Left Handle
1
9
GGT4501 U-9
Right Handle
1
10
GGT4501U-10
Self Tapping Screw(ST3.9x16)
24
11
GGT4501U-11
Screw (M4X32)
2
12
GGT4501U-12
Nut 4
2
13
GGT4501U-13
Tighten Collar
1
14
GGT4501U-14
Steady Handle Supper
1
15
GGT4501U-15
Steady Handle Cover
1
16
GGT4501U-16
Pivot Release Lever
1
17
GGT4501U-17
Stud M6X65
1
18
GGT4501U-18
Nuts
1
19
GGT4501U-19
Telescope Tube
1
20
GGT4501 U-20
Spring line
1
21
GGT4501 U-21
Swivel Shell Loc
1
22
GGT4501 U-22
Swivel Cover Shell
1
23
GGT4501 U-23
Swivel Shell Loc husk
1
24
GGT4501 U-24
Swivel Cover Shell husk
1
25
GGT4501 U-25
Lock Button
1
26
GGT4501 U-26
spring
1
27
GGT4501 U-27
Self Tapping Screw(ST2.9x16)
10
28
GGT4501 U-28
Left Housing
1
item No.
Parts No.
Part Description
Qty.
29
GGT4501 U-29
Right Housing
1
30
GGT4501 U-30
Left Housing husk
1
31
GGT4501U-31
Right Housing husk
1
32
GGT4501 U-32
Edging Space
1
33
GGT4501 U-33
Guard
1
34
GGT4501 U-34
Cutting Biade
1
35
GGT4501 U-35
Cuting Head&Rivet
1
37
GGT4501 U-37
spring 1X13X29.5
1
38
GGT4501 U-38
B-1 Nut 6
1
39
GGT4501 U-39
Insulation Cap
1
40
GGT4501 U-40
Winding Spooi&Cutting Line
1
41
GGT4501 U-41
Bottom Cover
1
42
GGT4501 U-42
Winding Spool decorate Cover
1
44
GGT4501 U-44
Carbon Brush
2
45
GGT4501 U-45
Brush Holder
2
46
GGT4501 U-46
Brush Holder Assmeblv
2
47
GGT4501 U-47
Rivet
1
48
GGT4501 U-48
Rear Bracket
1
49
GGT4501 U-49
Stator (120 V)
1
50
GGT4501 U-50
Washer(—)
1
51
GGT4501 U-51
Washer(E)
2
52
GGT4501 U-52
Armature(120V)
1
53
GGT4501 U-53
Washer)—)
2
54
GGT4501 U-54
Bearing 608Z
1
55
GGT4501 U-55
Front Bracket
1
56
GGT4501 U-56
Stud M4X40
2
57
GGT4501 U-57
Washer by Axis
1
58
GGT4501 U-58
Fixing Block
1
59
GGT4501 U-59
metal Self Tapping Screw(ST3x1C
) 4
