Page 8: Install chain and cable

Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

Assembly

STEP 4

Install Chain and Cable

Master

Link

Clip-On

Spring

Cable

Loop

Flat End

Trolley

Shall

NOT REMOVE CHAIN AND CABLE FROM DIS-^

PENSER CARTON.

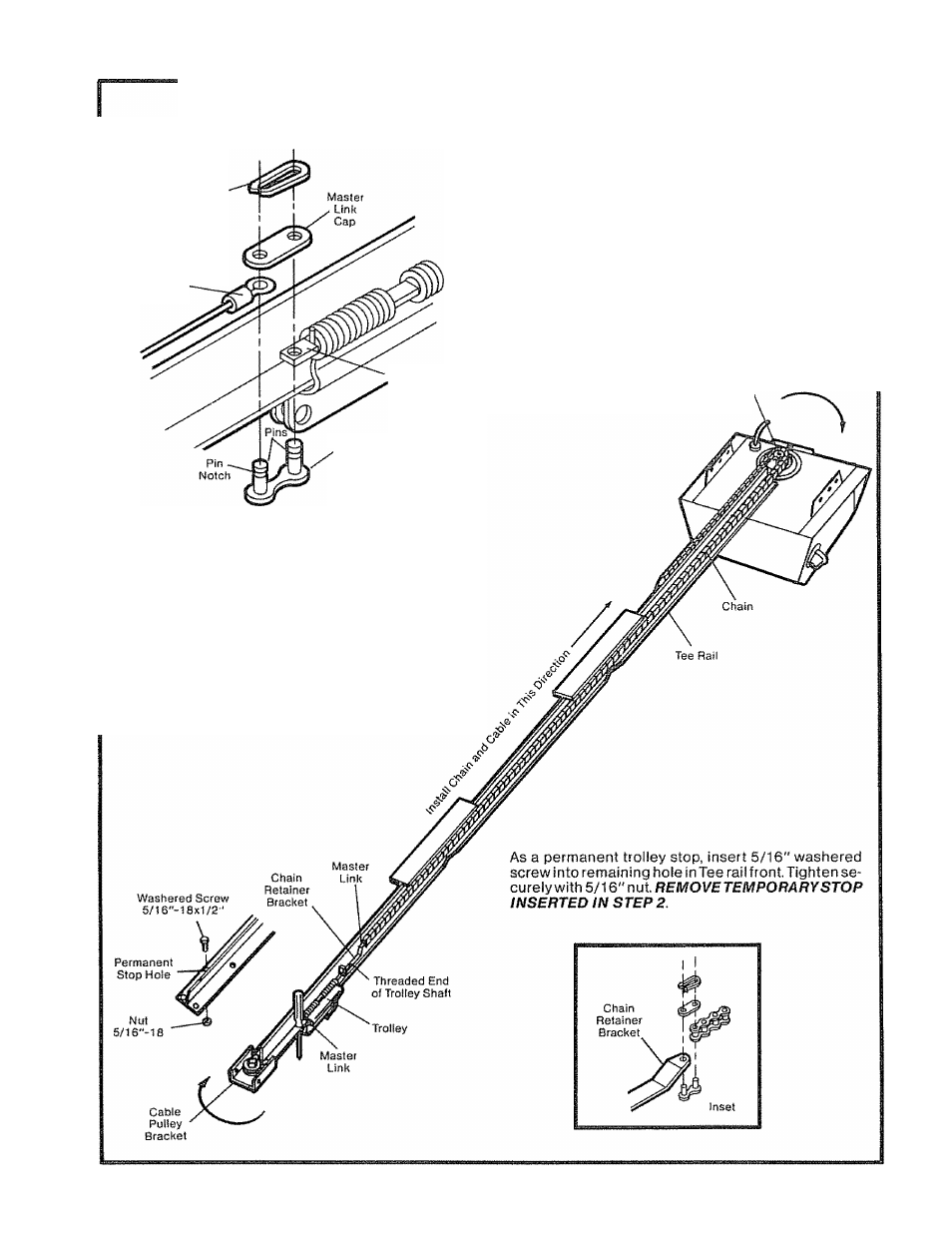

Detach cable from side of car ton and fasten to tr olley

with a master link from coin envelope,

MASTER LINK PROCEDURE: Push pins of master
link bar through loop of cable and hole in flat end of
trolley shaft Push cap onto pins and into notches
Slide clip-on spring over cap and into pin notches
until both pins are locked in place.

opener Chassis

Sprocket'

Ivl aster

Link

Outside

Bar

CAUTION: Keep chain taut while dispensing from

carton to help prevent kinking.

Slide trolley tight against screwdriver stop Dispense

cable around pulley bracket. Proceed back around
the opener sprocket and forward to chain retainer

bracket. Be sure teeth on chassis sprocket engage
chain.
Connect chain to chain retainer bracket, as shown in
inset, using second master link from coin envelope,

NOTE: Check to make sure chain is not twisted.
