SEARS CRAFTSMAN 8.5 H.P. ENGINE MODEL 143.988503 FOR
CHIPPER-SHREDDER MODEL 247.775880

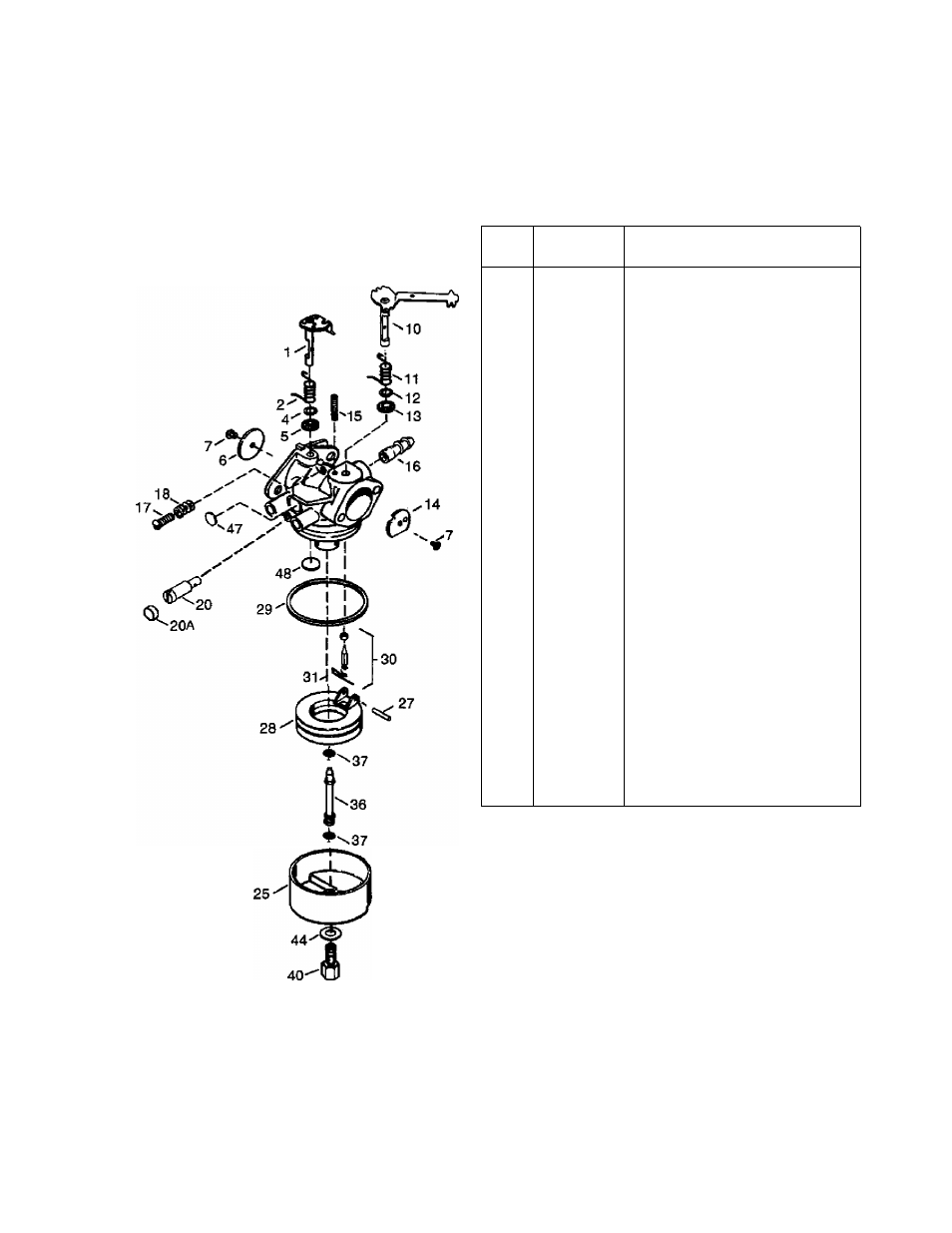

Carburetor
Key
No.
Part
No.
Description
640112
Carburetor (Inci. 184 of Engine Parts
List)
1
631776A
Throttie Shaft & Lever Assembly
2
631970
Throttie Return Spring
4
631184
Dust Seal Washer
5
631183
Dust Seal (Throttle)
6
640109
Throttle Shutter
7
650506
Shutter Screw
10
632740
Choke Shaft &Lever Assembly
11
632043
Choke Return Spring
12
631184
Dust Seal Washer
13
631183
Dust Seal (Choke)
14
631753
Choke Shutter
15
630735
Choke Positioning Spring
16
632164
Fuel Fitting
17
651025
Throttle Crack Screw/ldle Speed
Screw
18
630766
Tension Spring
20
640027
Idle Mixture Screw
20A
640053
Idle Restrictor Screw
25
631867
Float Bowl
27
631024
Float Shaft
28
632019
Float
29
631028
Float Bowl “0"-Ring
30
631021
Inlet Needle, Seat & Clip (Incl. 31)
31
631022
Spring Clip
36
640113
Main Nozzle Tube
37
632547
0 Ring, Main Nozzle Tube
40
640114
High Speed Bowl Nut
44
27110
Bowl Nut Washer
47
630748
Welch Plug, Idle Mixture Well
48
631027
Welch Plug, Atmospheric Vent
24
