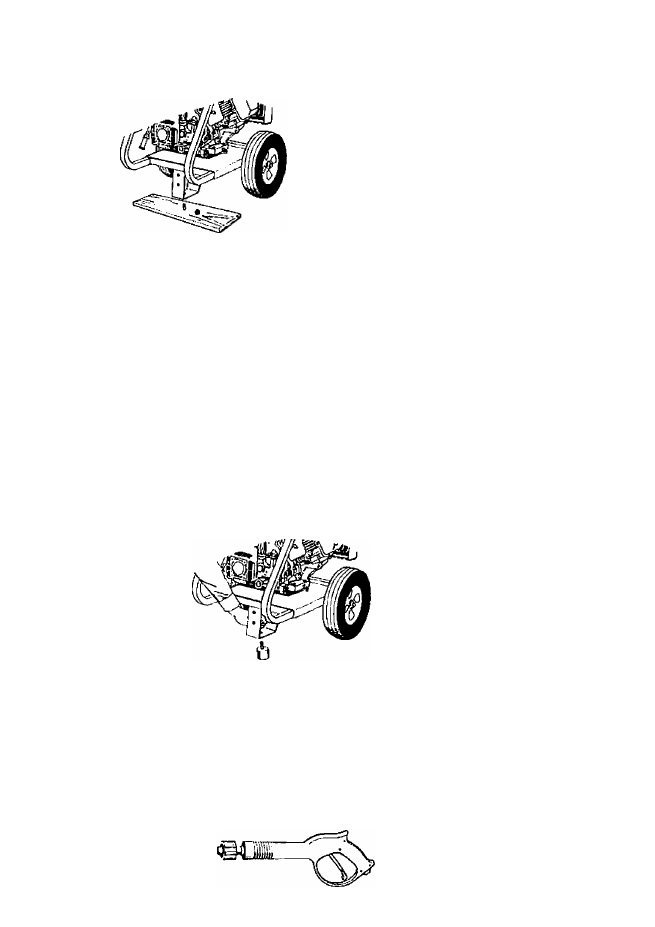

2. • Remove wood plank from the frame of the unit.
An adjustable wrench is required. Discard nut,
bolt and board.
3. • Mount the rubber isolator to the frame. To moun
isolator place threaded end of bolt through the
washer. Next with washer on bolt, place threader
end of bolt through the rubber isolator. Place
threaded portion of isolator through the front
hole location where the wood plank was mounter
on to the pressure washer. Next place lockwashc
over threaded portion of nut that has been placer
through the mounting hole in the pressure washei
and use nut to tighten isolator to the frame.
Tighten nut with an adjustable wrench. All isolatoi
parts are supplied in parts bag.
NUT
LOCKWASHER
PRESSURE , ,
WASHER l„f-|SOLATOR
FRAME C-^WASHER
BOLT------ A
4. • Connect wand with nozzle extension to gun. To
tighten, turn knob in clockwise direction. Hand
tighten.
