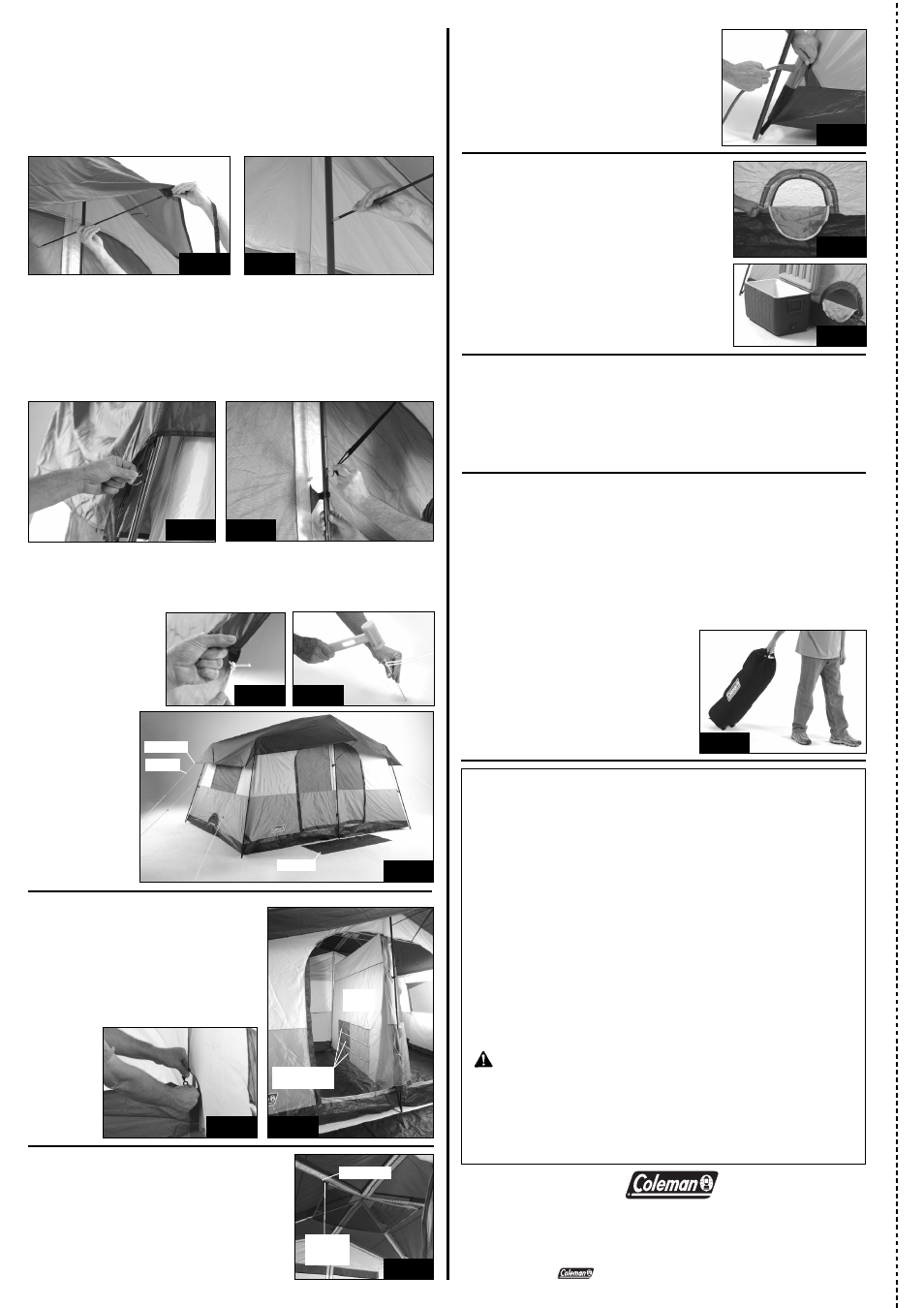

To Attach Rainfly
continued
3. Insert end of Awning Pole with plastic tip into web pocket at
front of the Rainfly. (Fig 15)
4. Insert metal tip on Awning Pole into hole in Long Leg Pole
(Fig 16). NOTE: It may be necessary to rotate the pole
slightly for proper alignment with Awning Pole.
5. Install remaining Awning Pole at back of tent as shown in
steps 3 & 4 above. (Fig. 15 & 16)
6. Insert hooks on elastic straps, located at corners of Rainfly,
into holes on the four Short Leg Poles to secure. (Fig. 17)
7. Insert hooks on long elastic straps, located at front and back
of Rainfly, into holes on Long Leg Poles to secure. (Fig. 18)
Cooler Access
The smaller zippered opening at the side
of tent is designed for added ventilation
and easy access to your beverage cooler.
1. To use as a vent, unzip flap to expose
screen. (Fig. 26)
2. To use as a cooler access, unzip
other flap to make an avenue to bring
beverages into tent. (Fig. 27)
STITCH LINE
Attaching Room Divider
1. Divider Panel can be installed
through center of the tent by
inserting toggles through the
top and bottom fabric loops as
shown. (Fig. 22 & 23)
The Coleman Company, Inc. • 3600 N. Hydraulic • Wichita, Kansas 67219
1-800-835-3278 • www.coleman.com
MADE IN CHINA • PRINTED IN CHINA
© 2007 The Coleman Company, Inc.
Coleman ® and are registered trademarks of The Coleman Company, Inc.
Things You Should Know:
• Under certain conditions (cold weather, high humidity, etc.) condensa-
tion will form on the inside of your tent. Condensation is caused by
water vapor from your breath, perspiration, or any wet clothing inside
the tent. It is NOT LEAKAGE through the tent fabric. It can be minimized
by removing wet clothing from your tent and by providing good ventila-
tion through the tent.
• Never store tent, even for a short period of time, without drying it
thoroughly and brushing off caked dirt. Do not pack stakes or poles
inside your tent. Use a separate storage bag.
• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.
NEVER PULL ON THE TENT TO REMOVE STAKE.
• TENT POLES SHOULD NOT BE LEFT TELESCOPED TOGETHER
DURING STORAGE.
• Do not leave your tent set-up for weeks at a time. Be aware that exposure
to ultraviolet rays from the sun can seriously damage material and/or
cause it to become discolored.
WARNING: Keep all flame and heat sources away
from this tent fabric.
This tent meets the flammability requirements of CPAI-84. The
fabric may burn if left in continuous contact with any flame source.
The application of any foreign substance to the tent fabric may
render the flame-resistant properties ineffective.
To Store
1. All metal poles and stakes must be placed in the storage
bag to prevent damage to the fabric items placed in the
carry case.
2. Make sure tent is clean and dry before placing in carry case.
3. Remove rainfly, spread out on floor of tent, then unzip
door & vents before taking tent down for storage.
4. Neatly fold tent to width of pole
storage bag, place on tent, roll
tightly, and place in carry case.
5. Use wheels on bottom of carry
case and web handle for easy
transporting of the tent. (Fig. 28)
6. Store in a clean, dry area.
Electrical Cord Access
1. Unzip access panel in the lower
left corner of tent and bring in
electrical cord.
NOTE: Use only UL approved cords
rated for outdoor usage. (Fig. 25)
Rev 01/08
Overhead Storage
1. Hang the overhead storage panel by
placing the hooks through the loops
on the inside of the tent. (Fig. 24)
NOTE: The overhead storage is to keep
small items off the floor. Large or
heavy items may damage the tent.
Fig. 15 Fig. 16
Fig. 17 Fig. 18
8. Tie guylines onto the six web loops located on the sides of
the Rainfly. (Fig. 19 & 21)
9. Loop end of guyline over stake, stretch tight, then hammer
into ground at an
angle as shown.
(Fig. 20 & 21)
10. Secure door mat
through loops
with stakes.
(Fig. 21)
Fig. 19 Fig. 20
Fig. 21
Fig. 22 Fig. 23
Fig. 24
Hook on
Storage
Panel
Tent Loop
Fig. 27
Fig. 26
Fig. 28
Door & Window Flaps/Vents
1. For better ventilation, unzip door flaps, roll, and insert
toggle into fabric loop to secure.
2. To open back and side window vents for more ventilation,
unzip, then roll up and insert toggles through fabric loops.
Fig. 25
Door Mat
Divider
Panel
Pockets for
Gear Storage
Web Loop
Guyline
