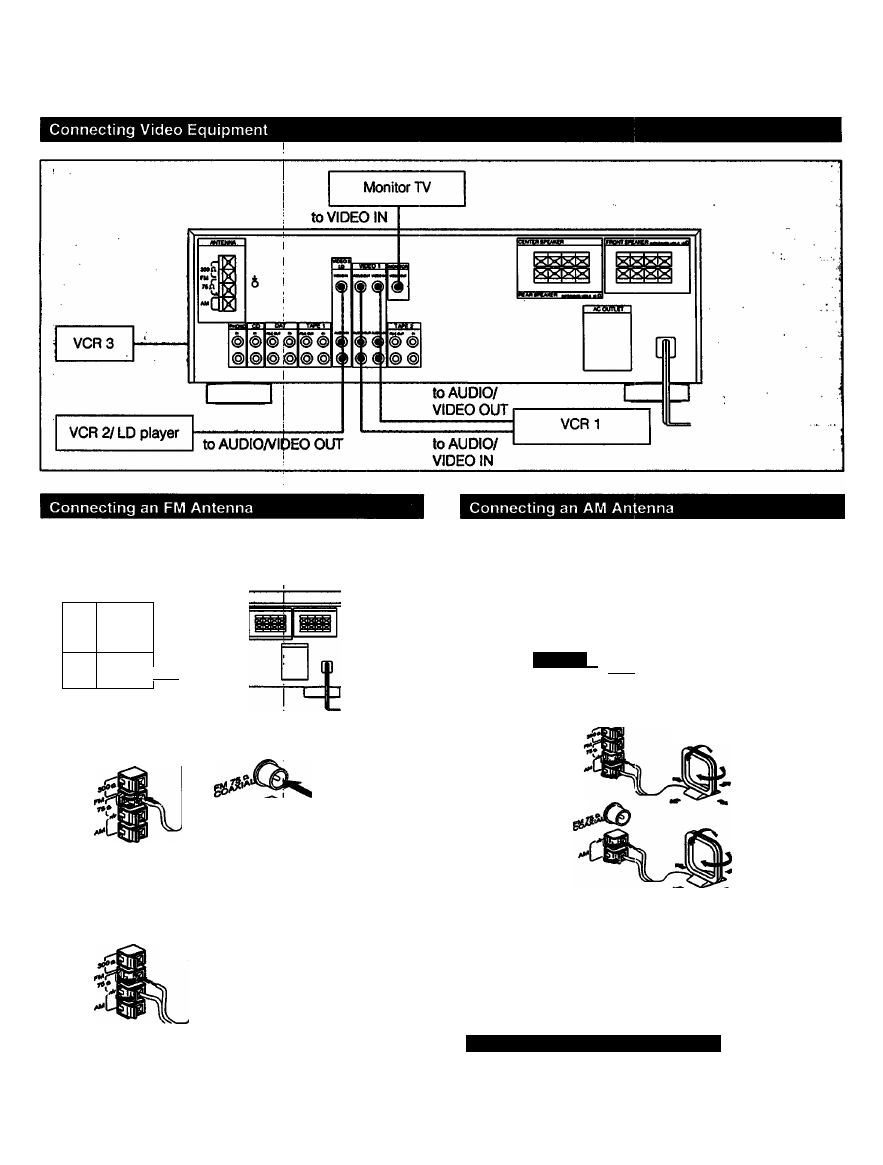

Though the ribbon antenna is supplied with this unit, the
higher quality sound will be obtained with the 75-ohm
coaxial cable.
fl
> 0
b
oooboo
log»«
The AM broadcast is enough received with the supplied AM
loop antenna. However, the connection of insulated wire is
also available for areas with difficult AM reception.
For normal use
For U.K model
-'D
Supplied wire antenna
For higher quality sound
Supplied wire antenna
For UJK model
-c
75-ohm coaxial cable
(optional)
75-ohm coaxial cable
'(optional)
0|90
0
«
ooloo
/K,"
Supplied AM
loop antenna
For U.K model
Adjust the
direction.
For areas with difficult AMI reception
In areas with troubled reception, connect a
6
to 15-meter
(20 to 50-foot) insulated wire to the AM antenna terminal.
Extend this out of doors if possible, keeping the greater
portion horizontal.
(There is no need to disconnect the supplied antenna.)
Connecting the Antenna Ground
To prevent hum. connect the ground wire to ANTENNA
ground terminal (
7
)
7
).
When an outdoor antenna is installed, be sure to connect
the ground wire for lightning protection.
