izl EJECT switch (p. 11)
m LANC
C
control jack
C stands for Local Application Control
Bus System. The
C
control jack is used
for controlling the tape transport of
video equipment and peripherals
connected to it. This jack has the same
function as the jack indicated as
CONTROL L or REMOTE.

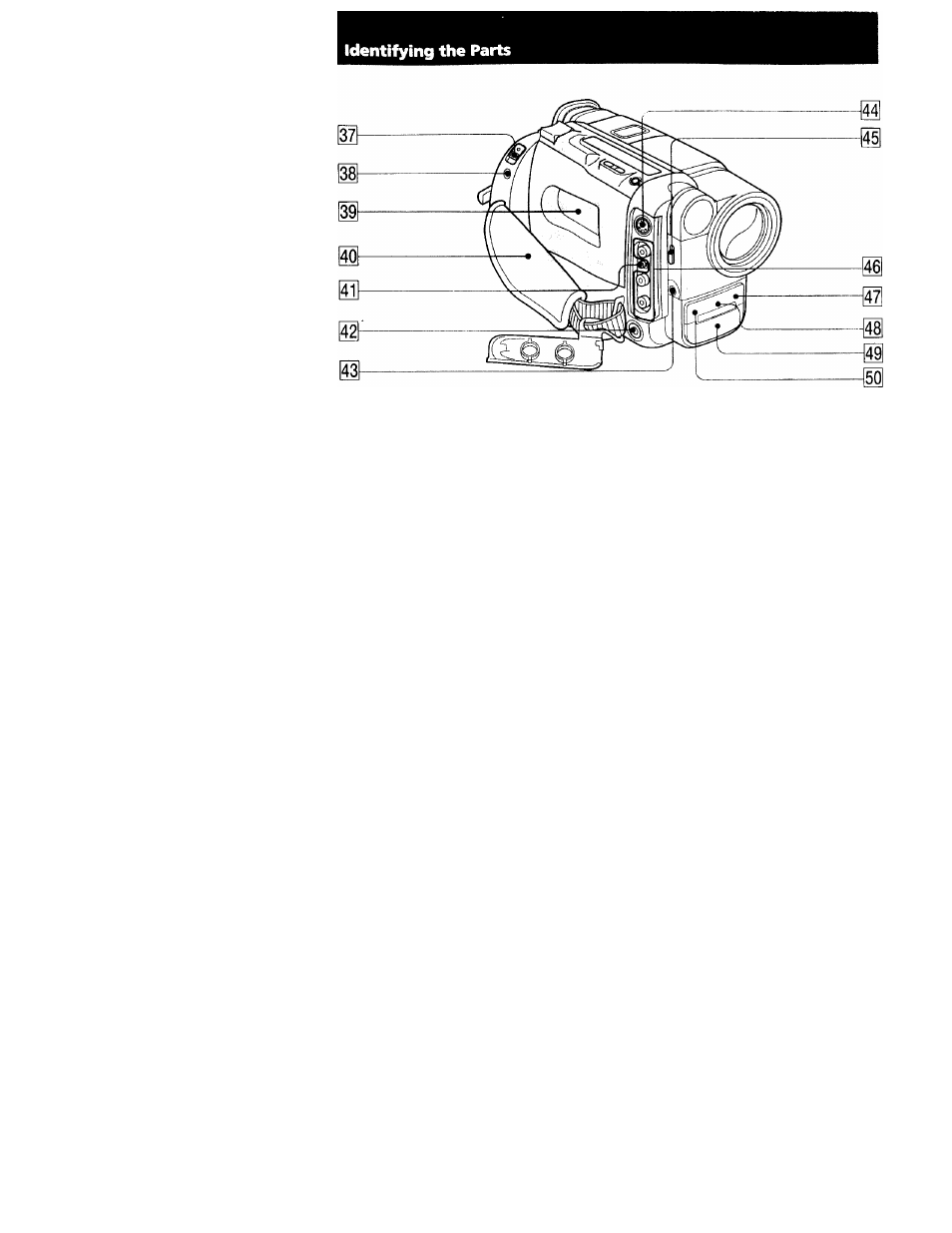

1^ Cassette compartment (p. 11)
Grip strap (p. 17)
gi]
RFU DC OUT (RFU adaptor DC output)
jack (p. 20)
M
0 (headphones) jack (CCD-TR917/
TR940 only) (p. 22)
M
MIC jack (PLUG IN POWER)
Connect an external microphone (not
supplied). This jack also accepts a
"plug-in-power" microphone.
S VIDEO jack (CCD-TR917/TR940 only)
(p. 19)
Light switch (CCD-TR67/TR87/TR97/
TR917/TR940 only) (p. 49)
VIDEO/AUDIO jacks (p. 19)
Remote sensor (CCD-TR67/TR87/
TR97/TR917/TR940 only) (p. 76)
Aim the Remote Commander here for
remote control.
LASER LINK emitter (CCD-TR87/
TR97/TR917/TR940 only) (p. 20)
Microphone
Camera recording/battery lamp (p. 12)
