Getting Started
VCR
Amplifier
VCR
LD player/TV game
Amplifier
LD player
Speaker System Hookups
Overview
This section describes how to connect your speakers to
the amplifier. Front (left and right) speakers are
required but center and rear speakers are optional. The
center and rear speakers enhance the surround effects.
Connecting the active woofer will increase bass
response.

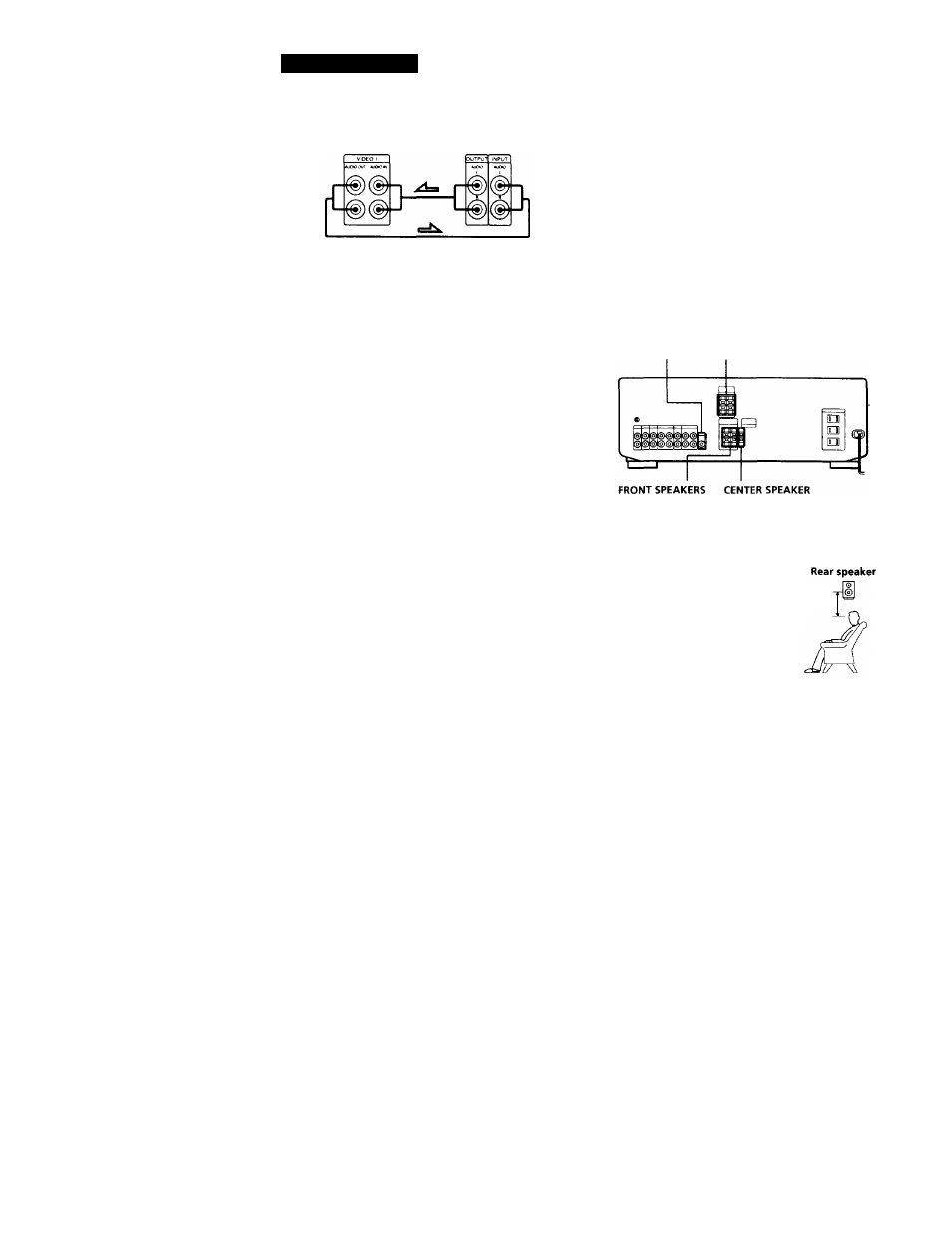

For specific locations of the terminals, see the
illustration below.
Where do / go next?
Go on to the next section to connect the speakers.
MIX AUDIO OUT REAR SPEAKERS
For optimum surround sound effect, place your
speakers as shown below.
AS'»
60 - 90 cm
Front speaker
a
What cords will I need?
Speaker cord (1 for each speaker)
(+)
(-)
(+)
H
Twist the stripped ends of the cord about 2/3 inch (15 mm ).
Be sure to m atch the speaker cord to the appropriate
terminal on the components: + to + and - to -. If the cords
are reversed, the sound will be distorted and will lack bass.
