System Connection
•To get an optimum stereo effect, take care to do as follows:
-Connect the right speaker to the R terminal of the woofer/
amplifier, and the left speaker to the L.terminal.
-Be sure to connect the © to the ®, ¿tnd the © to the ®
terminals.
•Be careful not to short the speaker cords between © and ©
terminals. Otherwise, the speaker may Ibe damaged.

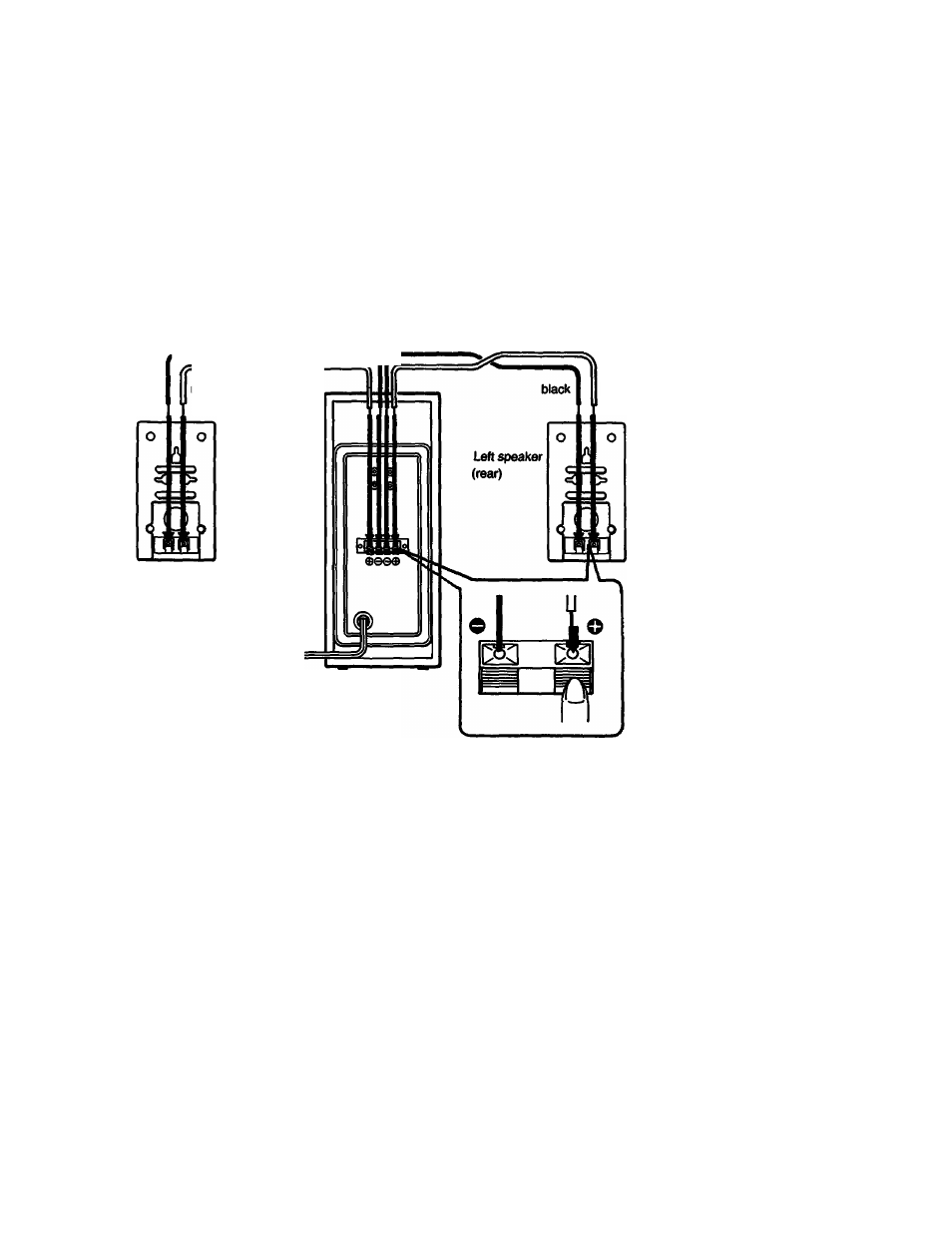

black red/black
Speaker cord (supplied)
Speaker cord (supplied)
Right
speaker
(rear)
SRS-D4 (rear)
AC outlet
red/black
•You can connect speakers to the woofer/amplifier other than
the one supplied. The woofer/amplifier accepts speakers
having the load impedance of more than 4 ohms, and the
rated input power of more than 6 watts.
•You can use the full-range speakers as the additional
speakers for TV, etc..
If you connect the full-range speakers to TV, etc., be sure that
the connected equipment has the speaker impedance of more
than 4 ohms, and the rated output of less than 6 watts.
