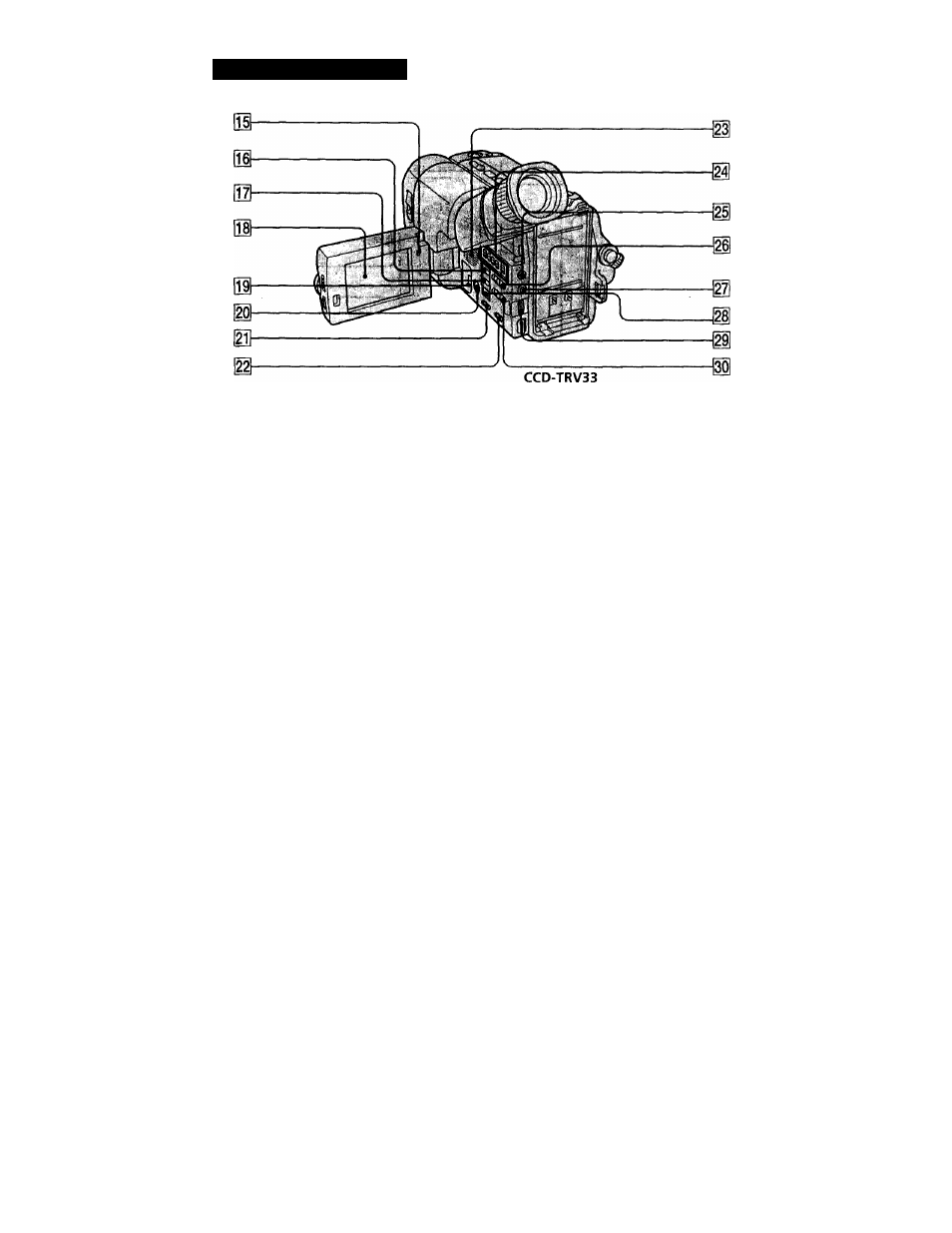

Identifying the parts
(li Recording lamp
01
DATE (+) button (p. 22)
03 TIME (NEXT) button (p. 22)
01
LCD screen (p. 16, 54)
01
Lithium battery compartment (p. 32)
M
DISPLAY button (p. 17)
H COUNTER RESET button (p. 11)
M
end
search
button (p. 18)
m Speaker
m Mode switches (p. 28)
1
LANC
C
control jack
C stands for Local Application Control
Bus system. The
C
control jack is used for
controlling the tape transport of video
equipment and peripherals connected to it.
This jack has the same function as the
connectors indicated as CONTROL L or
REMOTE.
j
START/STOP MODE switch (p. 9, 10, 25)
1 ® (earphone) jack (p. 17)
1
TITLE button (p. 26)
j
VOL (speaker volume) control (p. 16)
i
STEADY SHOT switch (p. 27)
(CCD-TRV22/TRV212 only)
STEADY SHOT/CINEMA MODE switch
(p. 27) (CCD-TRV33 only)
48
