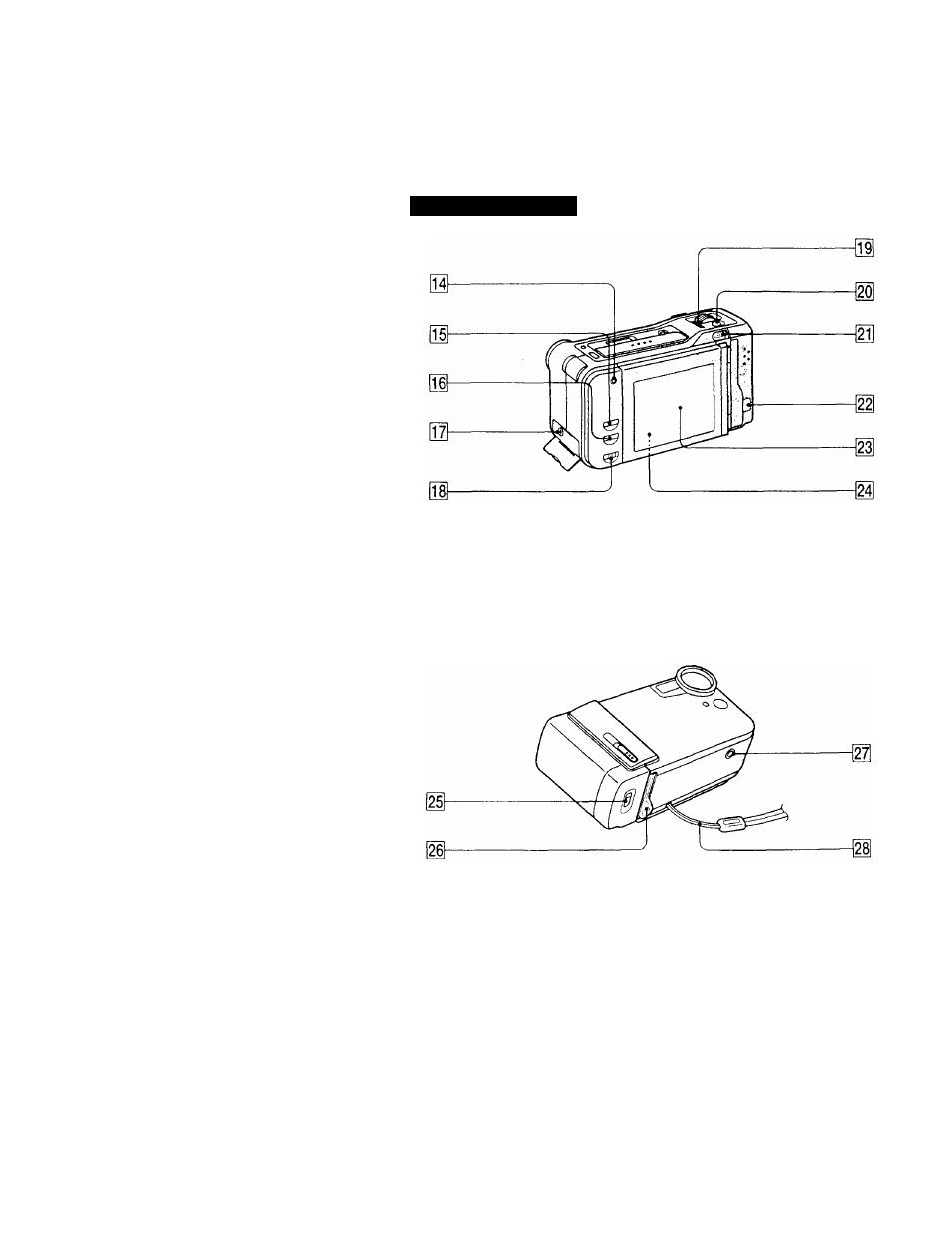

Identifying the parts

) Recording lamp

m DATE button (p. 19, 23)

01 TIME button (p. 19, 25)

07) A/V OUT jack (p. 23)

01 SPEAKER ON/OFF switch (p. 20)

0i MACRO lock switch (p. 15)

PHOTO button (p. 14)

POWER ON/OFF switch (p. 12, 14)

Cord cover (p. 10)

LCD screen (p. 12,14, 20)

Speaker (p. 20)

OPEN (ВАТТ) release lever (p 8)

Cartridge eject lever {p 31)

Tripod receptacle (p 15)
iM.ike sure th.it the length of the tripod
screw is less then 9/32 in (6 5 mm).

"otherwise you cannot attach the tripod

securely and the screw may damage the

camcorder.

Hand strap

The hand strap is already attached.
