Cooper Lighting TZ3003 User Manual
Lynx, Tz3003

DESCRIPTION
www.cooperlighting.com
SPECIFICATION / FEATURES
Catalog #
Type
Project
Comments
Prepared by
Date

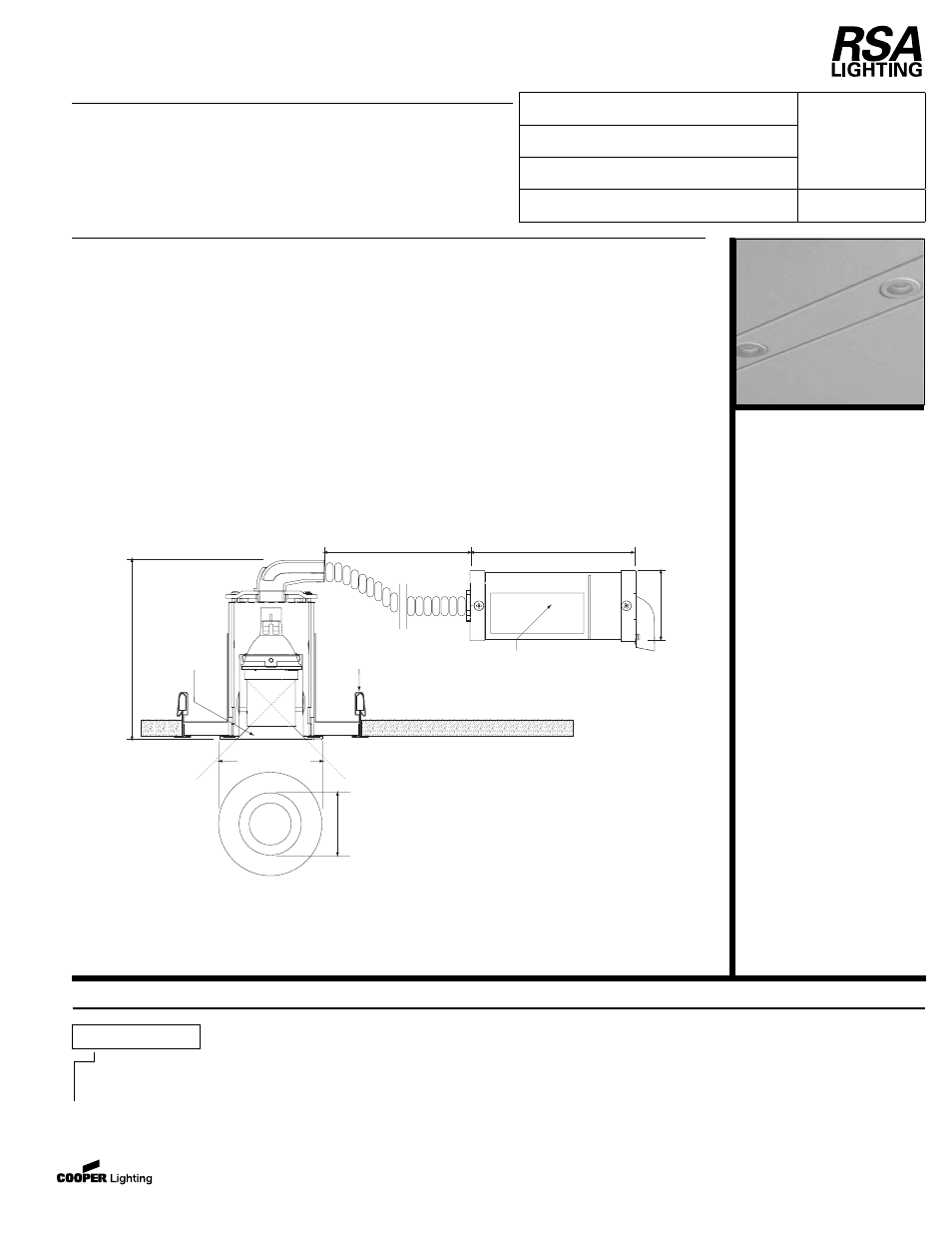

Smooth
Splayed
Regress with
45° Cut-Off
Flexible Conduit
Integral Electronic Low Voltage
Transformer with Thermal Protection
and Wiring Compartment in
Cylindrical Enclosure
Acoustical Tee
Mounting Brackets
6.00”
3.50”
2.30”
18.00”
6.00”
2.00”
A ...Housing
All aluminum construction with 18” of
flexible conduit attached to a cylindrical
transformer/wiring enclosure. Mounting
hardware suited for TechZone™ ceilings
exclusively.
B ...Trim:
3.5” o.d. round trim with smooth splay
regress and 45º visual cut-off. Finished in
Armstrong® white.
C ...System Protection:
Thermal protection inside housing.
Vent holes in housing provide cooler
operation. All aluminum construction
provides overall reduced temperatures.
D ...Electrical
Electronic transformer housed in a
separate metal enclosure. Enclosure
includes a separated wiring compartment
and entry for primary leads.
E ...Lamp
12V MR16 / MR16IRC 37 watts max.
“POSI-GRIP” bi-pin lamp socket for firm,
mechanical lamp connection. Can accept
up to two (2) optical accessories.
(lamp not included)
LYNX
Armstrong® TechZone™
Compatible
TZ3003
3.5” Round
Downlight
Smooth Splay
Regress
45º Visual Cut-Off
FOR 12V MR16 / MR16 IRC
37 watts max.
ORDERING INFORMATION
TZ3004
3.5” Round Trim with Smooth Splay Regress & 45º Cut-off
Includes Housing with Integral Electronic Transformer and
J-box - Trim face has Armstrong White finish
12V MR16 / MR16 IRC 37W max.
3.5” Round Downlight MR16 trim with smooth splay regress and 45º visual
cut-off. For use with Armstrong® TechZone™ Ceiling products.
Trim face has Armstrong White finish with flat black internal finish
