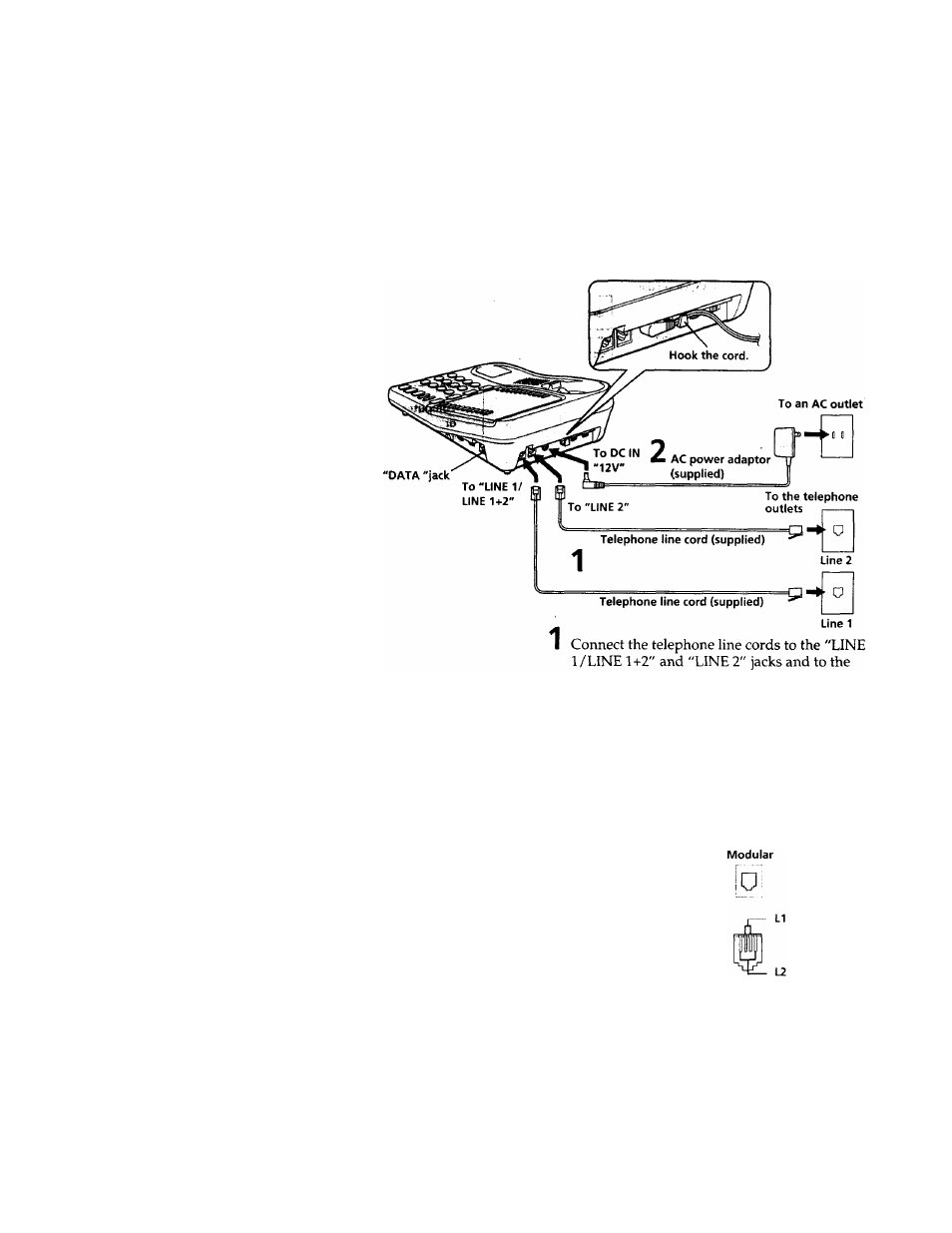

To connect the phone to two separate outlets
telephone outlets.
Connect the AC power adaptor to the DC IN
"12V" jack and to an AC outlet.
C\
a
3
tfi
V)
r+
fli
A
a
Notes
• Use only the supplied AC-T69AC power adaptor. Do
not use any other AC power adaptor.
• Connect the AC power adaptor to a continuous power
supply.
• Place the phone close to the AC outlet so that you can
unplug the AC power adaptor easily.
Tips
• If your telephone outlet is not modular, contact your
telephone service company for assistance.
• LI is the first phone line connected to center pair of
wires. L2 is the second phone line connected to outer
pair of wires.
Polarity of the plug
continued
Getting Started
9'
