Coleman Tent 919A162 User Manual

Beach shade, Before you begin, Parts and components

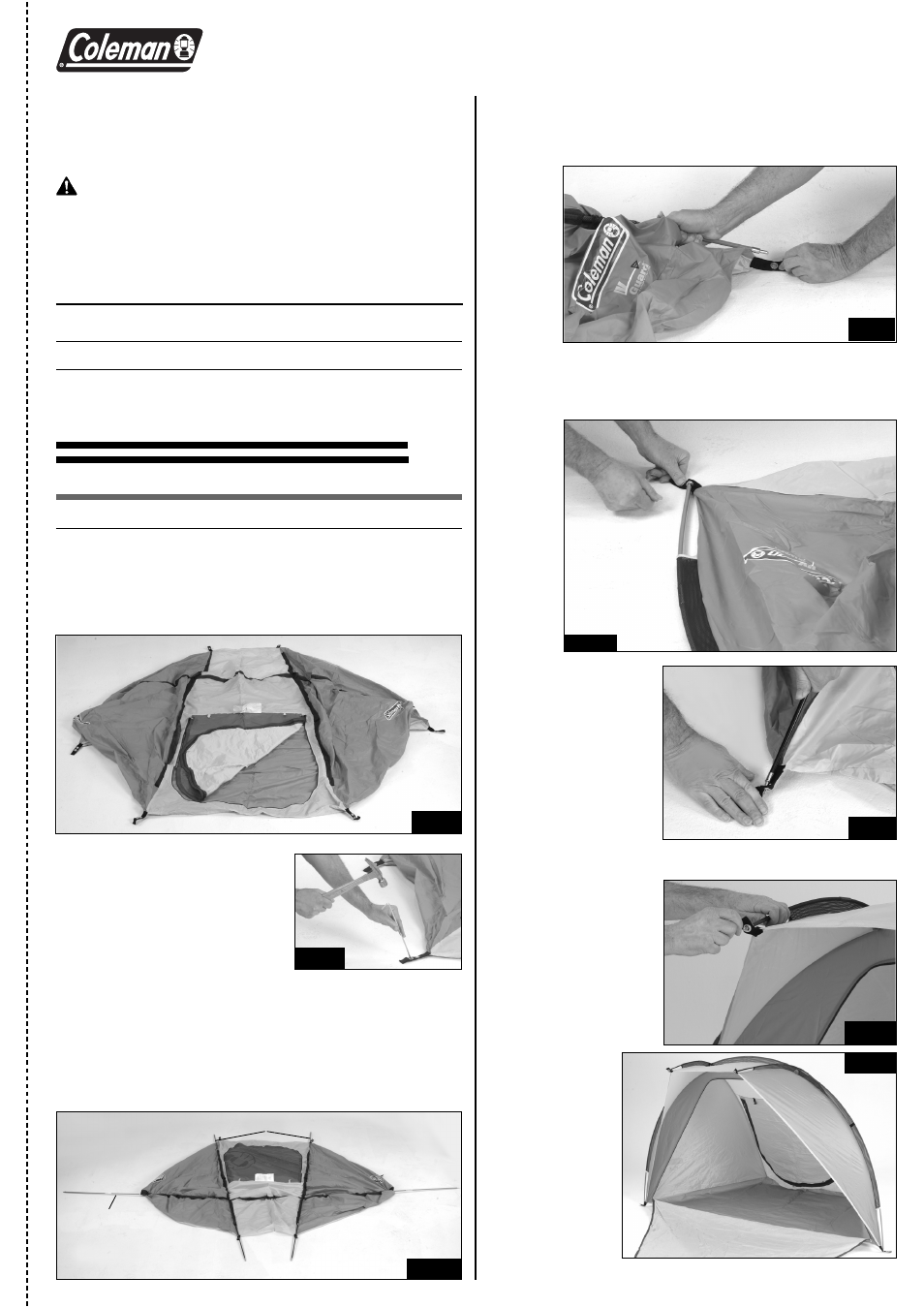

background image

STITCH LINE

BEACH SHADE

TM

MODEL 9192A162

Before you begin

Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or

sharp objects, to install your Beach Shade.

WARNING: Keep clear of overhead power lines.

• Do not set up your Beach Shade under trees.
• For best results in windy conditions, position end of Beach

Shade into the wind.

• Enlist the help of at least one other person to assist you when

it is time to assemble the Beach Shade.

Fig. 1

Fig. 2

To Set Up Beach Shade

1. Unfold Beach Shade and spread out on a clean, level surface

with the door facing the desired direction. Unzip door.
(Fig. 1)

3. Assemble both Main (black) Poles and the Crossover (gray)

Pole by interlocking shock-corded poles.

4. Insert the Main (black) Poles through the pole sleeve running

side to side. (Fig. 3)

5. Insert the Crossover (gray) Pole through the pole sleeve

running side to side. (Fig. 3)

Fig. 3

6. Insert one end of the gray Crossover Pole into the grommet

on the web strap on either side of front door. (Fig. 4)

Fig. 6

Fig. 4

8. Go to the back of the

Beach Shade and
insert black Main Pole
tip into the grommet
on the web strap.
(Fig. 6)

To Set Up Beach Shelter

(continued)

Fig. 5

(continued on other side)

Parts and Components

Description

Part Number

Main Poles - Black (2)

9192-902

Crossover Pole - Gray (1)

9192-922

Main Poles (2)

Crossover Pole (1)

2. Stake down shade corners,

using the outside grommets on
the web straps. Keep the floor
taut. (Fig. 2)
Option: Use sand bags to weight
shelter down, see Fig. 15 & 16.

7. Go to opposite end of the gray pole and gradually apply

pressure to the pole, forming an arch, until you are able to
insert the pole tip into the grommet on the web strap. (Fig. 5)

9. From the front of the Beach Shade, gently pull the black Main

Pole down until you
can insert the end into
the grommet on
the web strap located
above the door open
ing. (Fig. 7)

10. Repeat for the

second black
Main Pole.
(Fig. 8)

Fig. 7

Fig. 8

Black Poles

Gray Pole
