ITBR001-237 2009-10 Suzuki Z400 - 4
Fi
gu
re
D
Fi
gu
re
E
TPS

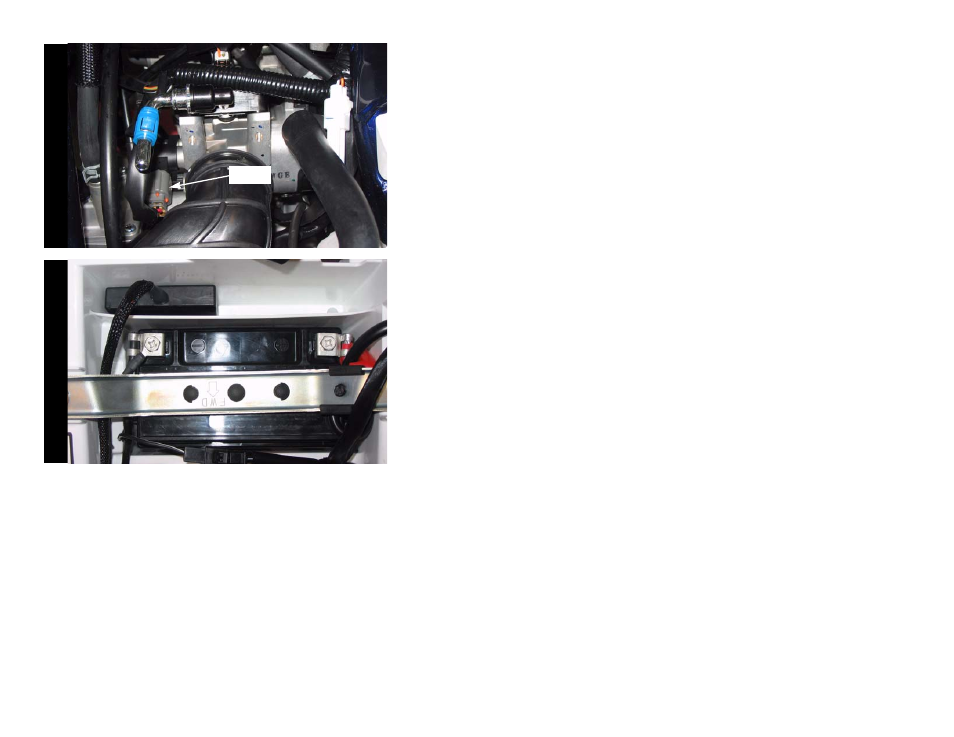

8 Locate the throttle position sensor (TPS) connector.
This connector is located on the left side of the throttle body to the inside of the
frame as shown in Figure D.
9 Unplug the TPS harness and connect the Juice Box Pro to the wiring harness and
the throttle body.
10 Attach the ground wire from the Juice Box Pro to the negative side of the battery as
shown in Figure E.
11 Using the supplied velcro, secure the Juice Box Pro to the rear fender as shown in
Figure E.
Make sure to clean both surfaces with the alcohol swab before attaching.
12 Reinstall the fuel tank.
13 Reinstall the seat.
Note:Verify the fuel tank does not pinch the Juice Box Pro wiring harness.
