Two Brothers Racing Suzuki Z400 - Manual (Page 3)

ITBR001-237 2009-10 Suzuki Z400 - 3

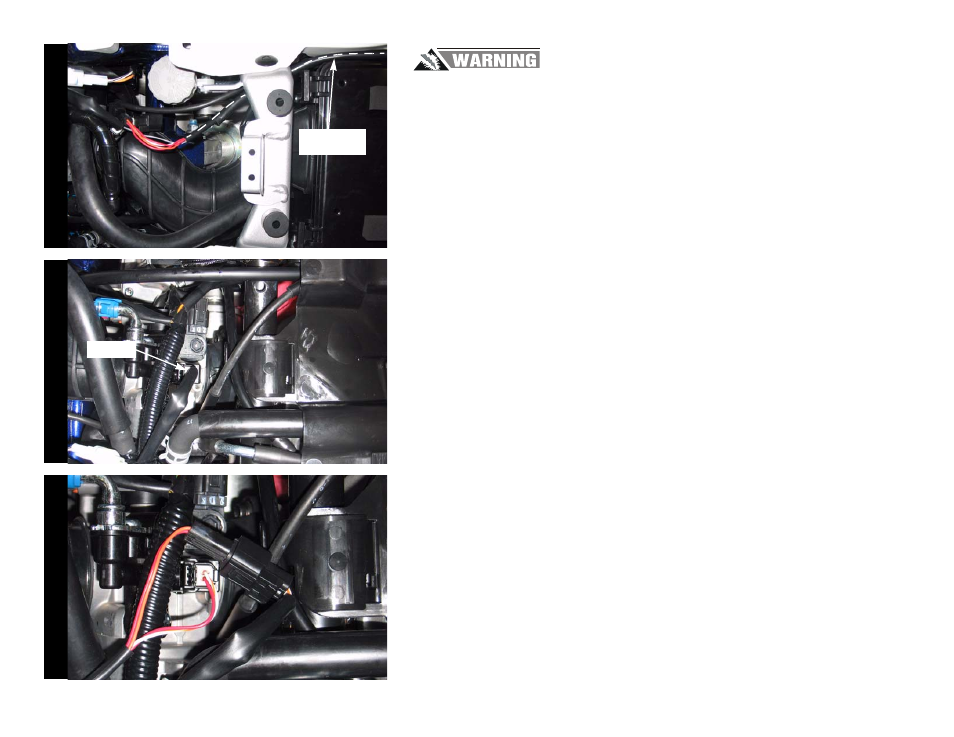

Fi
gu
re
A
Fi
gur
e B
Fi
gu
re
C
Juice Box Pro
harness
unplug
The ignition must be turned OFF before installation.
1 Remove the seat.
2 Remove the fuel tank.
The install can be done without completely removing the fuel tank, but the rear of
the tank will at least need to be raised up.
3 Temporarily lay the Juice Box Pro near the tool kit.
4 Route the Juice Box Pro harness down the right side of the quad.
5 Route the Juice Box Pro harness underneath the frame cross member as shown in
Figure A.
6 Unplug the stock wiring harness from the injector as shown in Figure B.
7 Attach the connectors from the Juice Box Pro to the stock wiring harness and the
injector as shown in Figure C.
