Two Brothers Racing 2006-07 Suzuki LTR450 - Manual (Page 4)

ITBR001-151 2006-07 Suzuki LTR450 - 4
Fi
gu
re
D
Fi
gu
re
E
ground bolt
ground wire

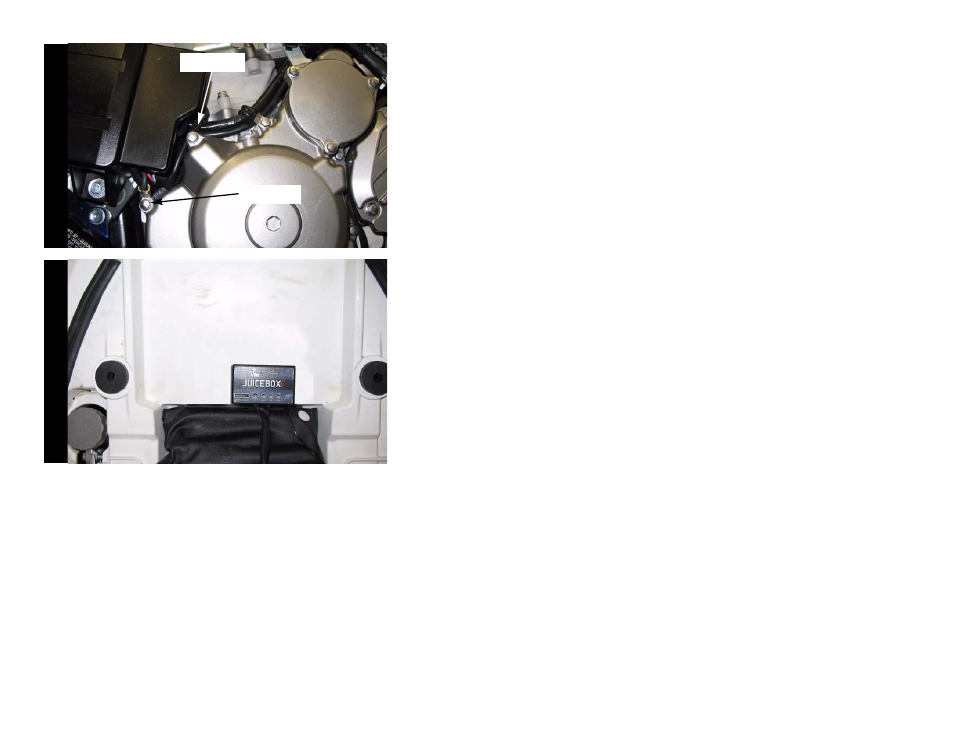

10 Attach the ground wire from the Juice Box Pro to the common ground on the left
hand side of the engine as shown in Figure D.
Follow the stock wiring harness.
11 Using the supplied velcro, secure the Juice Box Pro to the rear fender as shown in
Figure E.
Position the Juice Box Pro so it does not interfere with the foam pads on the bottom
of the seat.
Make sure to clean both surfaces with the alcohol swab before attaching.
Note:The Juice Box Pro may also be installed inside the airbox if you are running
with the airbox lid removed.
12 Locate the white 6-pin diagnostic connector behind the headlight.
This connector is covered with a rubber boot.
13 Attach the Rev Extension plug to this connector.
14 Replace the plastic shroud around the fuel tank.
15 Reinstall the seat.
