Two Brothers Racing 2006-07 Suzuki LTR450 - Manual (Page 3)

ITBR001-151 2006-07 Suzuki LTR450 - 3

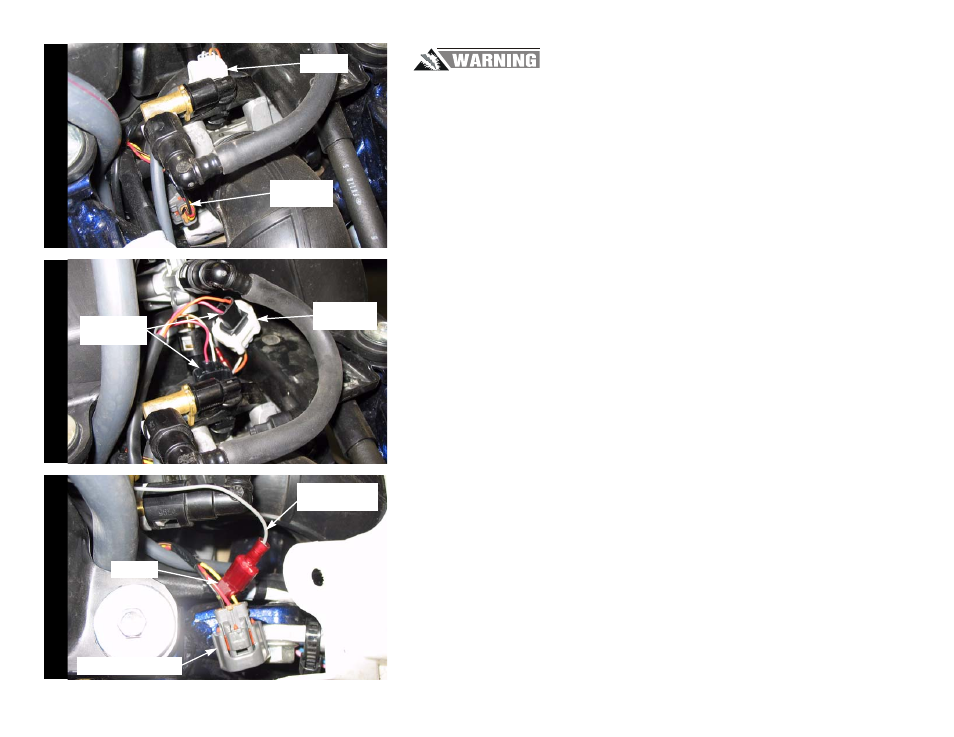

Fi
gu
re
A
Fi
gur
e B
Fi
gu
re
C
unplug TPS
connector
unplug
Juice Box Pro
connectors
stock
connector
wire tap
grey wire from
Juice Box Pro
stock TPS connector
The ignition must be turned OFF before installation.
1 Remove the seat.
2 Remove the plastic shroud around the fuel tank.
3 Lay the Juice Box Pro in the tail section.
4 Route the wiring harness from the Juice Box Pro towards the throttle body.
5 Unplug the stock wiring harness from the injector and the throttle position sensor
(TPS) as shown in Figure A.
6 Attach the connectors from the Juice Box Pro to the stock wiring harness and the
fuel injector as shown in Figure B.
7 Crimp the supplied wire tap to the yellow wire from the stock TPS connector as
shown in Figure C.
8 Attach the grey wire from the Juice Box Pro to the wire tap as shown in Figure C.
It is recommended to use dielectric grease on these connections.
9 Attach the TPS connector back to the throttle body.
