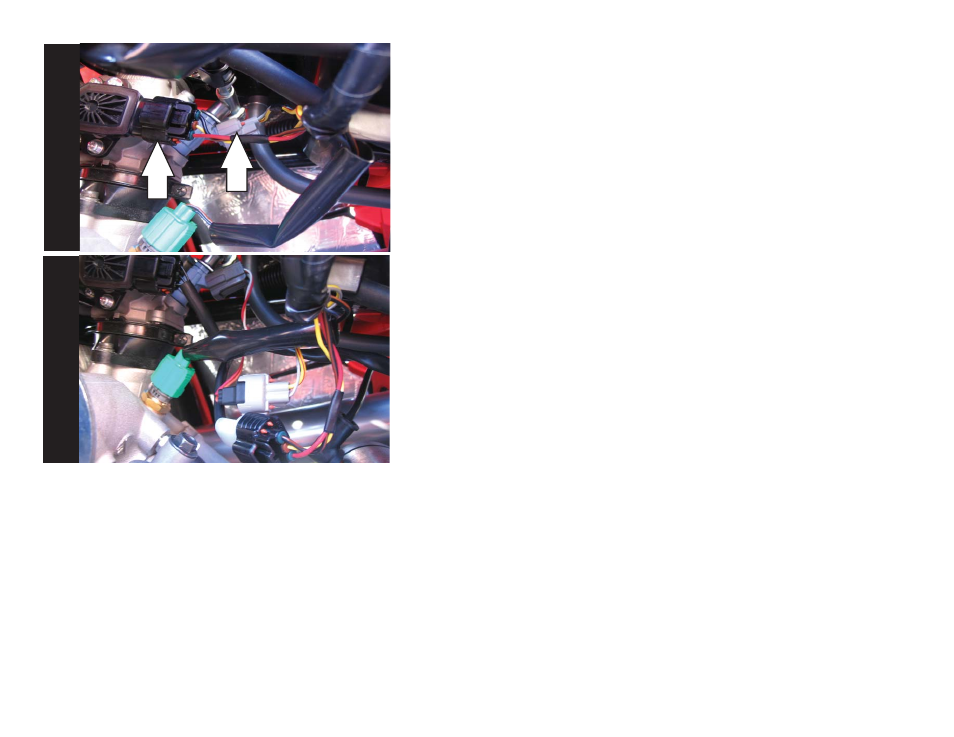

6. Unplug the stock wiring harness from the fuel injector as shown in Figure D.
7. Unplug the stock wiring harness from the Throttle Position Sensor (TPS) as
shown in Figure D.
8. Attach the connectors from the Juice Box Pro to the stock wiring harness and
injector as shown in Figure E.
9. Attach the connectors from the Juice Box Pro to the stock wiring harness and the
TPS as shown in Figure E.
10. Reinstall the covers.
11. Reinstall the seat.
