Two Brothers Racing Suzuki King Quad - Manual (Page 3)

ITBR001-227 www.twobros.com 2009-2011 Suzuki King Quad - 3

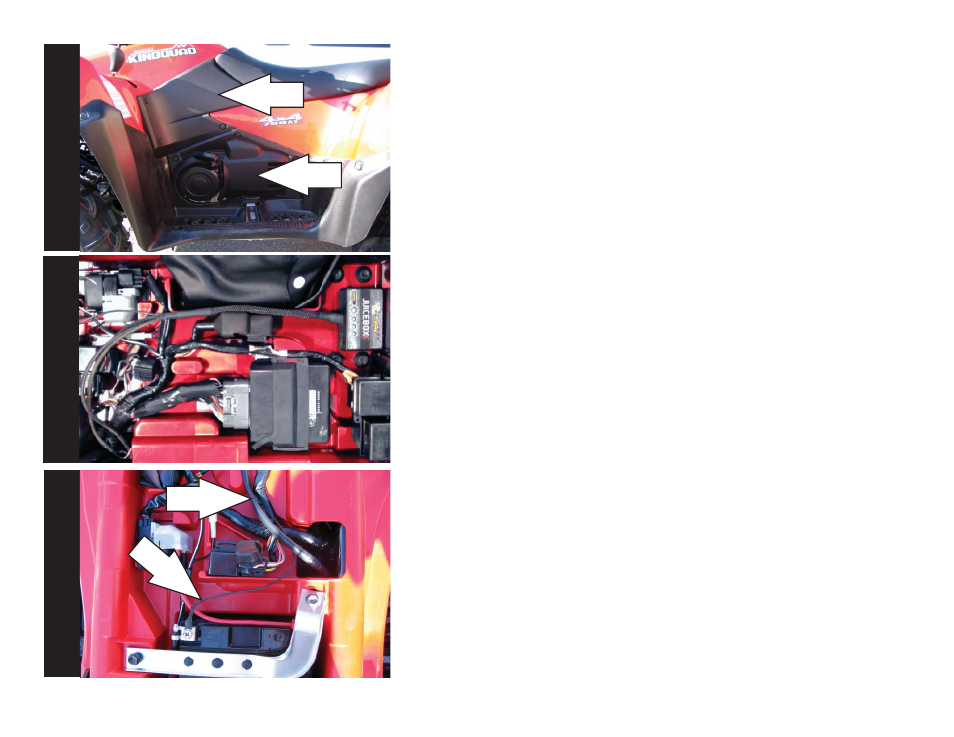

Figure A
Figure B
Figure C
3. Secure the Juice Box Pro under the seat using the supplied Velcro as shown in
Figure B.
Make sure to clean both surfaces with the alcohol swab before attaching.
4. Route the Juice Box Pro harness to the left side of the quad and go through the
hole in the rear fender as shown in Figure C.
5. Attach the ground wire from the Juice Box Pro to the negative side of the battery
as shown in Figure C.
remove
ground
harness
remove
1. Remove the seat.
2. Remove the covers on the left hand side of the quad as shown in Figure A.
