Two Brothers Racing Suzuki GSX-R650F - Manual (Page 4)

ITBR001-194 2008-09 Suzuki GSX-650F - 4
Fi
gu
re
D
Fi
gu
re
E
Fi
gu
re
F
grey wire
posi-tap
ground wire

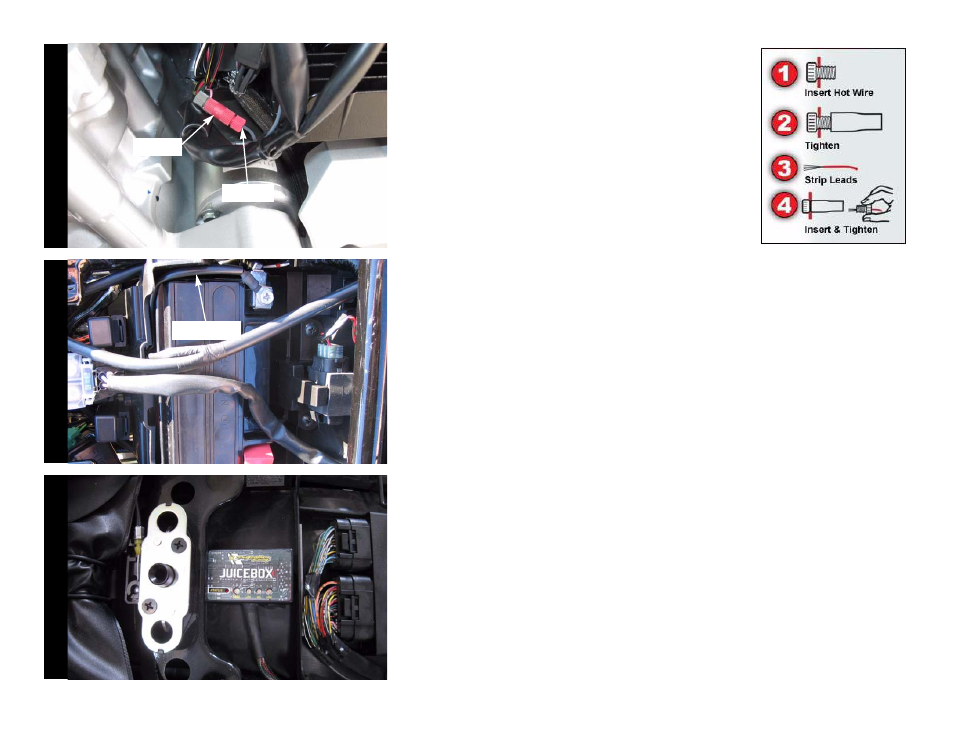

7 Locate the throttle position sensor (TPS).
The 5-pin TPS connector is located on the left hand
side of the throttle bodies.
8 Attach the supplied wire tap or posi-tap to the pink wire
with a black stripe as shown in Figure D.
9 Attach the grey wire from the Juice Box Pro into the
posi-tap as shown in Figure D.
It is recommended to use dielectric grease on these
connections.
For a cleaner look, you can follow the TPS wire back to
a junction where you can hide the wire tap easier.
10 Attach the ground wire from the Juice Box Pro to the negative side of the battery as
shown in Figure E.
11 Using the supplied velcro, secure the Juice Box Pro in the tail section to the inner
fender as shown in Figure F.
Make sure to clean both surfaces with the alcohol swab before attaching.
