ITBR001-262 2009-10 Suzuki Gladius - 3

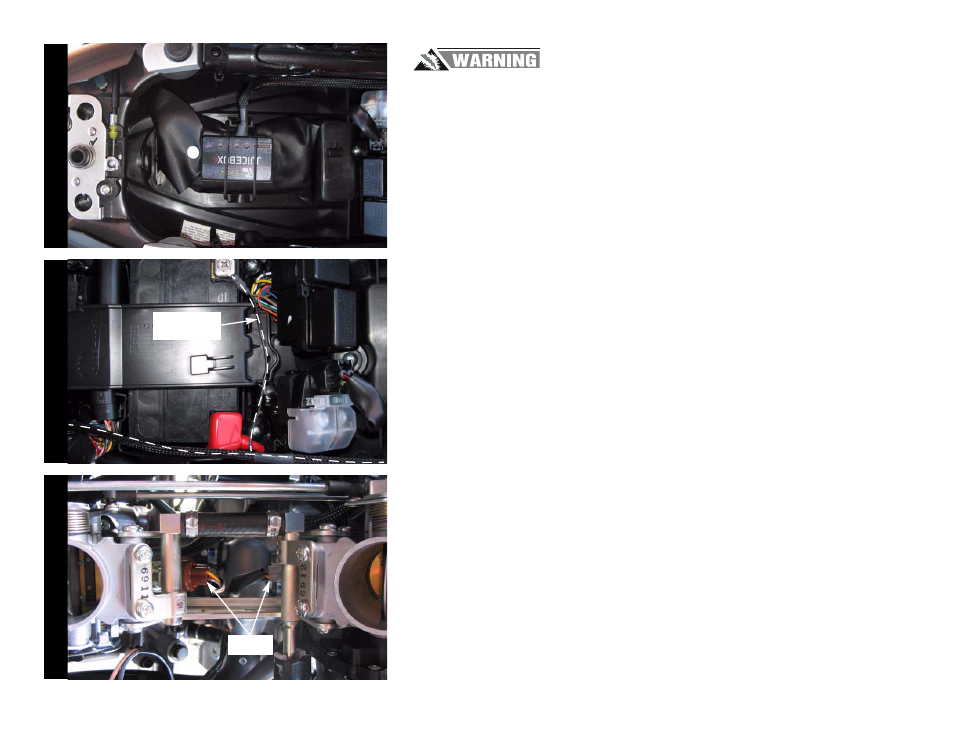

Fi
gu
re
A
Fi
gur
e B
Fi
gu
re
C
Juice Box Pro
ground wire
unplug
The ignition must be turned OFF before installation.
1 Remove the main seat and the passenger seat.
2 Install the Juice Box Pro in the tail of the bike on top of the tool kit as shown in
Figure A.
3 Route the wires from the Juice Box Pro down the left side of the bike and towards
the engine.
4 Attach the ground wire from the Juice Box Pro to the negative side of the battery as
shown in Figure B.
5 Prop the front of the fuel tank up using the Suzuki prop rod.
6 Remove the air box.
The air box does not need to be removed to perform this installation but may make
it easier as the stock injector connectors can be very difficult to remove.
7 Locate the stock injector connectors.
The front cylinder connector is brown and the right rear cylinder is grey.
8 Unplug these connectors from the injectors.
