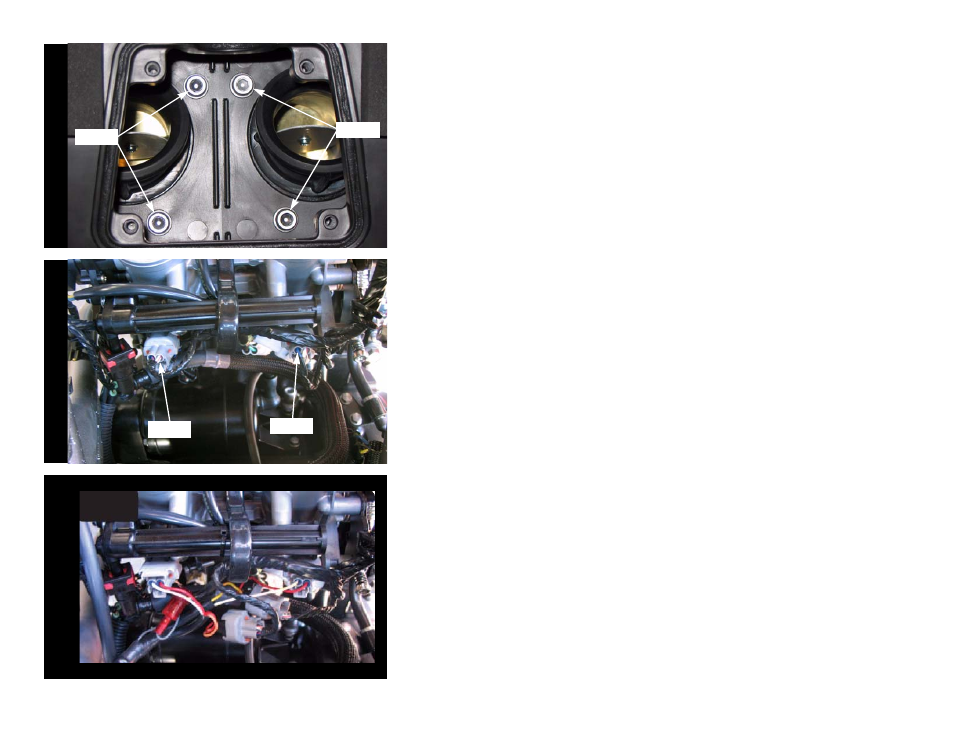

7 Remove the four bolts securing the air box to the throttle bodies as shown in
Figure D.
8 Disconnect the air box temp sensor and hoses leading to the air box.
9 Remove the air box from the bike.
10 Unplug the stock wiring harness from the injectors as shown in Figure E.
11 Attach the connectors from the Juice Box Pro to the stock wiring harness and the
fuel injector for both cylinders as shown in Figure F.
Connect the orange wires from the Juice Box Pro to the left hand cylinder.
