ITBR001-318 www.twobros.com 2012 Kawasaki EX650 - 3
1. Remove the seat.
2. Remove the fuel tank.
3. Place the Juice Box Pro in the tail section and route the harness towards the front
of the bike.

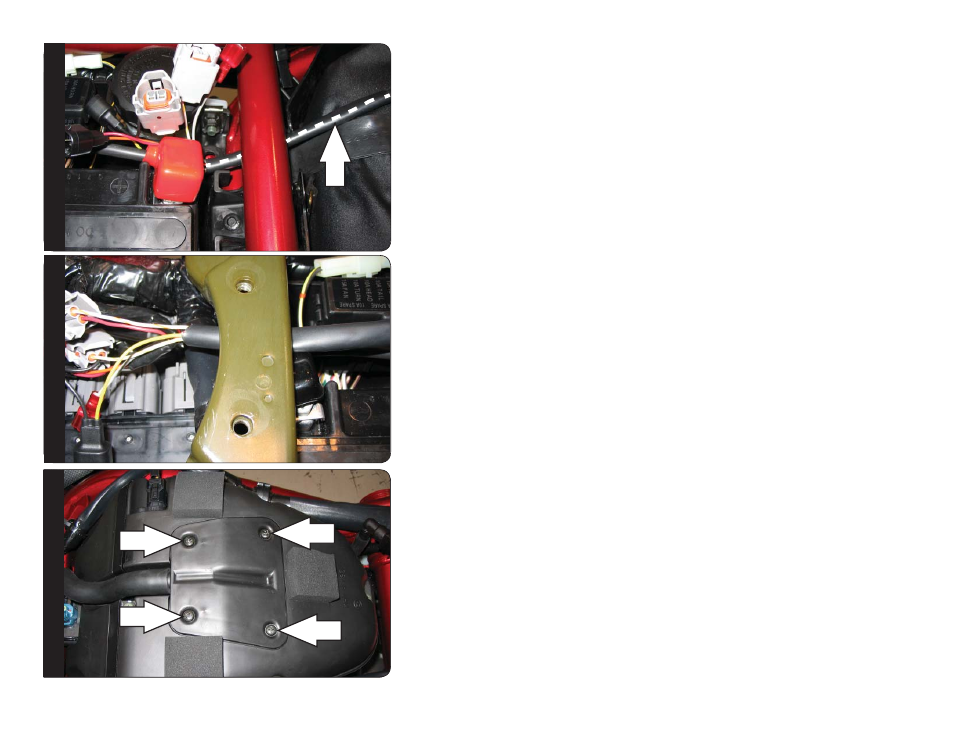

4. Route the Juice Box Pro harness under the frame crossover as shown in Figure A.
5. Route the Juice Box Pro harness under the fuel tank bracket as shown in Figure B.
6. Remove the bolts in the air box lid as shown in Figure C.
FIG
.A
FIG
.B
FIG
.C
harness
