Taylor-Wharton LABS Series User Manual
Page 12

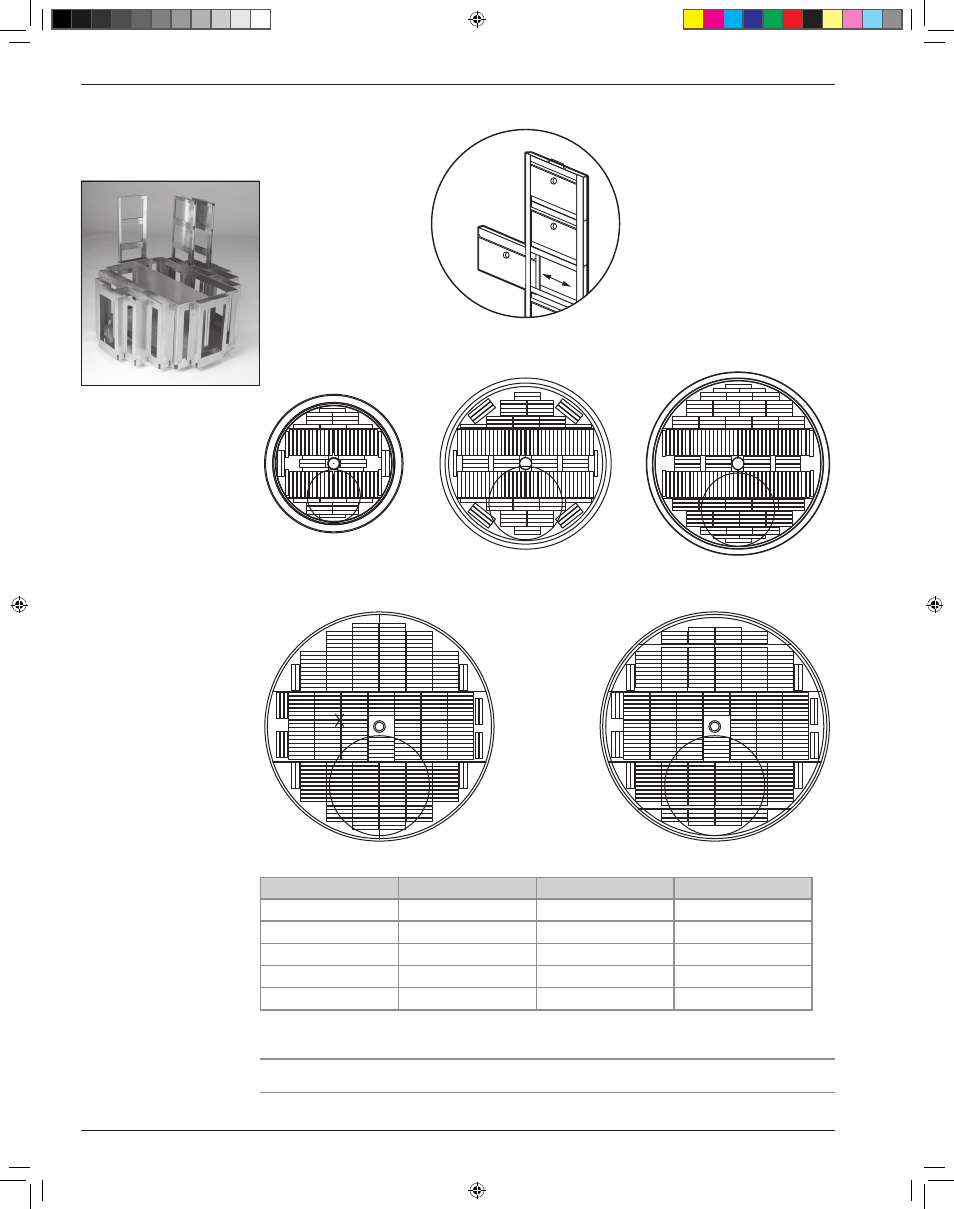

Figure 6.0
Rack Arrangements
for 50 ml Cassettes
10
LABS
LABS 80K
LABS 94K
LABS 20K
LABS 38K
LABS 40K
Typical
Cassette
Design
Part Number
Capacity
Frames
Cassettes
LABS 20K
924
132
924
LABS 38K
1582
226
1582
LABS 40K
1876
268
1876
LABS 80K
3381
483
3381
LABS 94K*
3864
483
3864
Figure 6.0 Rack Arrangements for 50 ml Cassettes
*LABS 94K use an 8-level rack. All other units utilize a 7-level rack configuration.
