Cooper Bussmann 858 - Manual (Page 41)

DOCUMENT 1025
REV. H
Instruction Manual
AGS-LED
858 LED Series
Sizes 1, 2, 3, 4 and 5
32

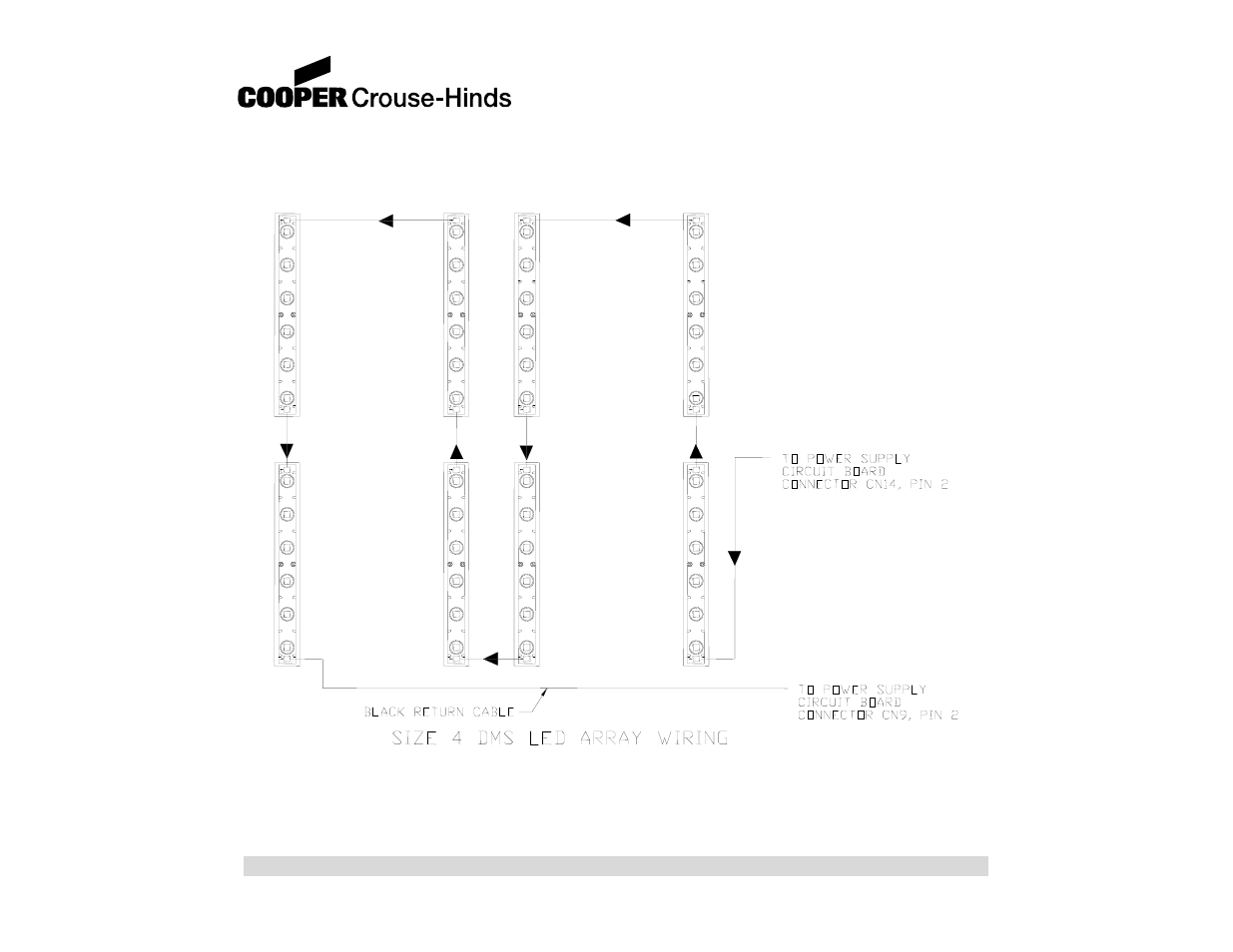

Figure 11. LED Array Wiring, Distance Marker (Reference Figure 7 for LED array orientations)
