Craftsman CRT/A - Manual (Page 8)

Router Table for the Craftsman
-7-
J1 J1
J2,K2 J2,K2
J2,K2 J2,K2
K1
K1

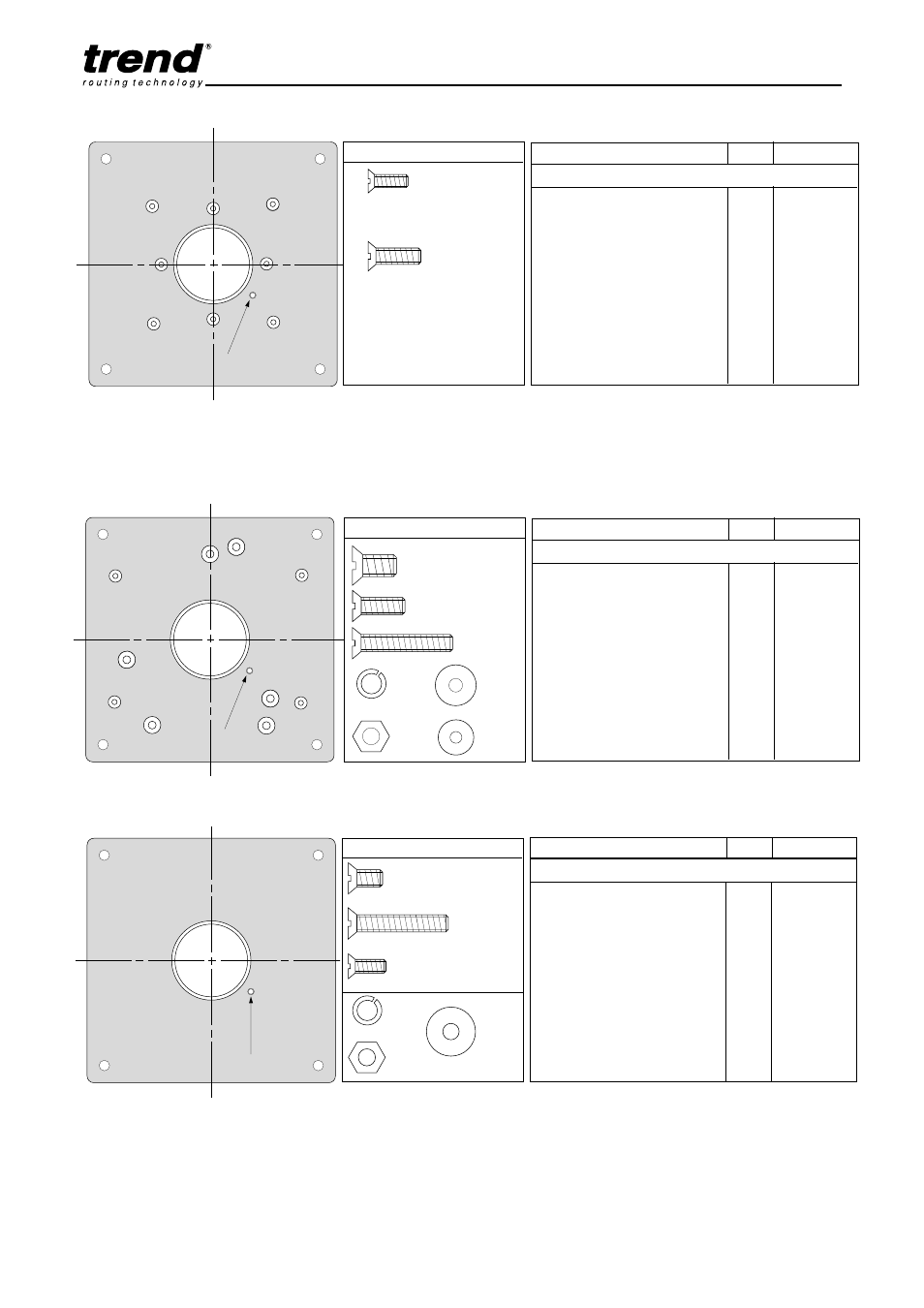

CRT/PLATE D (inc. Fixing Pack) supplied with Router Table CRT/D
Fixing Pack
Threaded hole
for Lead-On pin
Router Models Holes Fixings
Following models will fit insert plate
Makita 3612BR J1 M5 x 16
J2 M4 x 12
Makita 3612, K1 M5 x 16
Makita 3612C K2 M4 x 12
M4 x 12mm (4)
M5 x 16mm (2)
M M
M
L
L
L
N
N
N
N
CRT/PLATE E (inc. Fixing Pack) supplied with Router Table CRT/E
M6 x 12mm (3)
Fixing Pack Router Models Holes Fixings
Following models will fit insert plate
AEG OFSE2000 L M6 x 25
Bosch GOF1300ACE M M6 x 35 ■
Freud FT2000(E) L M6 x 12
Hitachi M12V/M12SA N M5 x 10
M5 x 10mm (4)
Spring
washer
(3)
M6
nut
(3)
3/4"x1/4"
Packing
Washer
(9)
6mm
Washer
(3)
M6 x 35mm (3)
Threaded hole
for Lead-On pin
Fixing Pack
Threaded hole
for Lead-On pin
Spring
washer
(3)
M6 nut
(3)
M6 x 12mm (3)
M6 x 35mm (3)
No.10-32UNF
x 3/8" (3)
3/4"x1/4"
Washer
(3)
CRT/PLATE X (inc. Fixing Pack) supplied with Router Table CRT/X
Router Models Holes Fixings
Require re-drilling of insert plate, see Section F
Skil 1835, 1875UI - see p.32 - No.10 - 32
UNF x 3/8"
Festo OF900(E), OF2000(E) - M6 x 35 ▲
Hitachi FM8, ZK2008 - M6 x 35 ▲
◆ Remove plastic base of router before fitting router to insert plate
▲ Requires fitting of washer, spring washer and nut
● Requires user made packing piece/gasket, please see end of
section D on page 8
■ Requires fitting of washer, spring washer, nut and three 3/4"x1/4"
packing washers which are placed between plate and router base
for each fixing
