Router Table

for the Craftsman

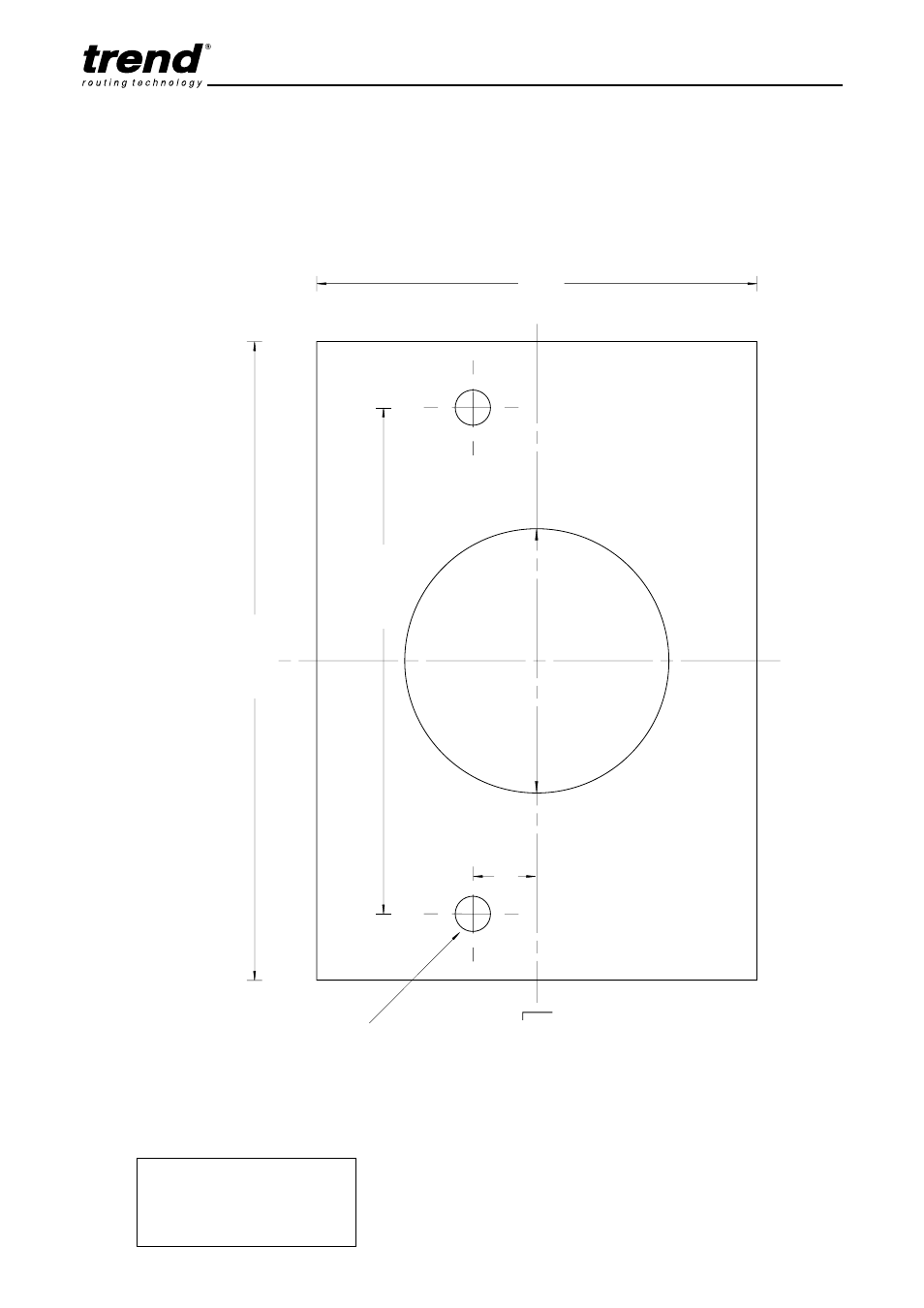

Plan showing gasket
required for
ELU OF97(E)

2 through holes

8mm diameter

14.5mm

60mm Ø

approx.

100mm

MATERIAL MIN. 6.35mm (1/4") THICK.

C

approx.

145mm

115mm
