368 Storage Center 5.5 System Manager User Guide
Additional Hardware
Viewing IO Module Status

To view IO modules and status
• Select IO Modules. The System Manager displays a list of IO modules with name,
position, status, and swap detected.
• To view IO module location, select an individual IO module. The IO Module is
emphasized in green. If there is a fault, the IO module is red.

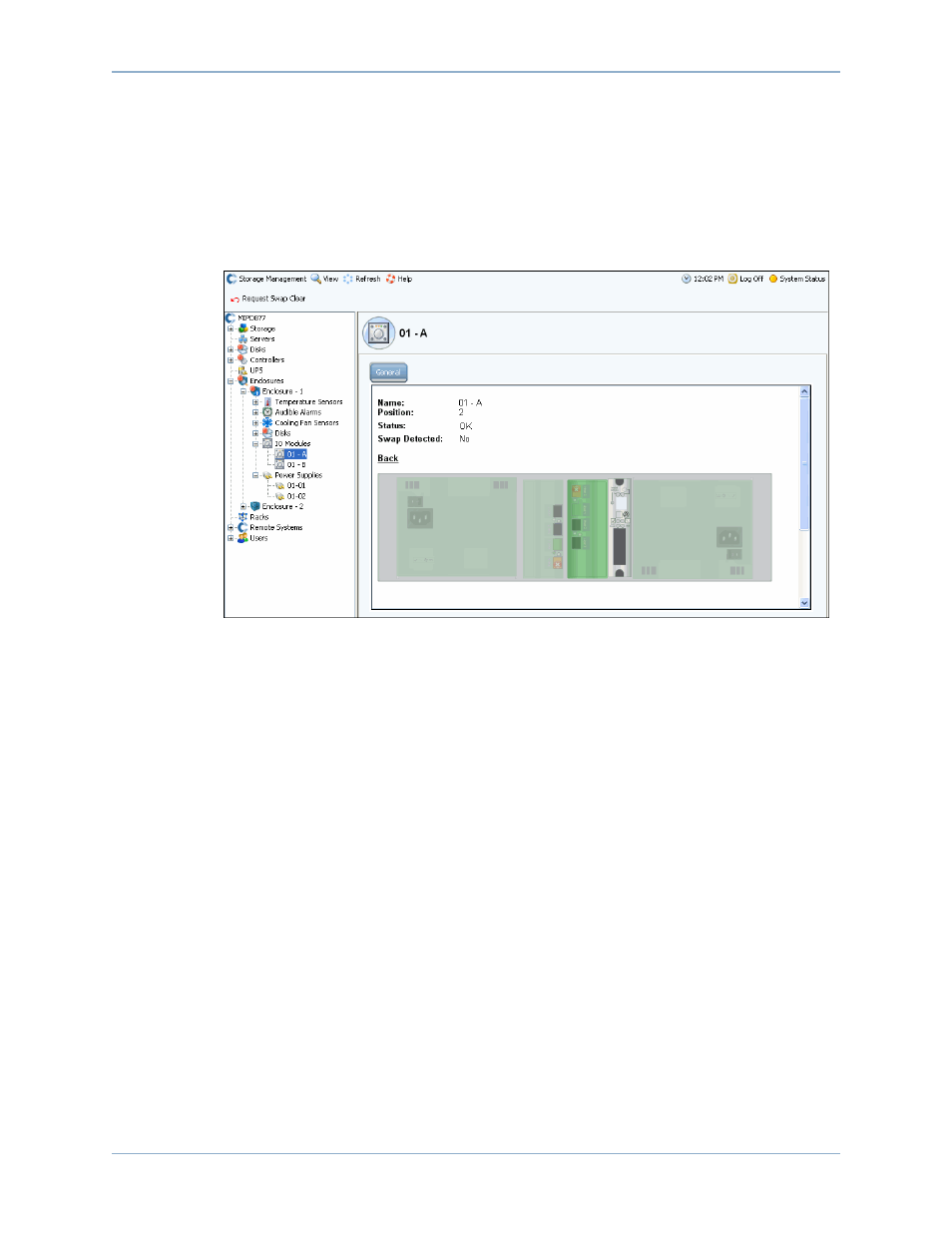

Figure 298. IO Module
