thoroughly. Remove the paper backing
from the adhesive on back of mounting
clip. Press the clip into the new location
so that the thermostat sensing bulb will
be positioned vertically with the capillary
at the bottom (see Figure 43). Slide the
thermostat sensing bulb into the clip.
IMPORTANT: Do not crimp capillary.

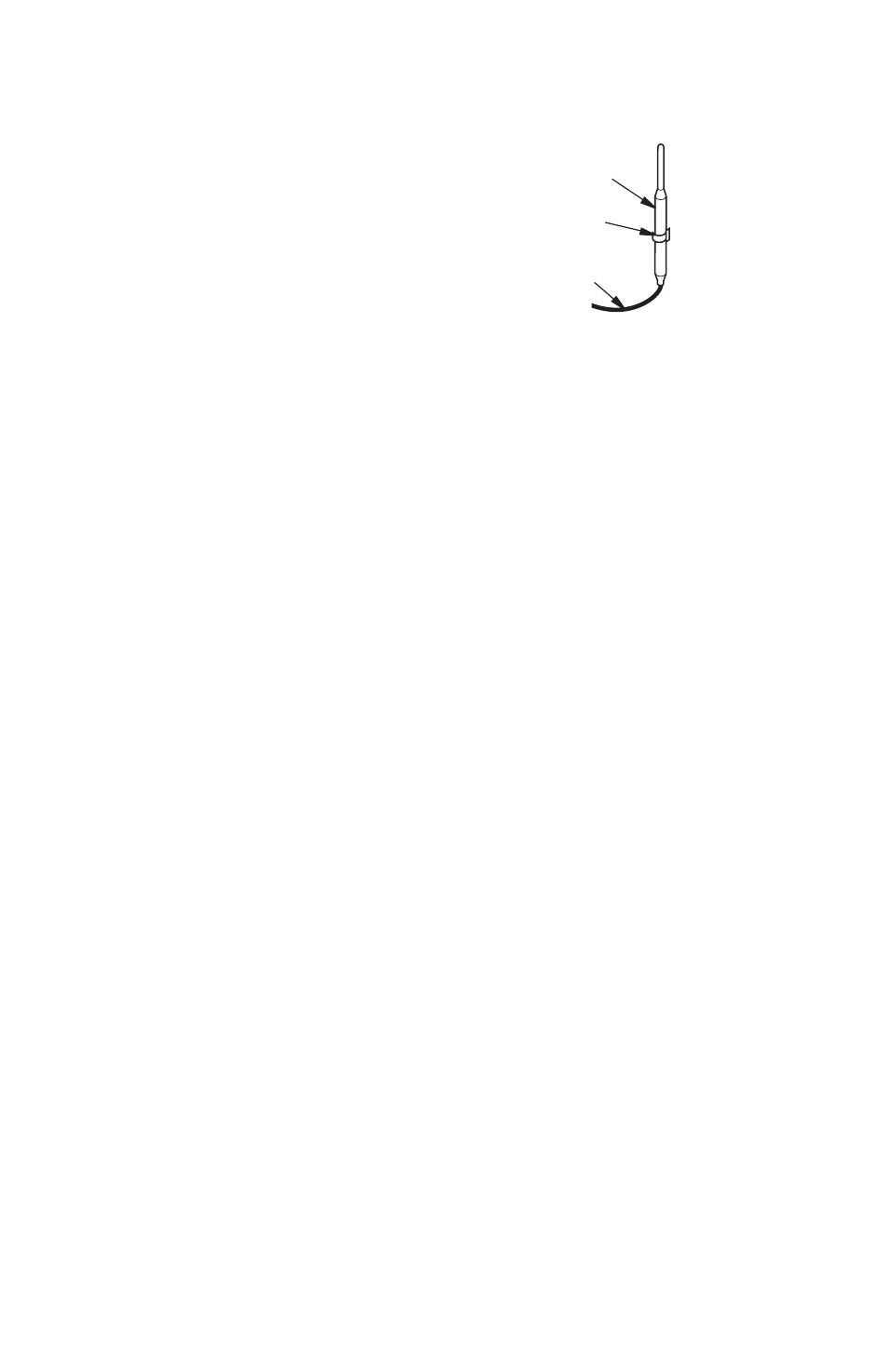

Figure 43 - Positioning the Thermostat
Sensing Bulb in the Vertical Position
with the Capillary at the Bottom
Capillary
Thermostat
Sensing Bulb
Do Not Crimp
Capillary
Adhesive-backed
Mounting Clip
OPTIONAL POSITIONING OF THERMOSTAT SENSING
bULb
Continued
SPECIFICATIONS
DUAL BURNER BILTMORE SPLIT OAK MODELS
CCL3018NTA
• 16,000/30,000 Btu/hr (Variable)
• Gas Type: Natural
• Ignition: Piezo
• Manifold Pressure: 3.5" W.C.
• Inlet Gas Pressure (in. of water):
Maximum 10.5" W.C. Minimum* 5" W.C.
CCL3924NTA
• 20,000/39,000 Btu/hr (Variable)
• Gas Type: Natural
• Ignition: Piezo
• Manifold Pressure: 3.5" W.C.
• Inlet Gas Pressure (in. of water):
Maximum 10.5" W.C. Minimum* 5" W.C.
* For the purpose of input adjustment
CCL3018PTA
• 16,000/30,000 Btu/hr (Variable)
• Gas Type: Propane/LP
• Ignition: Piezo
• Manifold Pressure: 8" W.C.
• Inlet Gas Pressure (in. of water):
Maximum 14" W.C. Minimum* 11" W.C.
CCL3924PTA
• 20,000/39,000 Btu/hr (Variable)
• Gas Type: Propane/LP
• Ignition: Piezo
• Manifold Pressure: 8" W.C.
• Inlet Gas Pressure (in. of water):
Maximum 14" W.C. Minimum* 11" W.C.
For the purpose of input adjustment
CRL2718PA
• 16,000/27,000 Btu/hr (Variable)
• Gas Type: Propane/LP
• Ignition: Piezo
• Manifold Pressure: 8" W.C.
• Inlet Gas Pressure (in. of water):
Maximum 14" W.C. Minimum* 11" W.C.
CRL3124PA
• 16,000/31,500 Btu/hr (Variable)
• Gas Type: Propane/LP
• Ignition: Piezo
• Manifold Pressure: 8" W.C.
• Inlet Gas Pressure (in. of water):
Maximum 14" W.C. Minimum* 11" W.C.
CRL2718NA
• 16,000/27,000 Btu/hr (Variable)
• Gas Type: Natural
• Ignition: Piezo
• Manifold Pressure: 3.5" W.C.
• Inlet Gas Pressure (in. of water):
Maximum 10.5" W.C. Minimum* 5" W.C.
CRL3124NA
• 16,000/31,500 Btu/hr (Variable)
• Gas Type: Natural
• Ignition: Piezo
• Manifold Pressure: 3.5" W.C.
• Inlet Gas Pressure (in. of water):
Maximum 10.5" W.C. Minimum* 5" W.C.
*
