INSTALLING LOGS
CAUTION: After installa-
tion and periodically thereafter,
check to ensure that no flame
comes in contact with any log.
With the heater set to HI, check
to see if flames contact any log. If
so, reposition logs according to
the log installation instructions
in this manual. Flames contact-
ing logs will create soot.
WARNING: Failure to position
the parts in accordance with these
diagrams or failure to use only
parts specifically approved with
this heater may result in property
damage or personal injury.
Dual Burner Biltmore Split Oak Models
CCL3018PTA/NTA, CCL3924PTA/NTA
Each log is marked with a number. These
numbers will help you identify the log when
installing. It is very important to install these
logs exactly as instructed. Do not modify logs.
Only use logs supplied with heater.
1. Place front log (#1) on grate fingers. Make
sure front log rests firmly between grate
fingers and grate base (see Figure 19).
2. Place base of middle log (#2) in U-shaped
slots of grate base. Cutout on right of
middle log should fit over burner (see Fig-
ure 20, page 17). Make sure front of middle
log is resting on tabs of grate base.
INSTALLATION
Continued

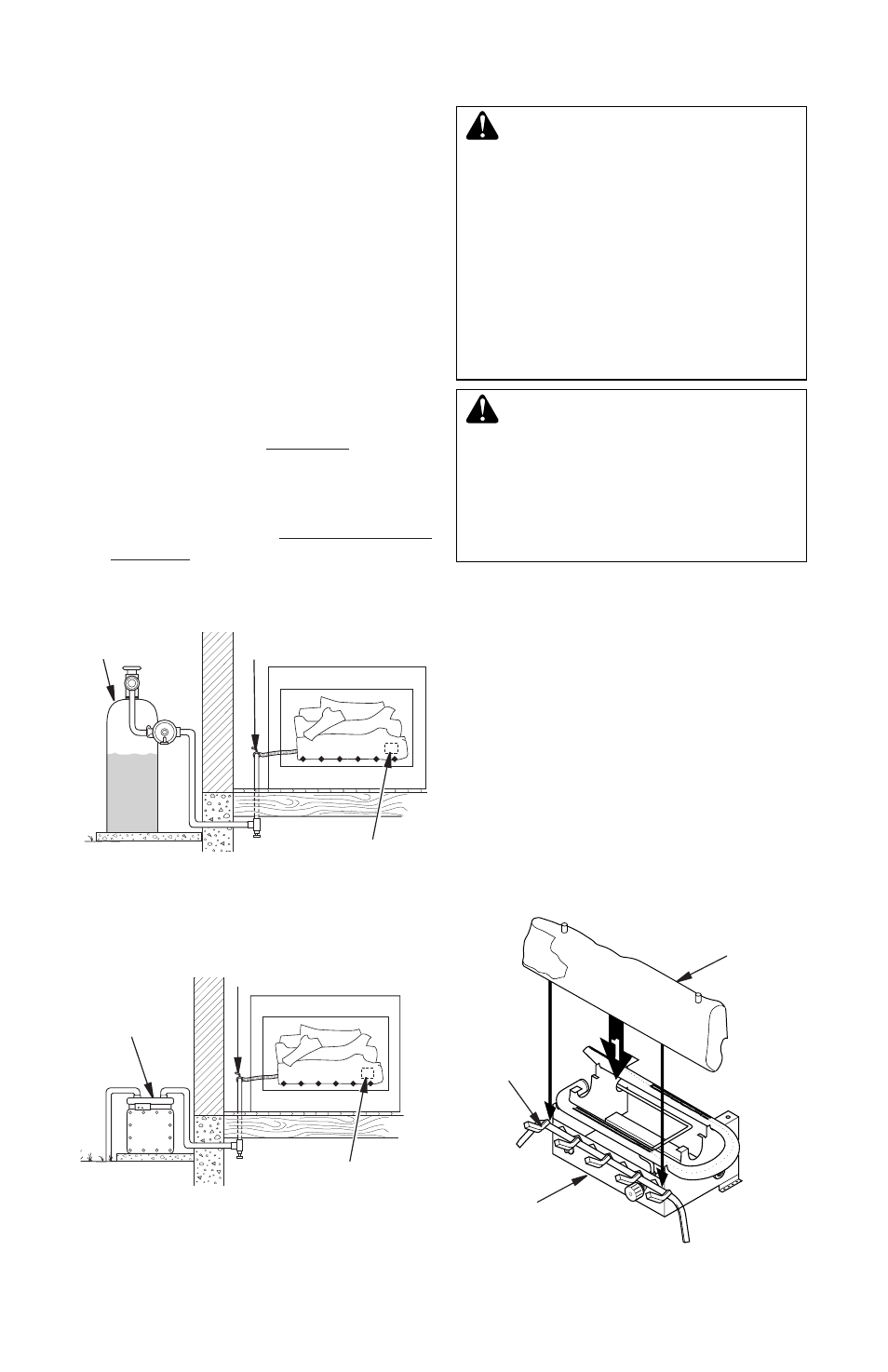

Figure 19 - Installing Front Log #1
(CCL3924PTA/NTA Shown)
Front
Log (#1)
Grate
Fingers
Grate
Base
2. Open main gas valve located on or near
gas meter for natural gas or open pro-
pane/LP supply tank valve.
3. Make sure control knob of heater is in the
OFF position.
4. Check all joints from equipment shutoff
valve to thermostat gas valve (Ther-
mostat-Controlled Models) or to control
valve (Manually-Controlled Models) (see
Figures 17 and 18). Apply noncorrosive
leak detection fluid to all joints. Bubbles
forming show a leak.
5. Correct all leaks at once.
6. Light heater (see Operation, page 19
[manually-controlled models] or page
21 [thermostatically-controlled models]).
Check all other internal joints for leaks.
7. Turn off heater (see To Turn Off Gas to
Appliance, page 20 [manually-controlled
models] or page 22 [thermostatically-
controlled models]).
Figure 17 - Checking Gas Joints
(Propane/LP Gas Models)
Equipment
Shutoff Valve Propane/LP
Supply Tank
Thermostat Gas Valve or
Control Valve Location
Figure 18 - Checking Gas Joints (Natural
Gas Models)
Gas Meter
Equipment
Shutoff Valve
Thermostat Gas Valve or
Control Valve Location
