Dell Inspiron 1520 (Mid 2007) - Manual (Page 165)

Adding and Replacing Parts
165
Replacing the DIMM A Memory Module
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on the back of the computer).
1 Align the notch in the module edge connector with the tab in the
connector slot.
2 Slide the module firmly into the slot at a 45-degree angle, and rotate the
module down until it clicks into place. If you do not feel the click, remove
the module and reinstall it.
NOTE:
If the memory module is not installed properly, the computer may not boot.
No error message indicates this failure.
3 Replace the memory module cover.
4 Replace the keyboard and hinge cover.
5 Insert the battery into the battery bay, or connect the AC adapter to your
computer and an electrical outlet.
6 Turn on the computer.
As the computer boots, it detects the additional memory and automatically
updates the system configuration information.

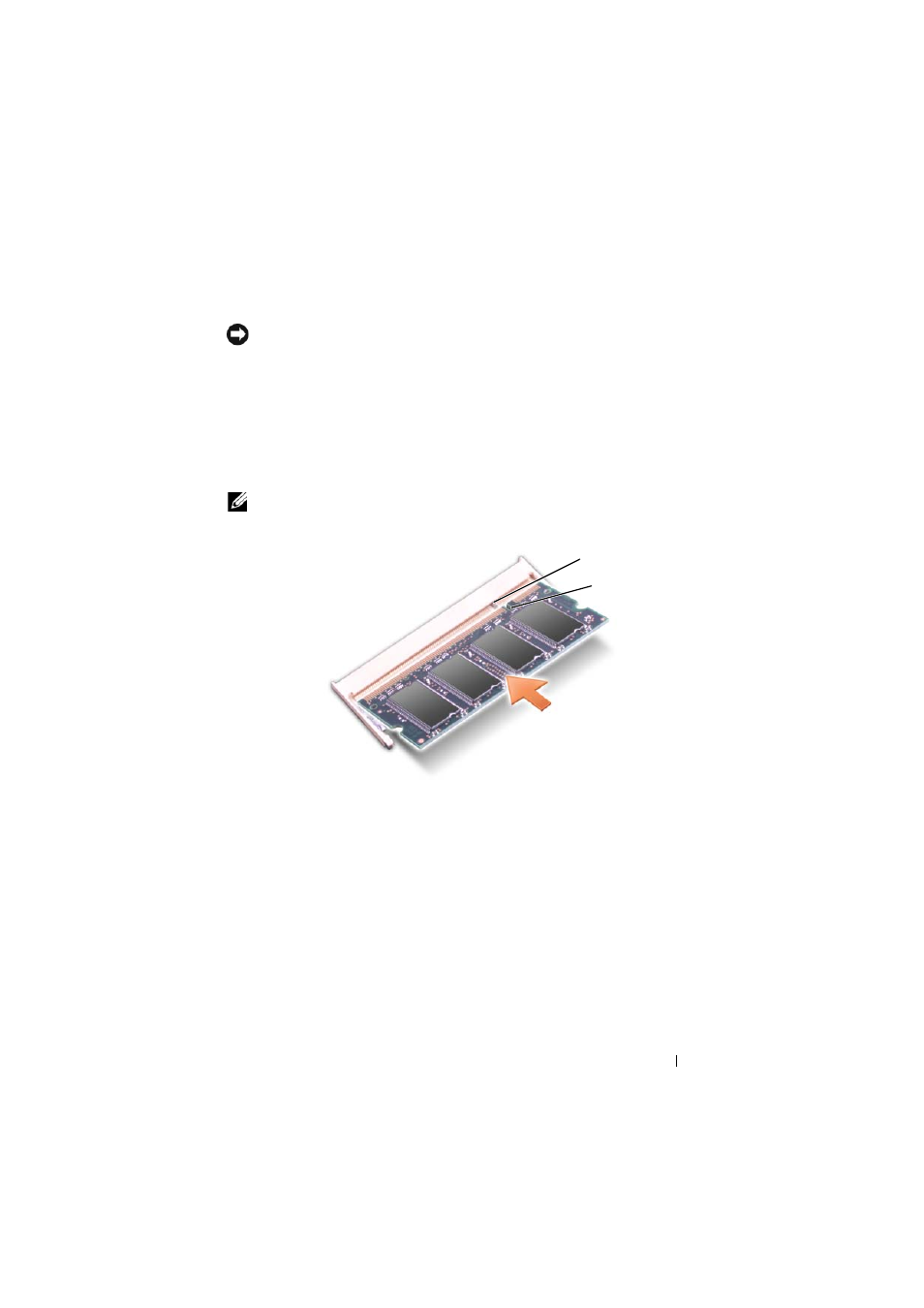

1 tab 2 notch
1
2
