Replacing the speaker – Dell XPS M1530 (M1530, Late 2007) User Manual
Page 86

86

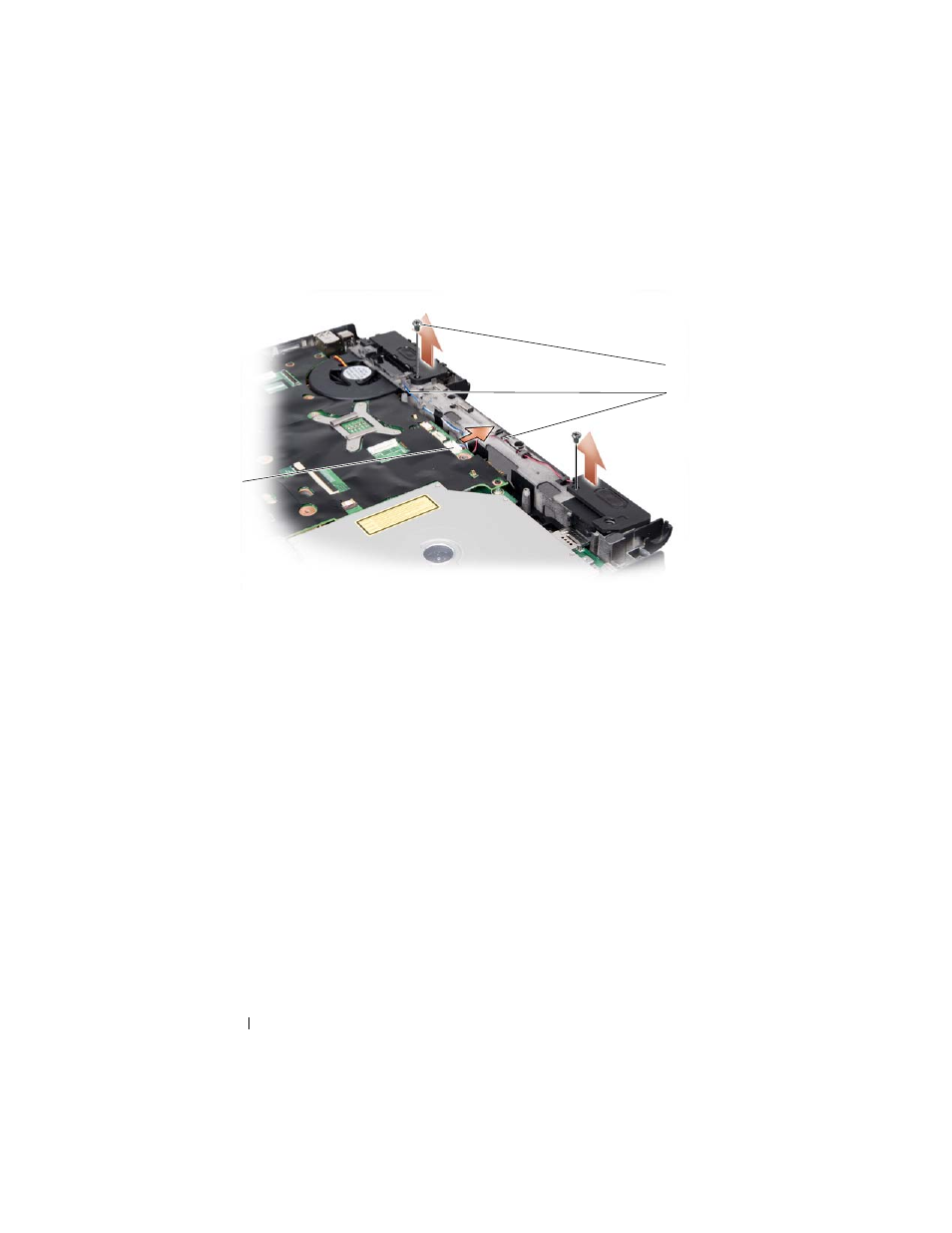

Speaker
11 Disconnect the speaker cable connector from the system board.
12 Make note of the speaker cable routing.
13 Remove the speakers.
Replacing the Speaker
1 Replace the speakers and the speaker cables.
2 Connect the speaker cable connector to the system board.
3 Replace the two speaker screws (one on each speaker) that secure the
speakers to the computer base.
4 Connect the button board cable connector to the system board.
5 Replace the palm rest (see "Replacing the Palm Rest" on page 79).
6 Replace the display assembly (see "Replacing the Display Assembly" on
1 speaker cable
connector
2 screw (2)
3 speaker cable
routing
2
3
1
