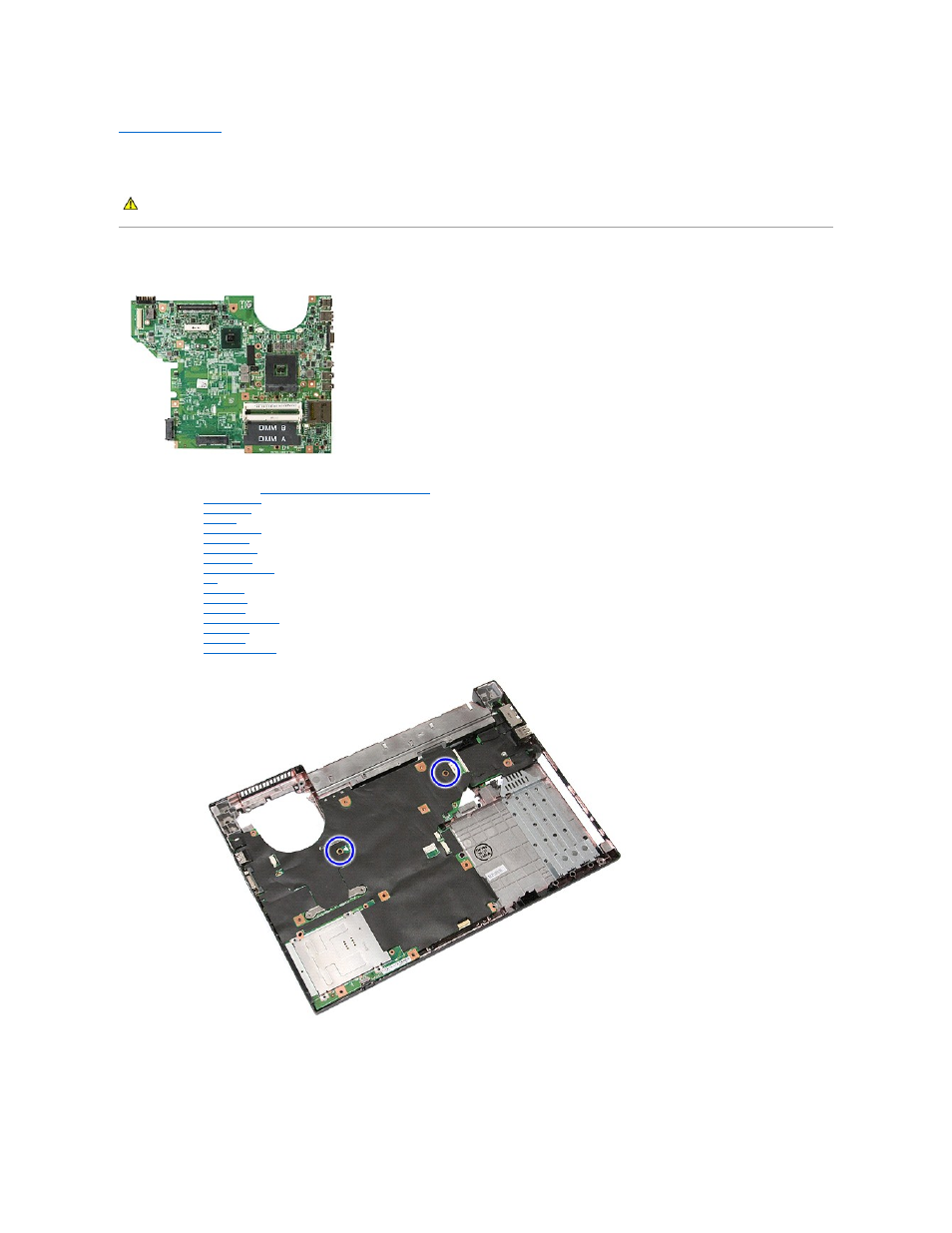

System Board
Dell™ Latitude™ E5410 Discrete Service Manual
Removing the System Board
1.
Follow the procedures in
Before Working Inside Your Computer
.
2.
Remove the
memory card
from the computer.
3.
Remove the
phone SIM
from the computer.
4.
Remove the
battery
from the computer.
5.
Remove the
access panel
from the computer.
6.
Remove the
hard drive
from the computer.
7.
Remove the
optical drive
from the computer.
8.
Remove the
WLAN card
from the computer.
9.
Remove the
coin-cell battery
from the computer.
10.
Remove the
fan
from the computer.
11.
Remove the
heat sink
from the computer.
12.
Remove the
LED cover
from the computer.
13.
Remove the
keyboard
from the computer.
14.
Remove the
display assembly
from the computer.
15.
Remove the
LED board
from the computer.
16.
Remove the
palm rest
from the computer.
17.
Remove the
Bluetooth board
from the computer.
18.
Remove the screws that secure the system board to the computer chassis.
19.
Lift the system board at an angle and remove it.
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
