Modem Daughter Card
Dell™ Latitude™ E5410 Discrete Service Manual

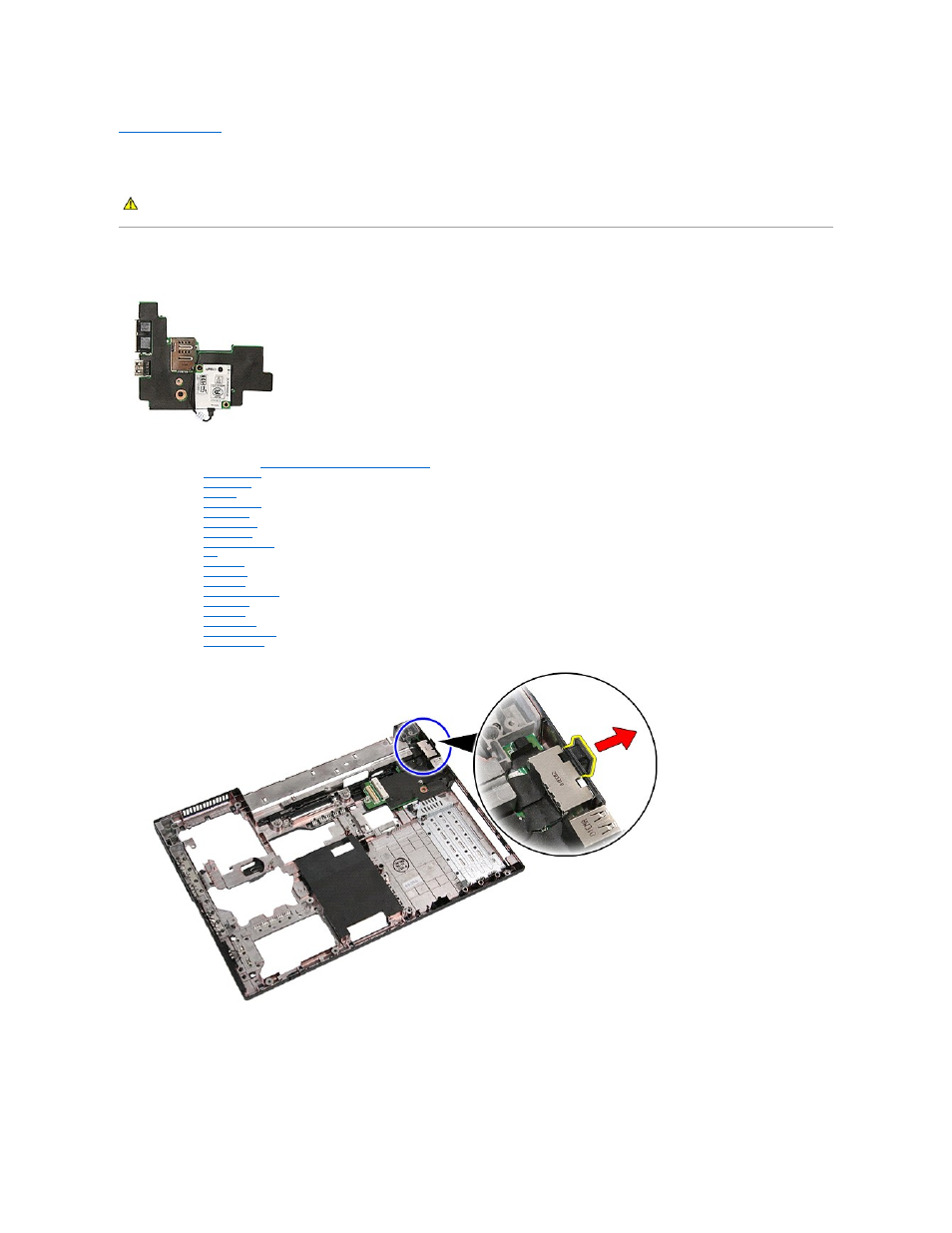

Removing the Modem Daughter Card
1.
Follow the procedures in
Before Working Inside Your Computer
.
2.
Remove the
memory card
from the computer.
3.
Remove the
phone SIM
from the computer.
4.
Remove the
battery
from the computer.
5.
Remove the
access panel
from the computer.
6.
Remove the
hard drive
from the computer.
7.
Remove the
optical drive
from the computer.
8.
Remove the
WLAN card
from the computer.
9.
Remove the
coin-cell battery
from the computer.
10.
Remove the
fan
from the computer.
11.
Remove the
heat sink
from the computer.
12.
Remove the
LED cover
from the computer.
13.
Remove the
keyboard
from the computer.
14.
Remove the
display assembly
from the computer.
15.
Remove the
LED board
from the computer.
16.
Remove the
palm rest
from the computer.
17.
Remove the
WWAN card
from the computer.
18.
Remove the
Bluetooth board
from the computer.
19.
Remove the
system board
from the computer.
20.
Remove the modem connector rubber cover if present.
21.
Lift up the modem daughter card and remove.
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
