Procedure – Dell Inspiron Small Desktop (3647, Late 2013) User Manual
Page 47
Removing
the
System
Board |
47
Procedure
1
Disconnect all cables connected to the system board. See "System-Board
Components" on page 11.
2
Make note of the cable routing and remove the cables from the routing guides.
3
Remove the screws that secure the system board to the chassis.
4
Lift the system board out of the chassis.

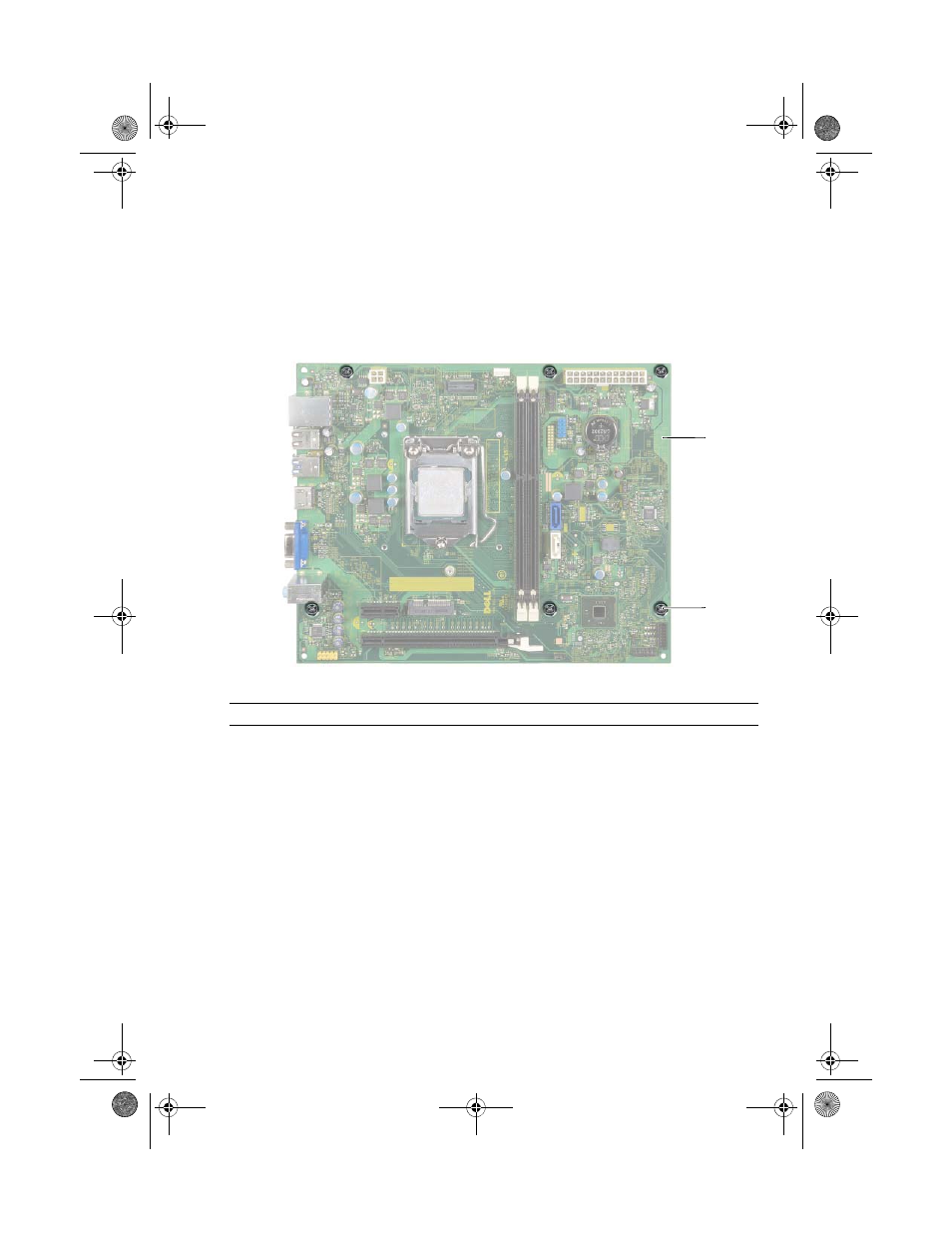

1
system board
2
screws (6)
1
2
book.book Page 47 Monday, November 25, 2013 3:53 PM
