Removing the Primary Hard-Drive | 31
Removing the Primary Hard-Drive
WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 7. After working inside your computer, follow the instructions in
"After Working Inside Your Computer" on page 9. For more safety best practices,
see the Regulatory Compliance home page at dell.com/regulatory_compliance.
CAUTION: To avoid data loss, do not remove the hard drive while the computer is
On or in Sleep state.
CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.
Prerequisites
1 Remove the computer cover. See "Removing the Computer Cover" on page 12.
2 Remove the fan shroud. See "Removing the Fan Shroud" on page 14.
3 Remove the front bezel. See "Removing the Front Bezel" on page 23.
4 Remove the drive cage. See "Removing the Drive Cage" on page 26.
Procedure
1 Remove the screws that secure the hard-drive brackets to the primary hard-drive.
2 Push and slide the primary hard-drive off the hard-drive brackets.

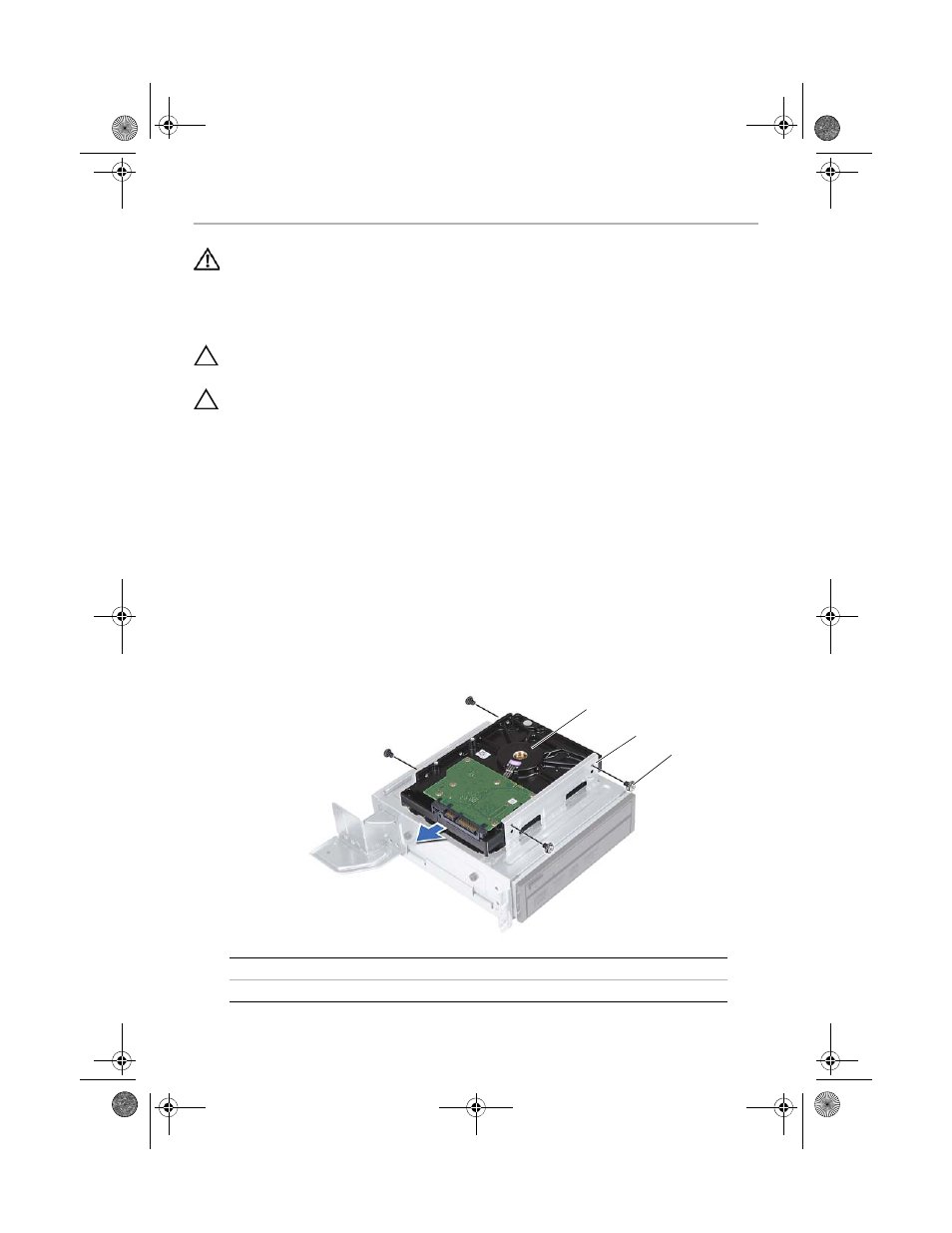

1 primary hard-drive 2 primary hard-drive assembly
3 screws (4)
2
3
1
