Technical Overview | 11

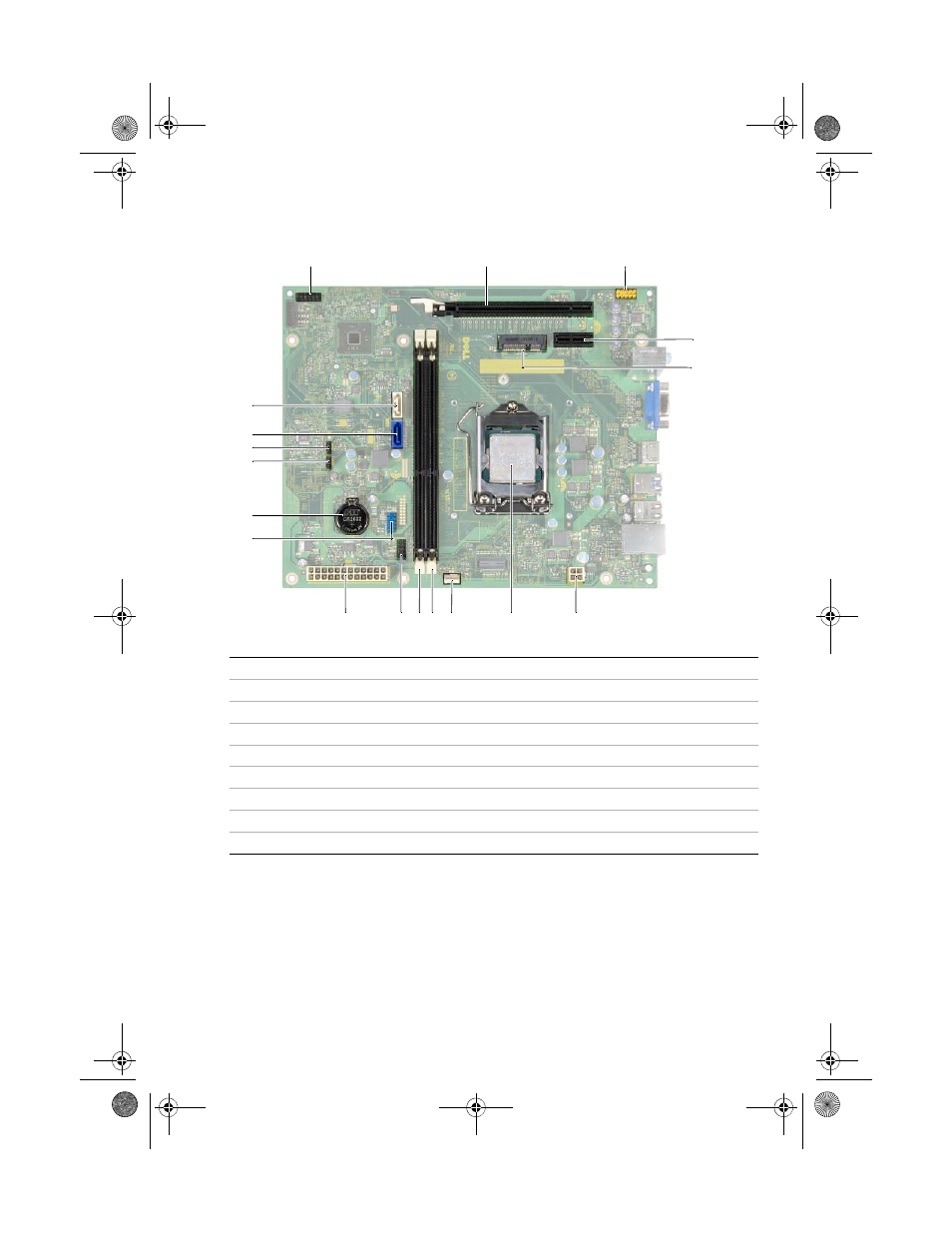

System-Board Components
1 power button connector (LEDH1) 2 PCI-Express x16 card slot (SLOT2)
3 front-panel audio connector (AUDF1) 4 PCI-Express x1 card slot (SLOT1)
5 Mini-Card slot (MINI1) 6 power connector (ATX2)
7 processor socket 8 processor fan connector (FNCPU1)
9 memory-module connector (DIMM1) 10 memory-module connector (DIMM2)
11 front panel USB connector (USBF1) 12 main power connector (ATX1)
13 front panel USB connector (USBF2) 14 battery socket (BT1)
15 CMOS clear jumper (CMCLR1) 16 Password clear jumper (PWCLR1)
17 SATA connector (SATA 0) 18 SATA connector (SATA 1)
1 2 3
5
6 12 8
14
4
13
16
18
17
11 10 9 7
15
