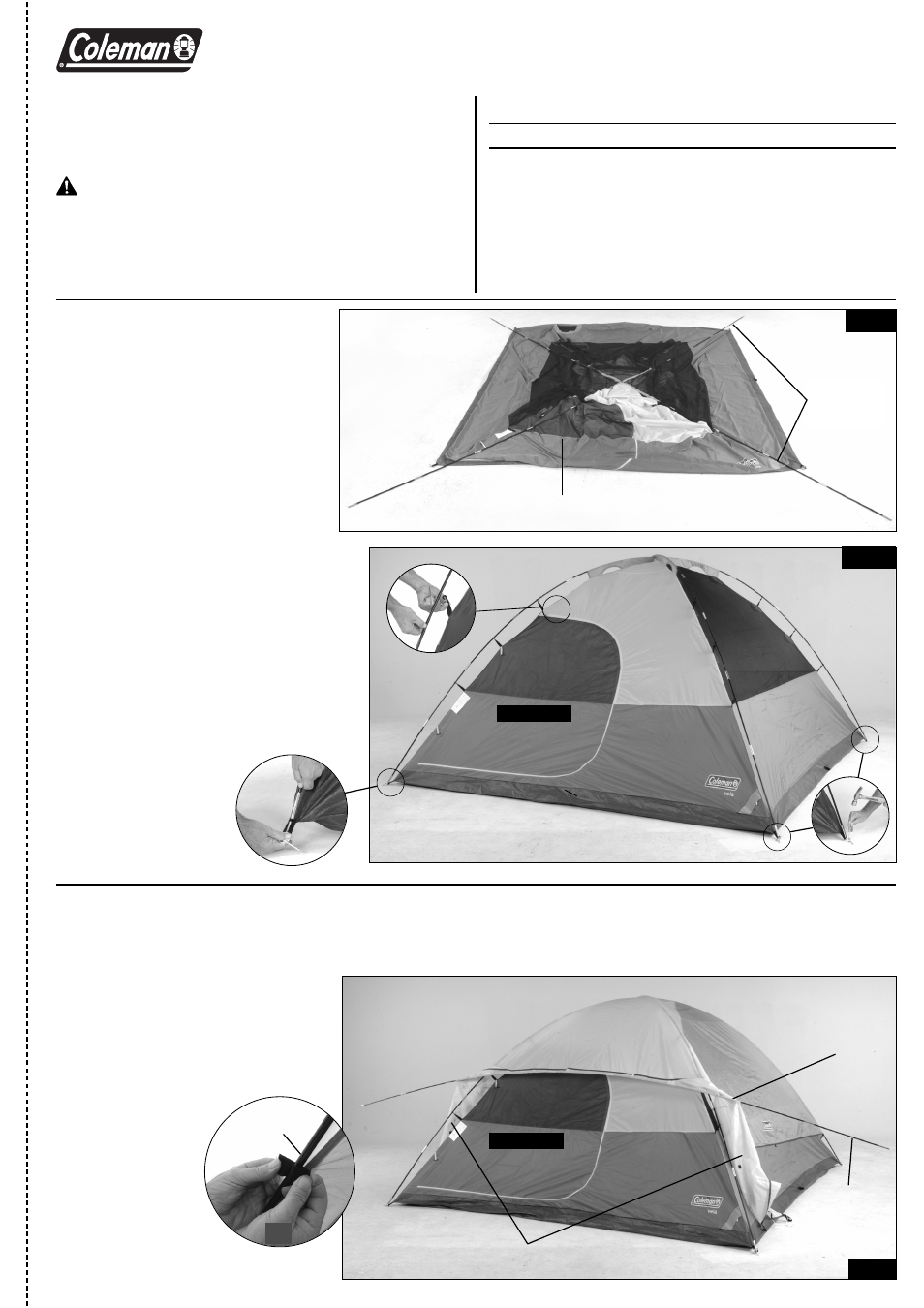

Vela, Tent 12’ x 11, Before you begin

background image

4. Insert one end of each main pole into pins

in front & back corners of tent. (Fig. 2A)

5. Go to opposite end of each pole and gradu-

ally apply pressure to the pole forming an
arch. Insert the pin into the pole end at the
corners of tent. (Fig. 2 & 2A)

6. Attach frame clips along edges of tent to

main poles. (Fig. 2B)

7. Stretch corners and sides of tent until floor

is taut then hammer stakes through loops
to secure. (Fig. 2C)

STITCH LINE

VELA

TM

TENT 12’ X 11’

MODEL 2000001132

Before you begin

Read all instructions before set up.
• Select a level campsite clear of rocks, branches, and other hard
or sharp objects, to install your tent.

WARNING: Keep clear of overhead power lines.

• Do not set up your tent under trees.
• For best results in windy conditions, position end of tent into

the wind.

• Enlist the help of at least one other person to assist you when

it is time to assemble the tent.

To Set Up Tent

1. Unfold tent and spread out on a clean,

level surface with the door facing the
desired direction. (Fig. 1)

2. Assemble two main tent poles by inter-

locking longer, black shock-corded,
poles.

3. Insert main poles through sleeves in

top of tent forming an “X” as shown.
(Fig. 1)

Fig. 2

Parts and Components

Description

Part Number

Main Poles, Long, Black (2)

5010000509

Vestibule Pole, Thin, Black (1)

5010000510

Rainfly

5010000511

1. Assemble the shock-corded, long, vestibule pole.
2. Unfold rainfly; then drape over tent with vestibule flaps positioned on both sides of the door. (Fig. 3)
3. Slide the vestibule pole through sleeve

under front edge of rainfly. (Fig. 3)

4. Locate all hook and loop fasteners on

underside of rainfly; then wrap around
the main pole to secure. (Fig. 3A)

To Attach Rainfly

(continued on other side)

Fig. 1

Door

Fig. 3

Vestibule

Pole

Sleeve on Front

of Rainfly

3A

Long, Black,

Shock-corded

Main Poles

Main Poles

Vestibule Flaps

2B

2C

2A

Door

Door
