Setting Up Your TV 13

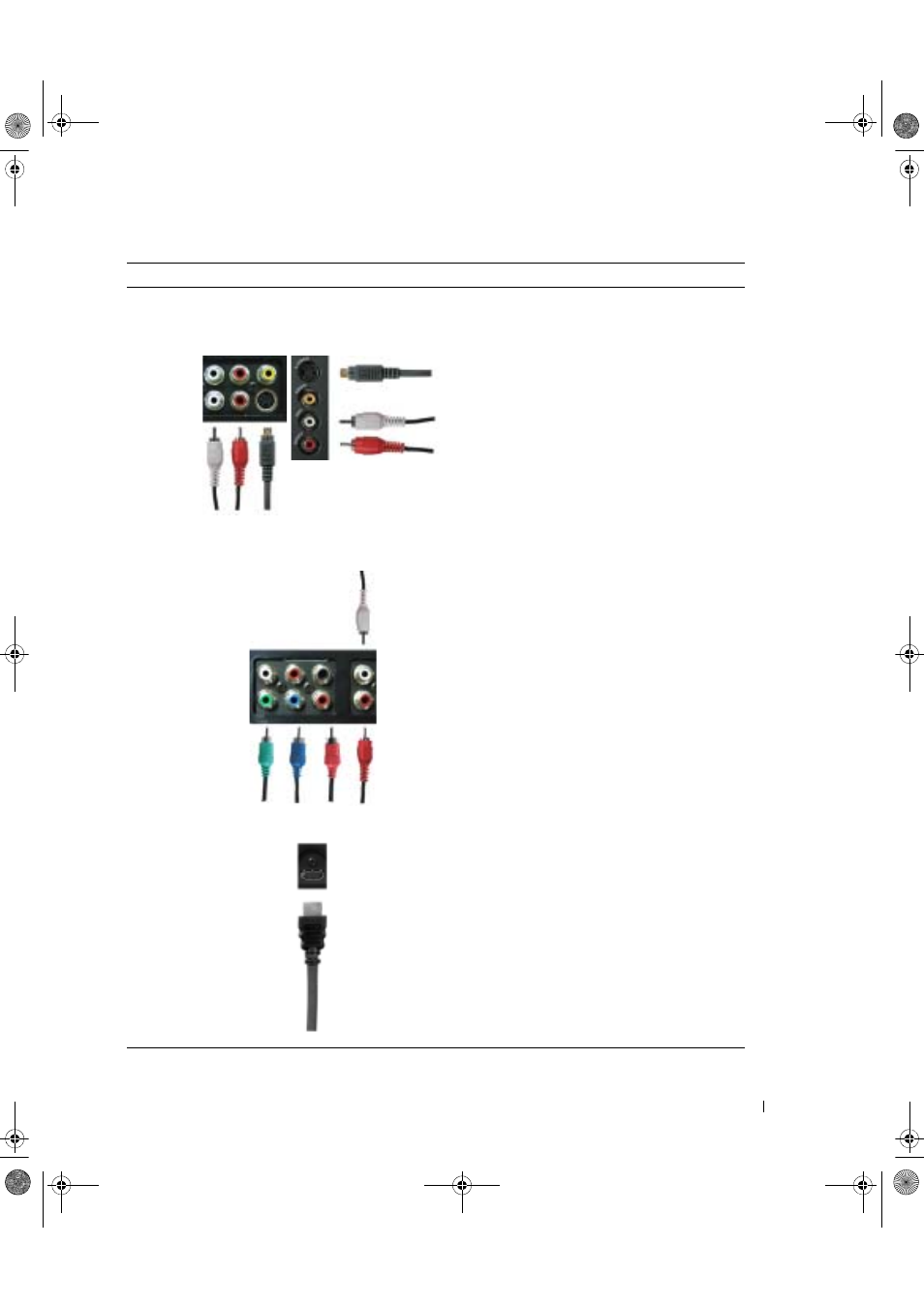

Better S-Video cable / AV2 IN (Bottom)
S-Video, Left, Right (Left)
The S-Video connector splits the video signal
into two signals, black-and-white and color. If
you are using the S-Video connector, you also
need to connect the audio cables. To locate the
S-Video connectors, see "Left View" on page 6
and "Bottom View" on page 7.
Best Component (YPbPr) cable / AV3 IN The component connectors split the video
signal into three signals, two color and one
black-and-white. If you are using the
component connectors, you also need to
connect the audio cables. To locate the
component connectors, see "Bottom View" on
page 7.
Excellent HDMI cable / HDMI IN HDMI (High Definition Multimedia Interface)
assures that the best video signal is always sent
from source (HDTV signal, DVD player) to the
TV. This is achieved by allowing uncompressed
video and multi-channel audio data to be sent
to the display device through a single cable. To
locate the connector, see "Bottom View" on
page 7.
Quality Cable and Connector When to Use
