Processor | 67
Replacing the Processor
Procedure
1 Unpack the new processor, being careful not to touch the underside of
the processor.
CAUTION: Ground yourself by touching an unpainted metal surface.
2 If the release lever on the socket is not fully extended, move it to that position.
CAUTION: You must position the processor correctly in the processor socket to
avoid permanent damage to the processor.
3 Orient the alignment notches on the processor with the alignment tabs on
the socket.
4 Align the pin-1 corners of the processor and socket.
CAUTION: Ensure that the processor cover notch is positioned underneath the
alignment post.
5 When the processor is fully seated in the socket, close the processor cover.
6 Pivot the release lever down and place it under the tab on the processor cover.

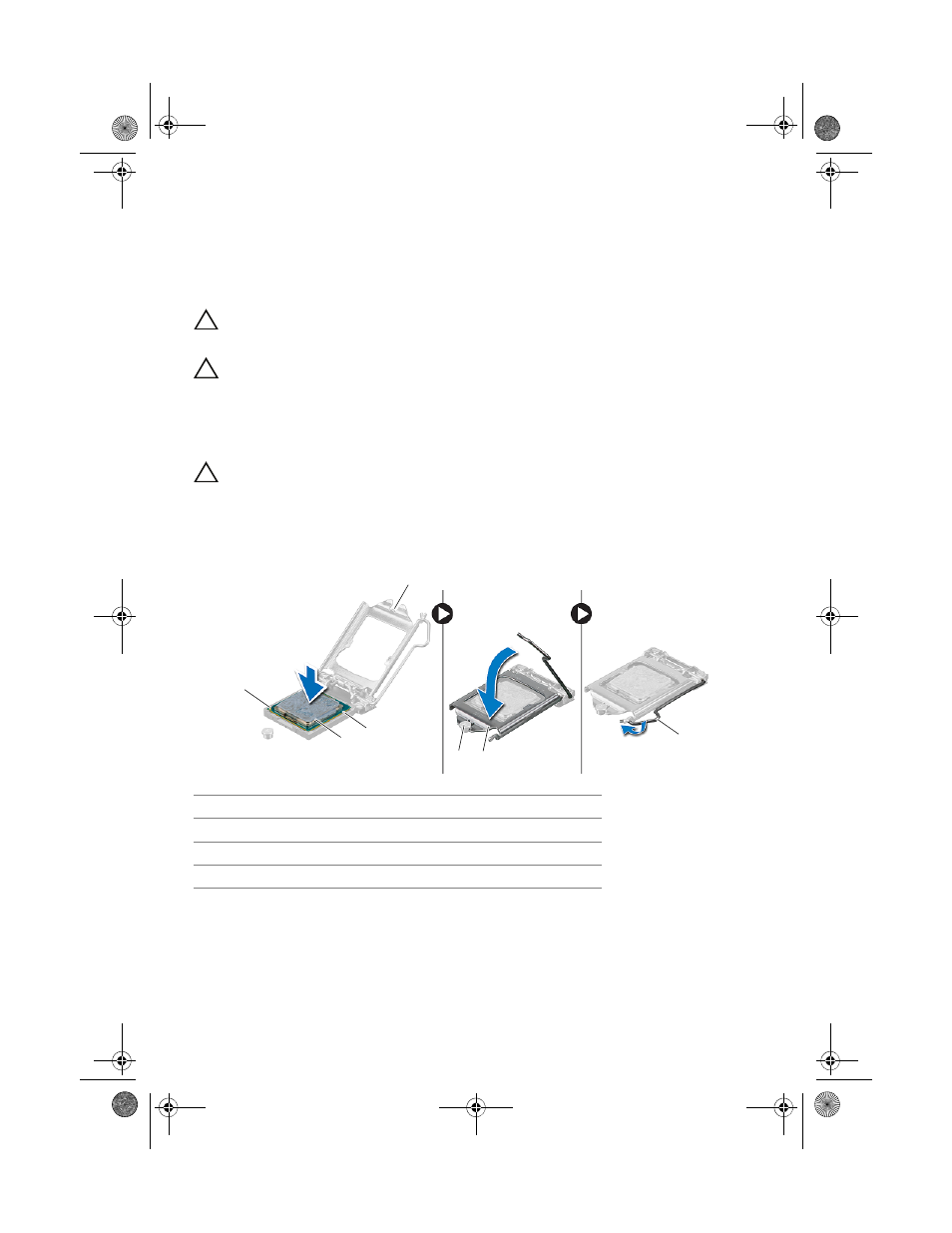

1 processor pin-1 indicator 2 processor
3 alignment notches (2) 4 processor cover notch
5 alignment post 6 processor cover
7 release lever
1
2
3
5 6
7
4
