Internal Card With Bluetooth® Wireless Technology
Dell™ Latitude™ D520 Service Manual
Removing the Card
Removing the Card
If you ordered an internal card with Bluetooth wireless technology with your computer, it is already installed.
1. Follow the procedures in Before You Begin .
2. Remove the hard drive (see Hard Drive ).
3. Pull the card cable connector out of the system board connector.
4. Pull the cable to remove the card from the computer.
Back to Contents Page
CAUTION: Before performing the following procedures, read the safety instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching a connector on the back panel of
the computer.

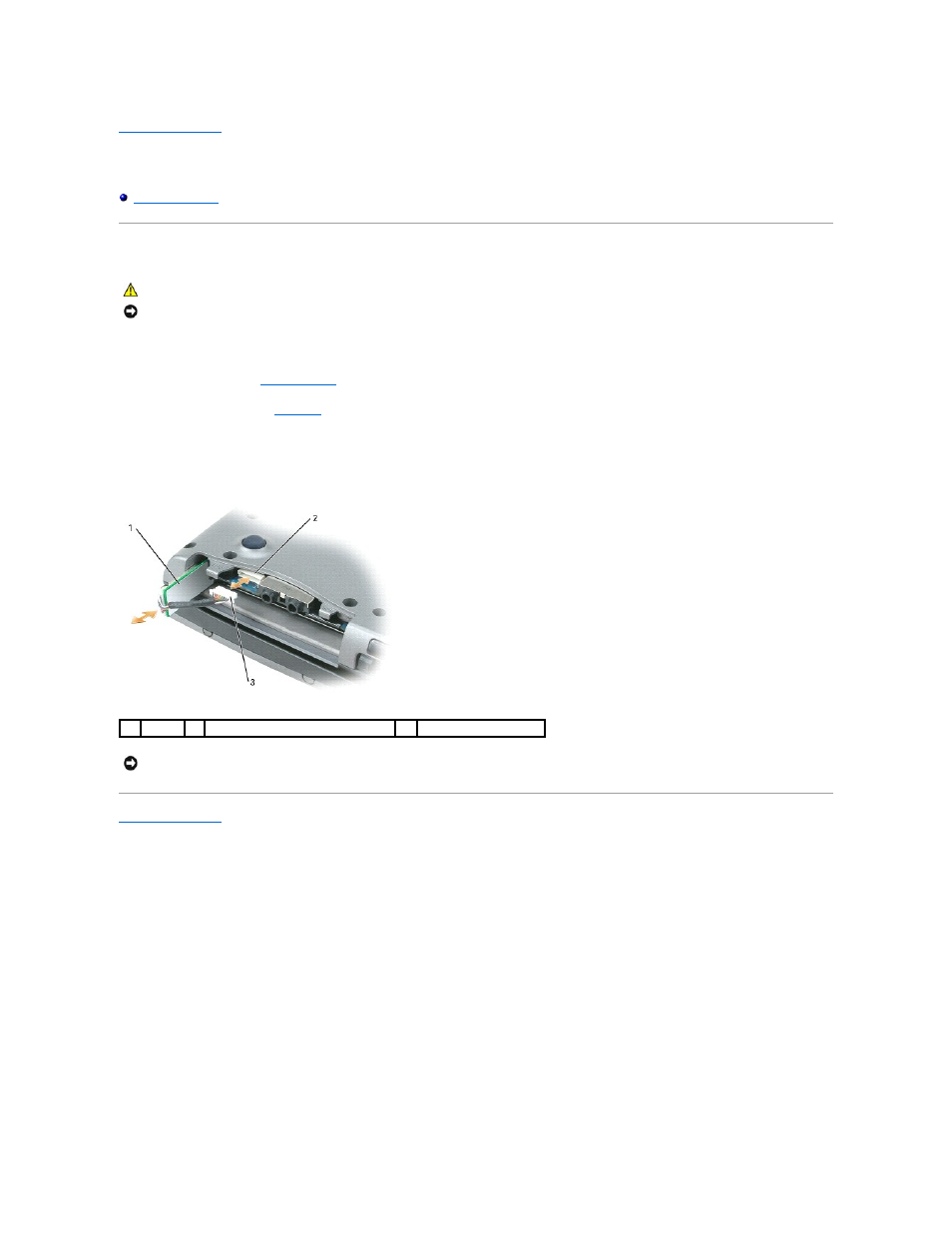

1 card 2 system board connector 3 cable connector
NOTICE: Be careful when removing the card to avoid damaging the card, card cable, or surrounding components.
