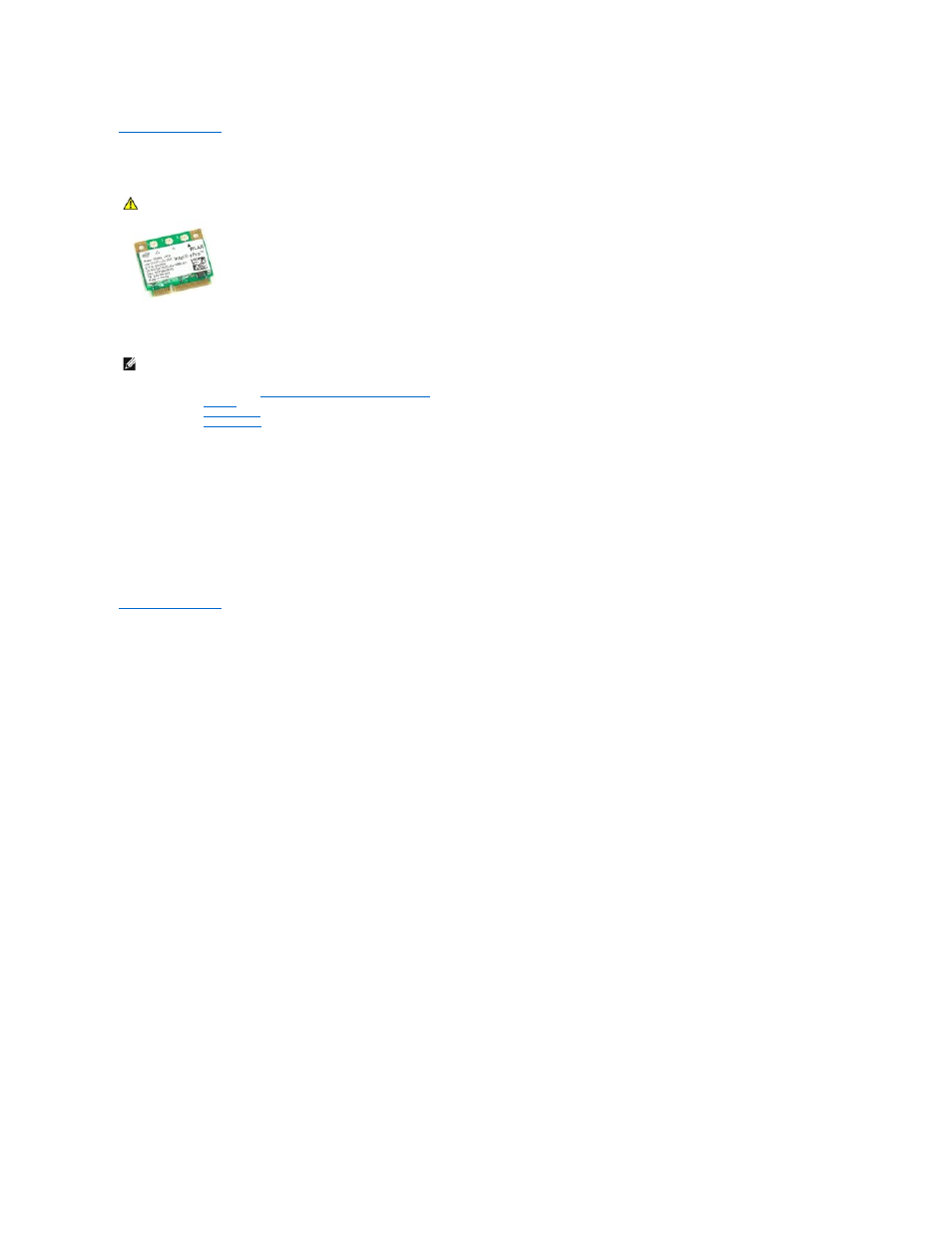

Wireless Large Area Network (WLAN) Card
Dell™ Latitude™ Z600 Service Manual
Removing the WLAN Card
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the battery from the computer.
3. Remove the hinge covers from the computer.
4. Remove the access panel from the computer.
5. Disconnect the antenna cables from the WLAN card.
6. Remove the screws that secure the WLAN card to the computer.
7. Remove the WLAN card from the computer at a 45-degree angle.
Replacing the Wireless LAN Card
To replace the WLAN card, perform the above steps in reverse order.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.
