Tower-to-Rack Conversion Guide

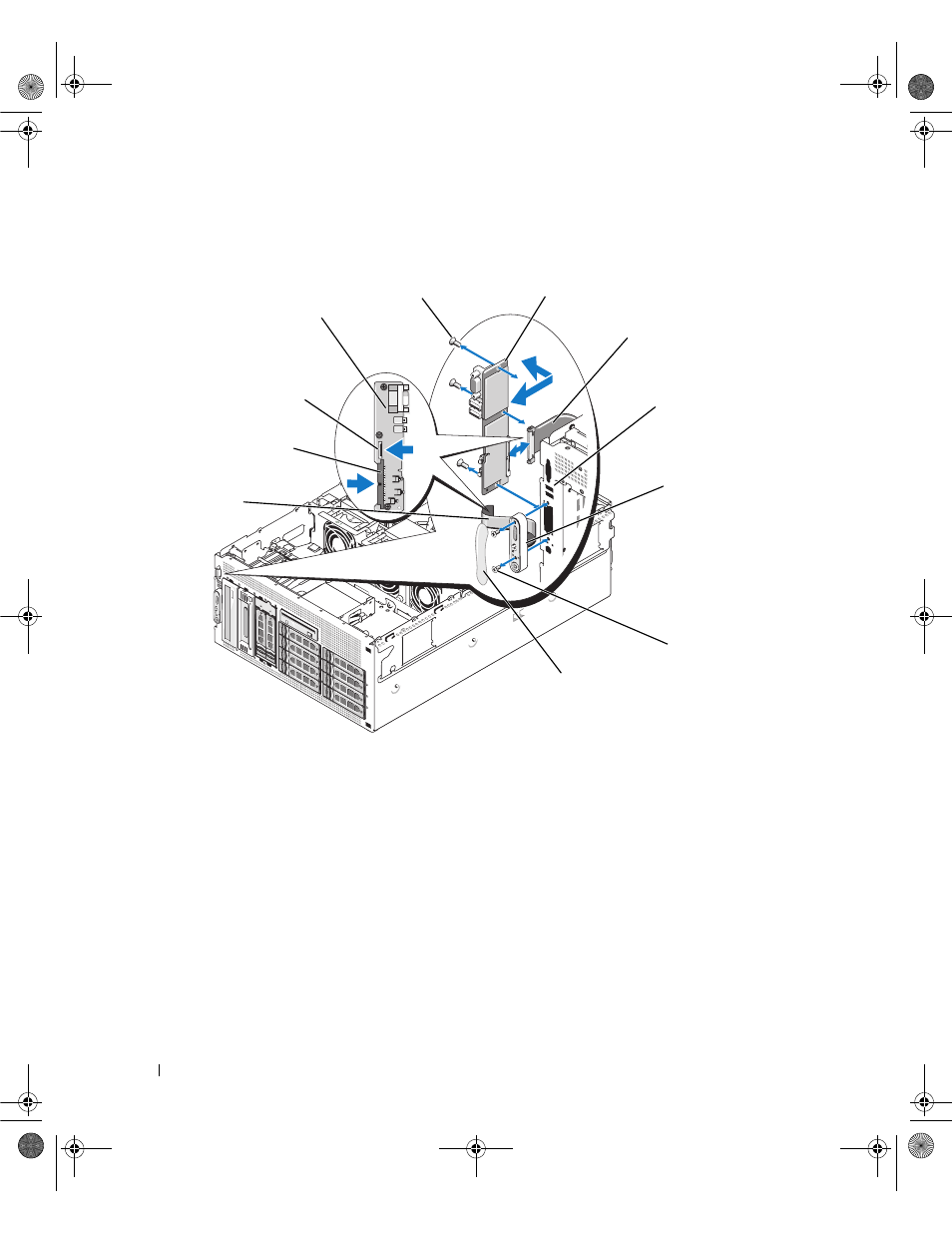

Figure 1-4.

Removing the Control Panel Assembly

1

control panel board (top view)

2

M3 x 5 T10 Torx panhead
screw (3)

3

control panel board (bottom
view)

4

control panel cable

5

tower chassis cutouts

6

display module

7

M3 x 12 T10 Torx panhead
screw (2)

8

display module label

9

display module cable

10

control panel cable connector

11

display module cable
connector

5

1

2

3

4

6

8

9

10

11

7
