Tower-to-Rack Conversion Guide
15
Removing the Tower Front Plate
Using a T-10 Torx driver, remove the 29 screws that secure the tower front plate to the system chassis. See
Figure 1-5.

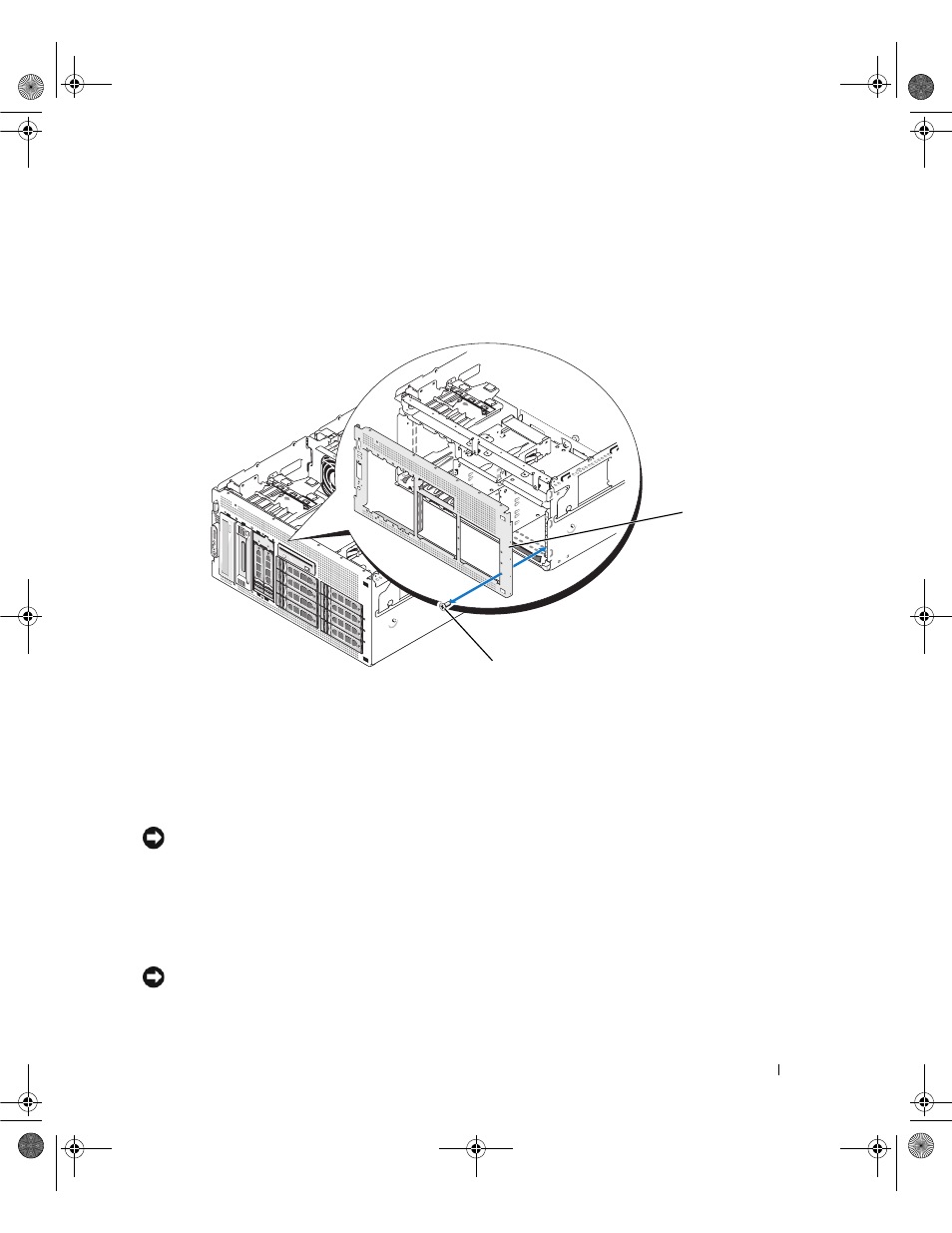

Figure 1-5. Removing the Tower Front Plate
Installing the Rack Front Plate
1 Using a T-10 Torx driver, install the 34 screws (that came in your kit) to secure the rack front panel to
the system chassis. See Figure 1-6.
NOTICE: Do not over-tighten the screws.
2 Attach the rack ear pieces to the system chassis.
a Align the flanges of the right rack ear piece against the right side of the system chassis with the
upper flange of the piece inserted between the double walls on the chassis. See Figure 1-6.
b Align the flanges with the screw holes and secure the ear piece with four 6-32 flathead Phillips
screws. See Figure 1-6.
NOTICE: Do not over-tighten the screws.
c Repeat for the left rack ear piece.
1 tower front plate 2 M3 x 8 T10 Torx flathead screw
(29)
1
2
