Table 1 -3 lists the drive indicator codes. Different codes are displayed as drive events occur in the system. For example, if a hard-drive fails, the "drive failed"
code appears. After the drive is selected for removal, the "drive being prepared for removal" code appears, followed by the "drive ready for insertion or
removal" code. After the replacement drive is installed, the "drive being prepared for operation" code appears, followed by the "drive online" code.
Table 1-3. SCSI Hard-Drive Status Indicator Codes
Back-Panel Features and Indicators

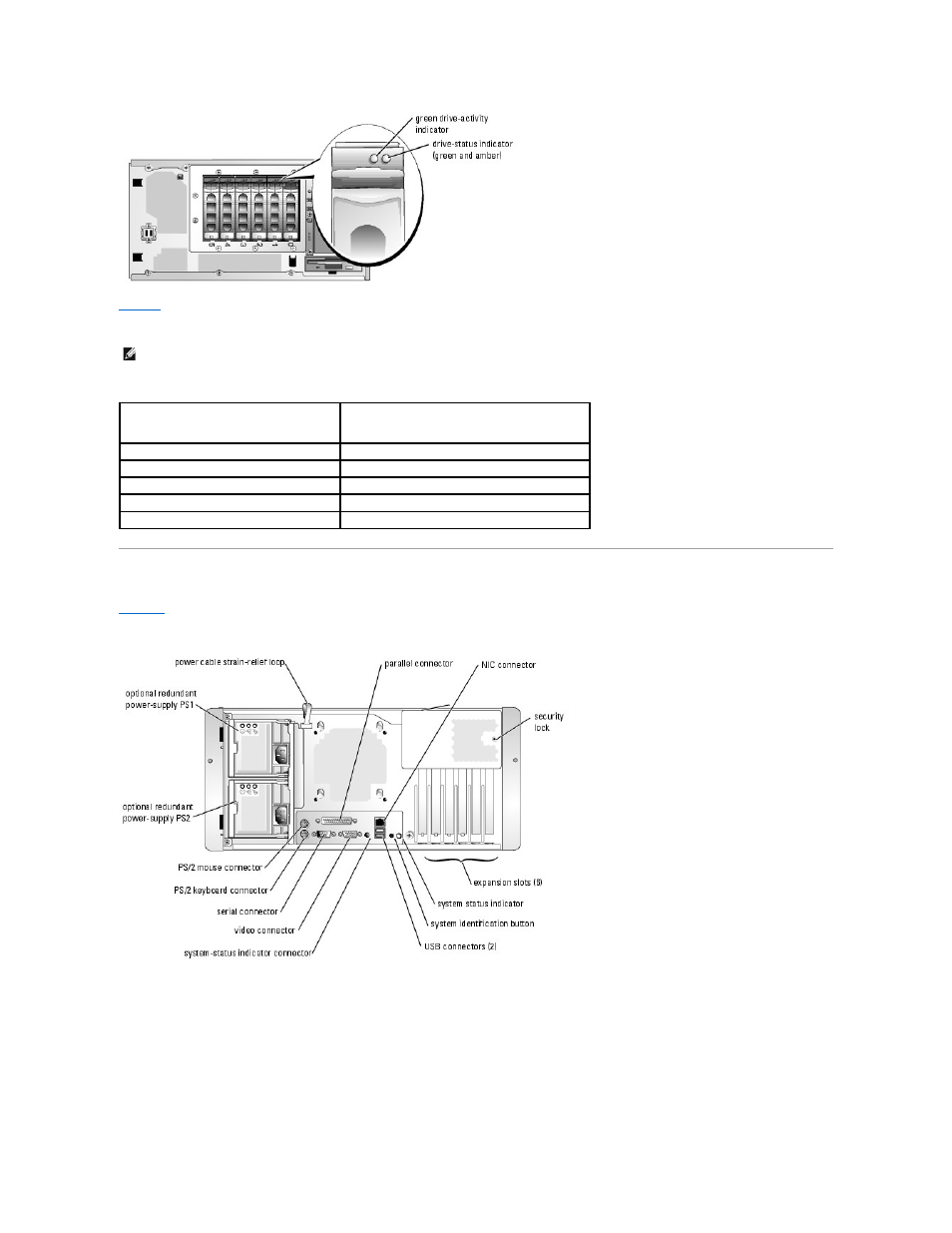

Figure 1 -4 shows the controls, indicators, and connectors located on the system's back panel.
Figure 1-4. Back-Panel Features
Connecting External Devices
When connecting external devices to your system, follow these guidelines:
l Most devices must be connected to a specific connector and device drivers must be installed before the device operates properly. (Device drivers are
normally included with your operating system software or with the device itself.) See the documentation that accompanied the device for specific
installation and configuration instructions.
l Always attach external devices while your system is turned off. Next, turn on any external devices before you turn on the system (unless the
documentation for the device specifies otherwise).
NOTE: If RAID is not activated, only the "drive online" indicator pattern appears. The drive-activity indicator also blinks when the drive is being accessed.
Drive-Status Indicator Indicator Code
Drive bay empty Off
Drive being prepared for operation, drive online Steady green
Drive being identified or prepared for removal Blinks green three times per second at equal intervals
Drive rebuilding Blinks green once per second
Drive offline or failed Steady amber
