Char-Broil Charbroil QUickset 463666508 User Manual
Page 18
11

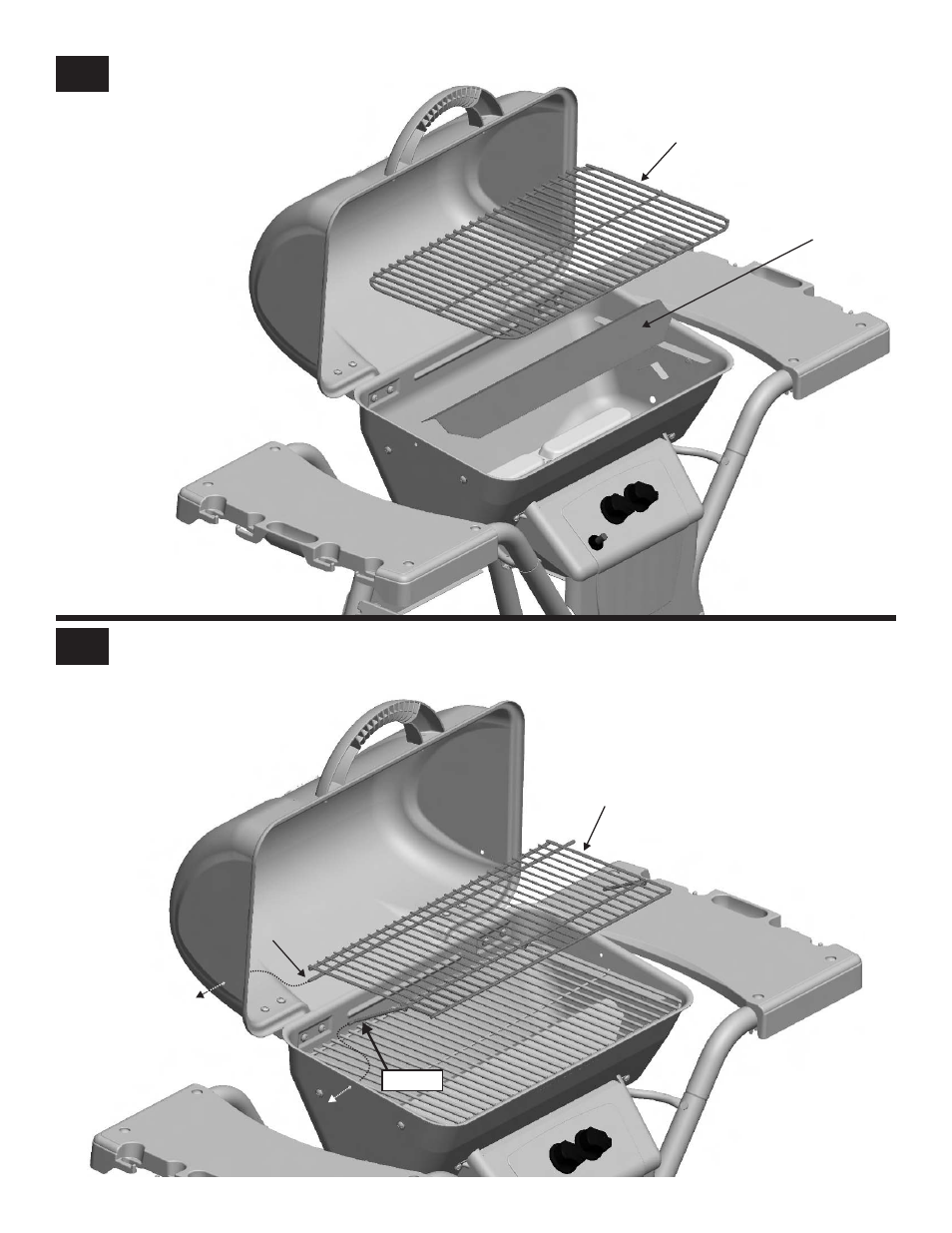

Place vaporiser bar onto V-shaped bar rests inside firebox. Place cooking grate onto firebox.
Cooking grate
80012776
Vaporiser bar
80012775
NOTE:
The vaporiser
bar must be inserted
into firebox at an angle
in order to fit beneath
cooking grate supports.
12
Insert ends of SwingAway pivot wire into holes in sides of grill lid. Insert ends of SwingAway leg wire into holes in sides of
firebox. NOTE: Pivot and leg wires, running side-to-side, should be under wires running front-to-back. If pivot and leg wires
are on top, SwingAway is installed upside-down.
Pivot
wire
Leg wire
SwingAway
80012777
18 • 463666508
