7
1/4-20 Tee Knob
Qty. 8
1/4-20x2”
Carriage Bolt
Qty. 8
Push Fastener
Qty. 4

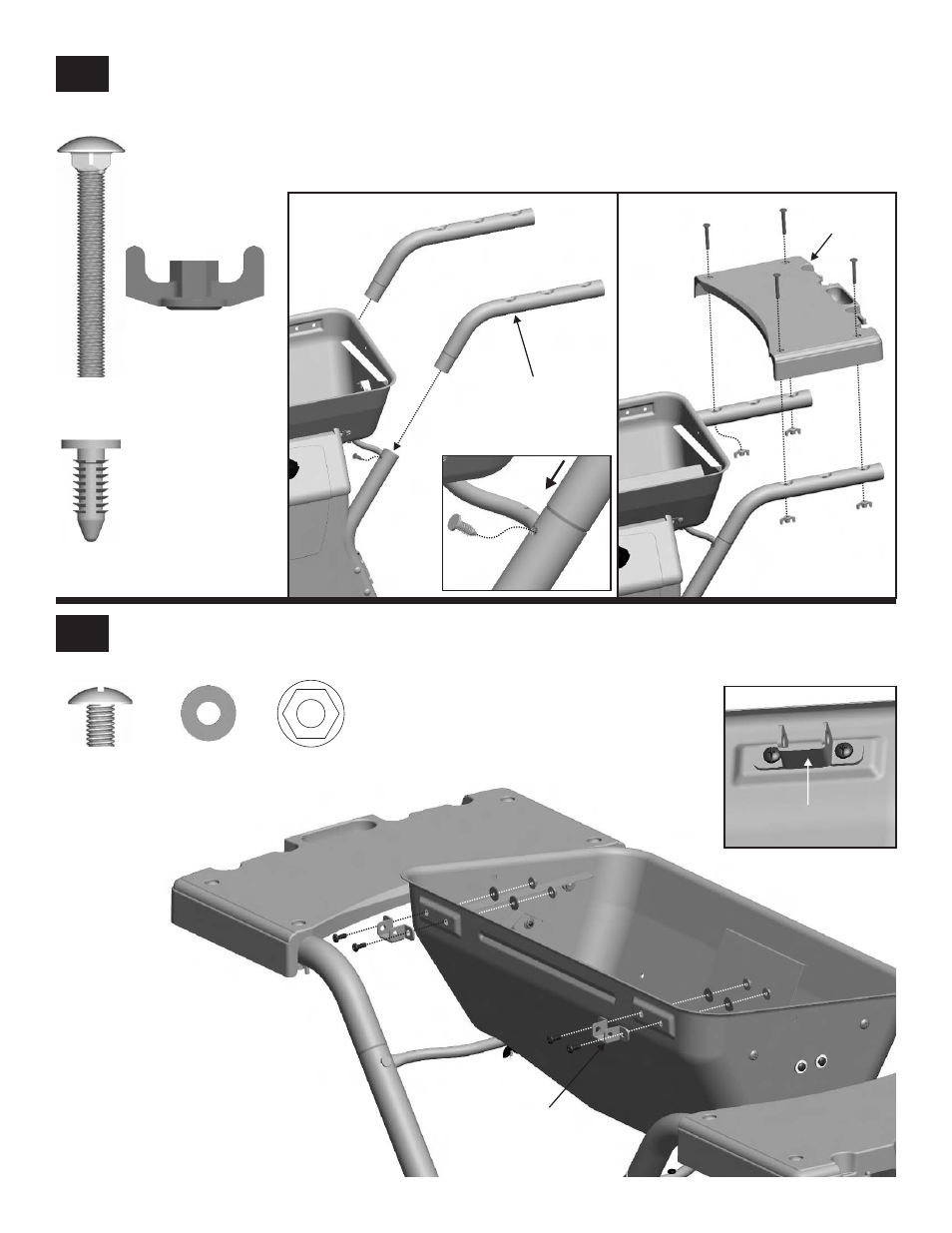

Slide shelf arms into leg assemblies and secure with one
push fastener per arm.
side shelves
four
1/4-20x2” carriage bolts and four 1/4-20 tee knobs per shelf.
Attach to shelf arms using
Shelf arm
80013181
Side shelf
80012749
8 Attach lower lid hinges to back of firebox using two
1/4-20x1/2” machine screws, fiber washers, and 1/4-20 Flange nuts
per hinge. The center flat portion of the hinge should be at the bottom (see inset below).
Lower lid hinge
80013194
Center flat portion
of hinge on bottom.
1/4-20x1/2”
Machine Screw
Qty. 4
Fiber Washer
Qty. 4
1/4-20
Flange Nut
Qty. 4
16 • 463666508
