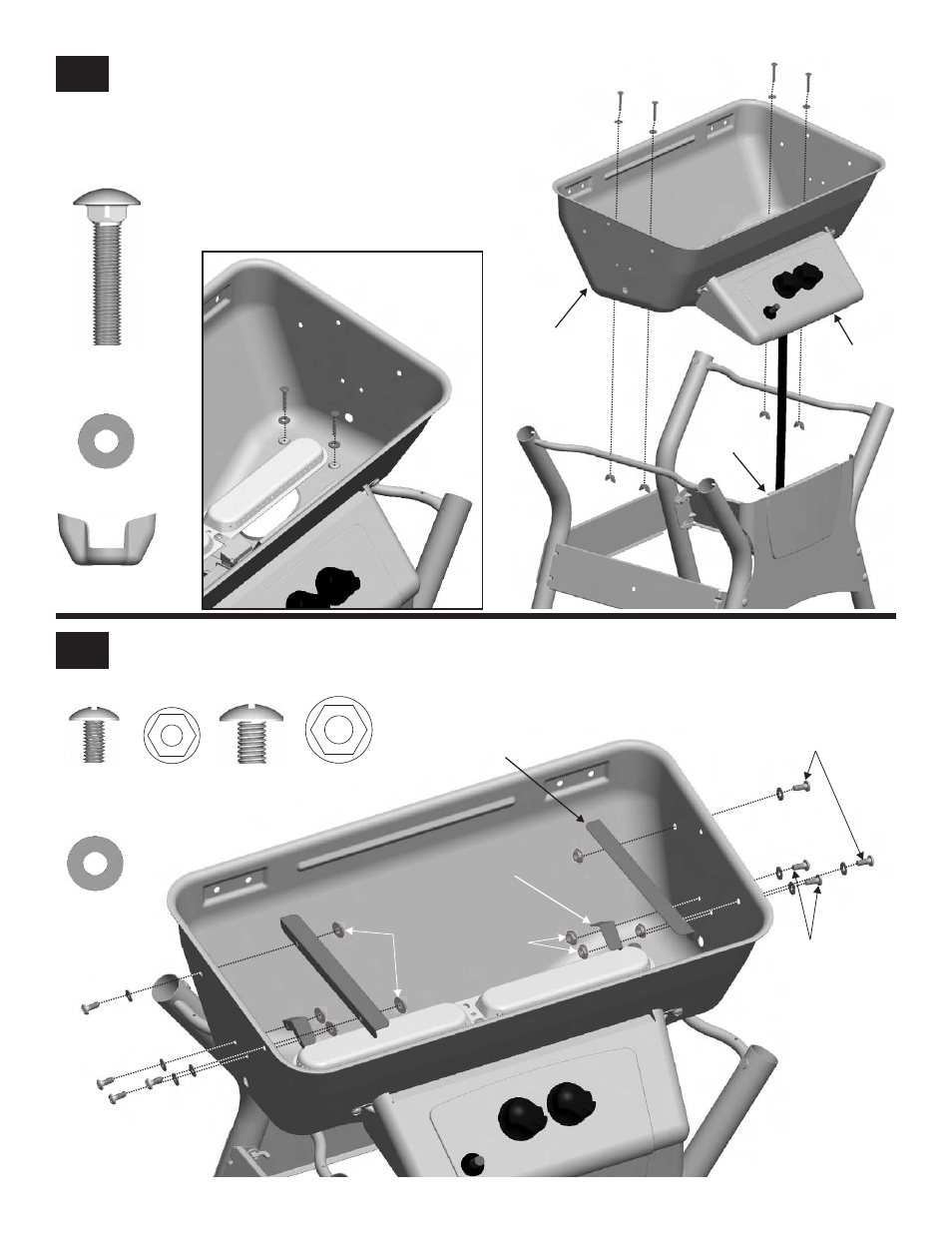

5 Place cart in the upright position. Place firebox assembly onto
cart, making sure that regulator hose hangs inside cart and
control panel overlaps front panel. Secure firebox to cart
using four
#10-24x1¼” carriage bolts, fiber washers and
#10-24 wing nuts.
#10-24x1¼”
Carriage Bolt
Qty. 4
#10-24 Wing Nut
Qty. 4
Firebox
assembly
80013174
Control
panel
80013176
Front
panel
80013189
Fiber Washer
Qty. 4
6 Attach the two vaporiser bar supports to the inside of the grill bottom using two
#10-24x1/2” machine screws, fiber
washers and #10-24 Flange nuts on each side. Next, attach the two cooking grate supports to the inside of the grill bottom
using two
1/4-20x1/2” machine screws, fiber washers and 1/4-20 Flange nuts on each side.
Cooking grate support
80013180
Vaporiser bar support
8001317
9
Fiber Washer
Qty. 8
#10-24x1/2”
Machine Screw
Qty. 4
1/4-20x1/2”
Machine Screw
Qty. 4
#10-24
Flange Nut
Qty. 4
1/4-20
Flange Nut
Qty. 4
1/4-20x1/2”
Machine Screw
#10-24x1/2”
Machine Screw
1/4-20 Flange Nut
#10-24
Flange Nut
