Removing the Hard Drive
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove battery
3. To remove the hard drive:

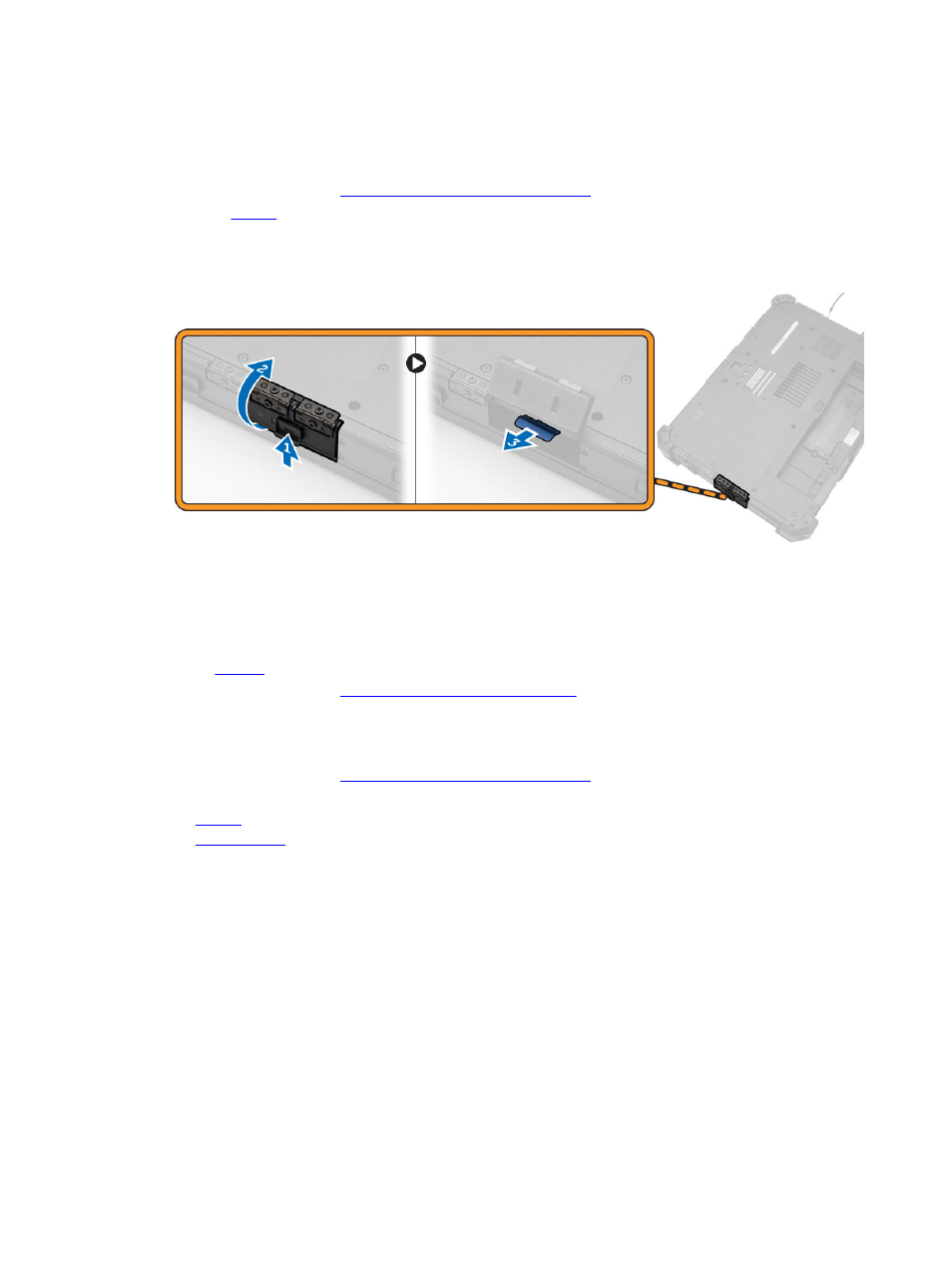

a. Unlock the hard-drive press latch door and lift it upwards to open it [1,2].
b. Pull the tab to pull the hard drive out of the computer [3].
Installing the Hard Drive
1. Slide the hard drive into its place on the computer.
2. Close the hard-drive bay press latch door.
3. Install
battery.
4. Follow the procedures in After Working Inside Your computer .
Removing the System Fan
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a. battery
b. bottom cover
3. To remove the system fan:
a. Disconnect the system fan cable from the system board [1].
b. Remove the screws that secure the system fan to the computer chassis [2].
c. Lift and remove the system fan from the computer chassis [3].
